Alternator & Regulator - MITSUBISHI: Overhaul

NOTE: A ring is used to lock outer bearing race in alternator's rear cover. It may be necessary to heat bearing housing to remove cover. Use 200-watt soldering iron to heat housing. DO NOT use heat gun, as it may damage diode. For exploded view of alternator, see Fig 1.

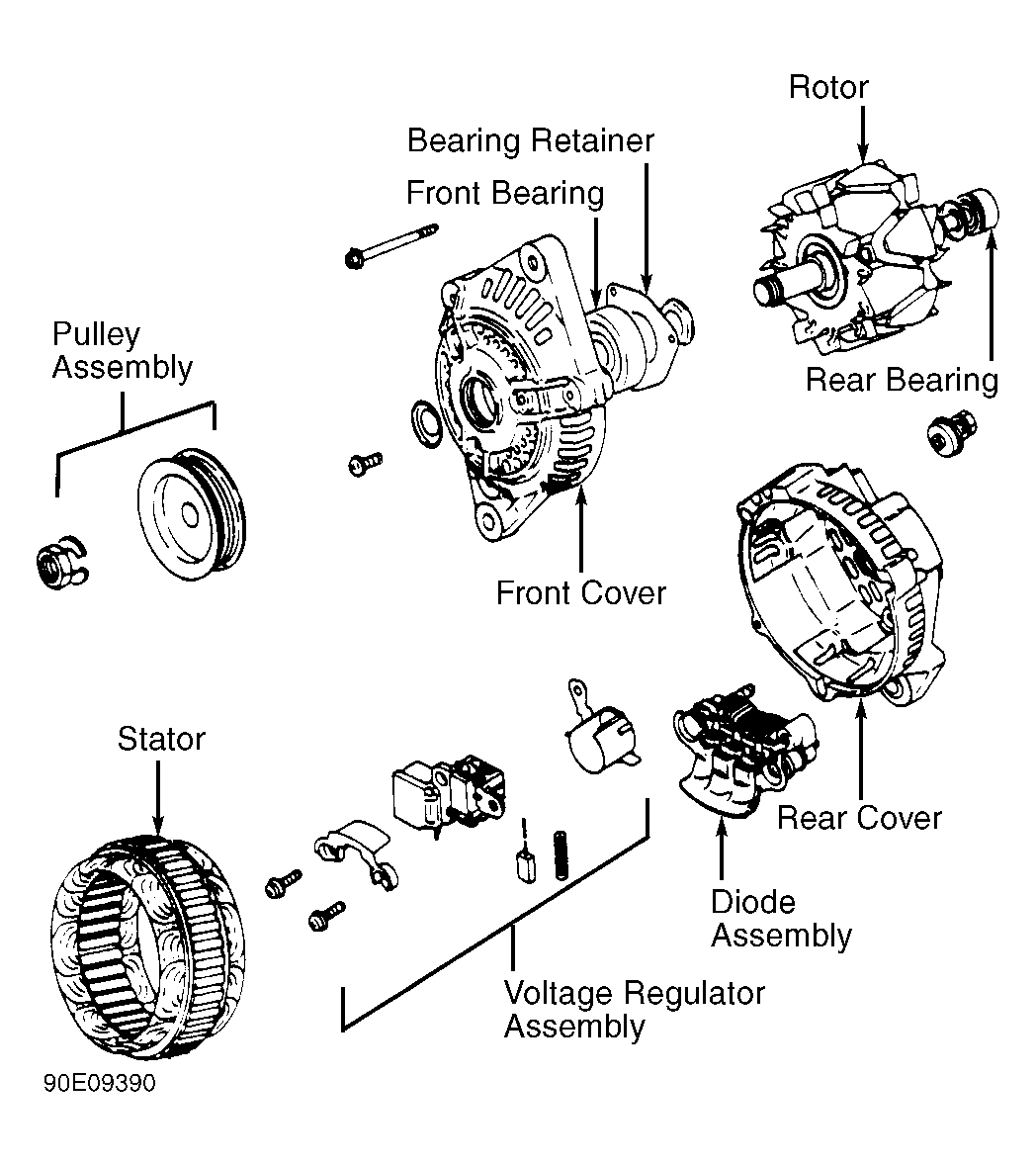

Fig 1: Exploded View Of Typical Mitsubishi Alternator

Courtesy of NISSAN MOTOR CO., U.S.A.
