Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

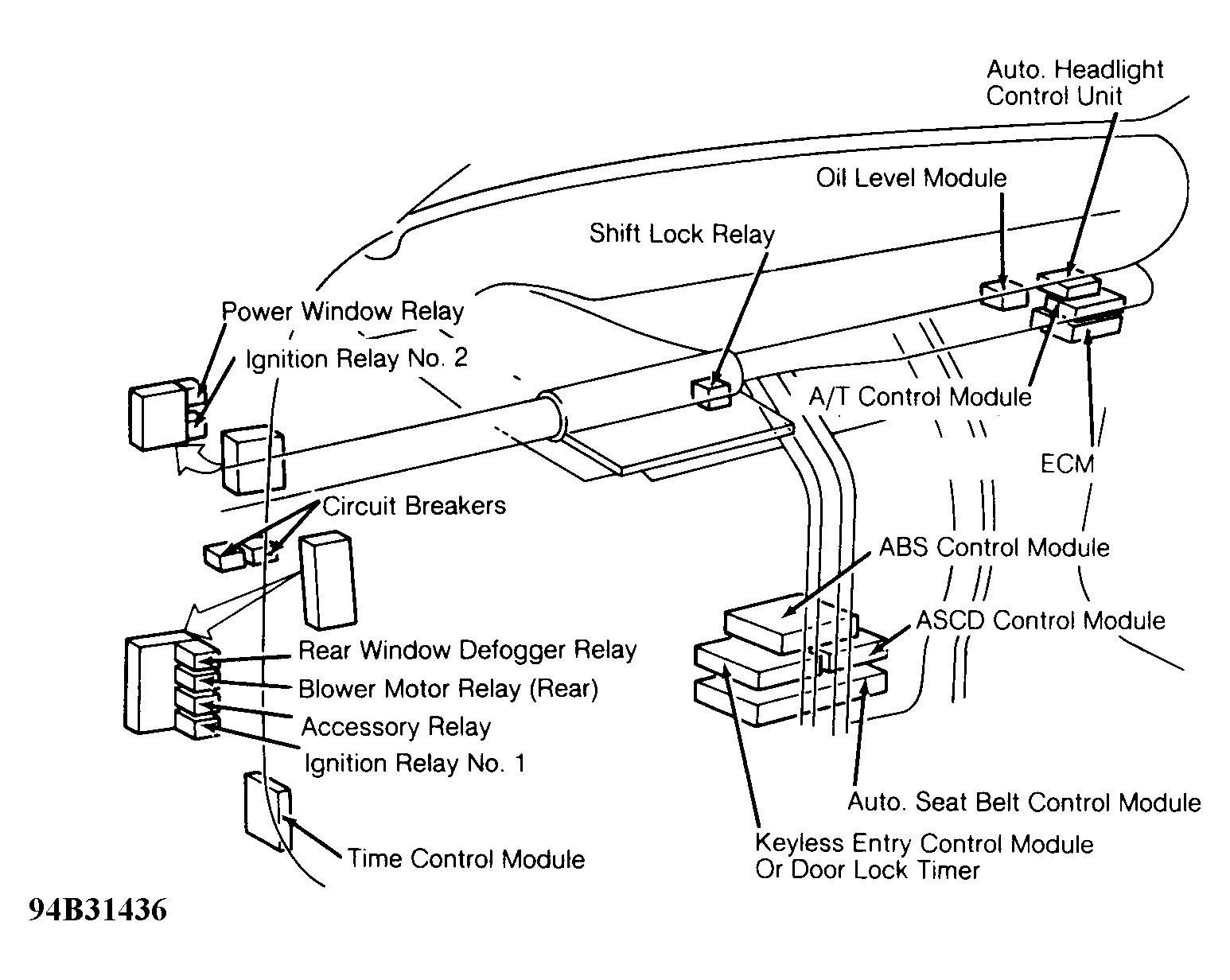

Circuit Breakers (2) Behind left side of dash. See Figure .
Fuse/Relay Block Under left side of dash.

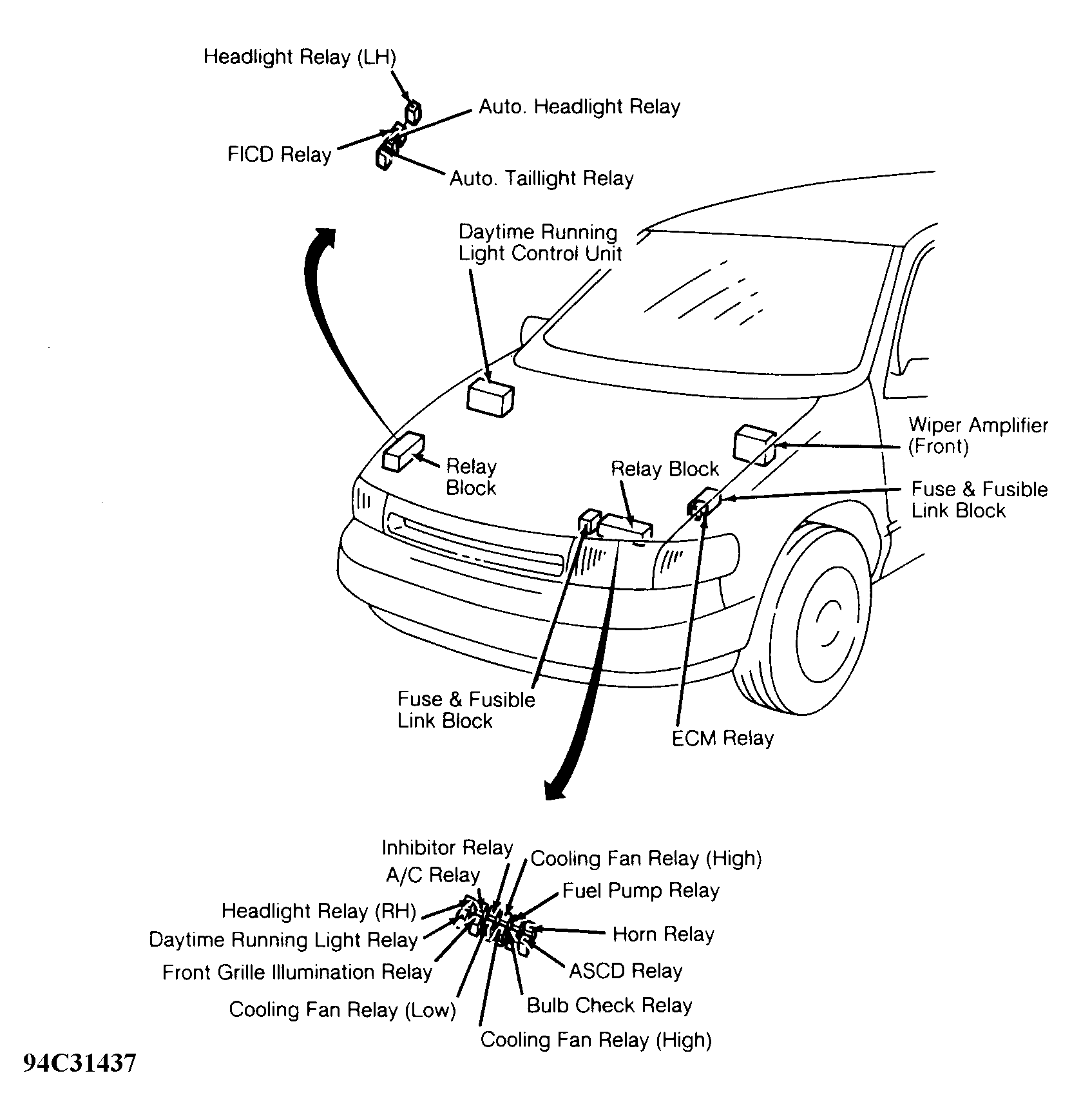

Fusible Link & Fuse Blocks (2) In left front of engine compartment. See Figure .
Relay Blocks

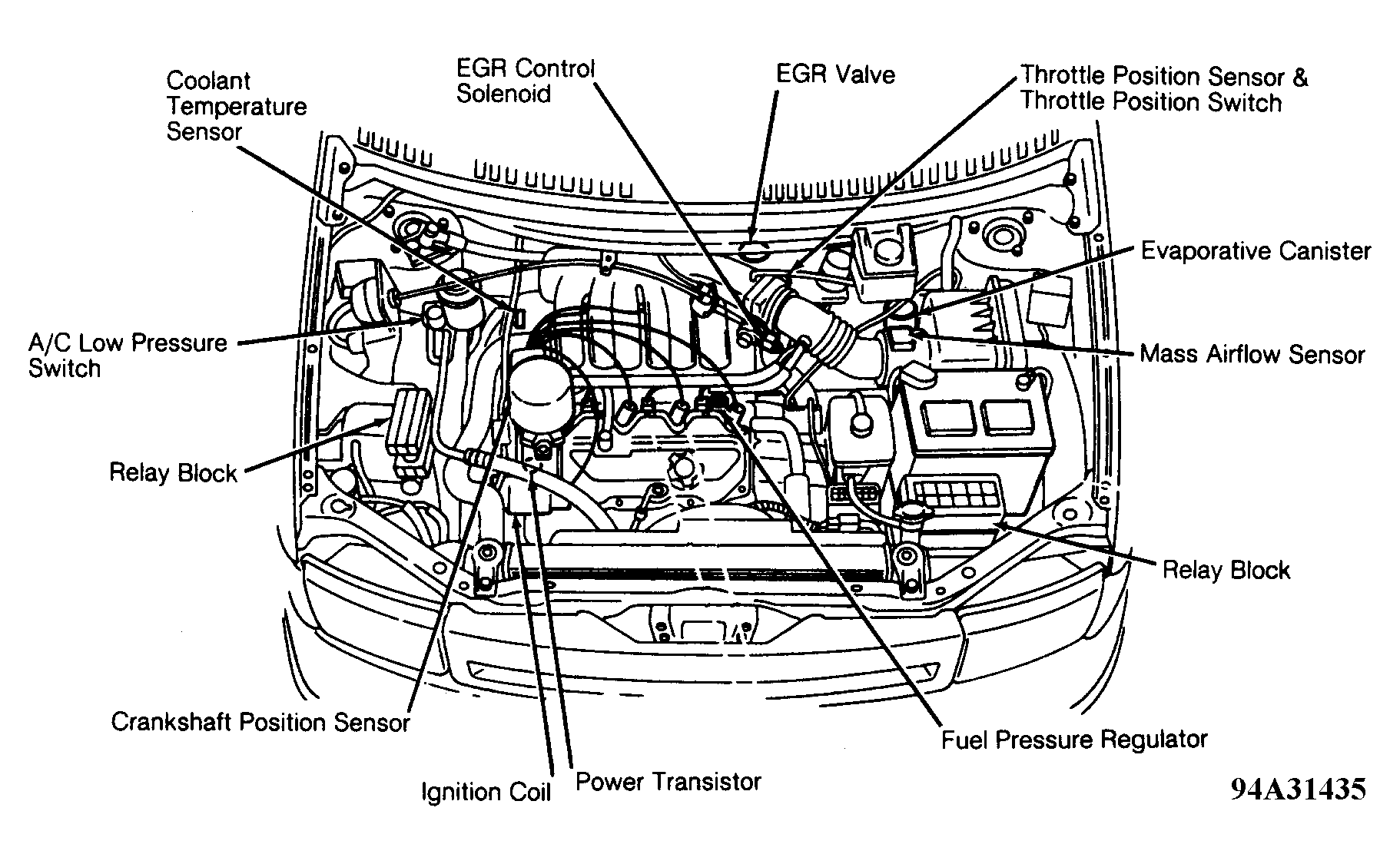

Engine Compartment On right and left front side of engine compartment. See Figure .
Graphic No. 2 On right and left front side of engine compartment. See Figure .
