Component Locations

COMPONENT LOCATIONS

Component	Location
Body Ground M5	Behind left side of dash. See Fig 1 .
Body Ground M75	Behind right side of dash. See Fig 1 .
Circuit Breaker-2	Under left side of dash. See Fig 2 .

Fig 1: Locating Body Grounds (M5 & M75)

G00193018

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Locating Circuit Breakers

G94B31436

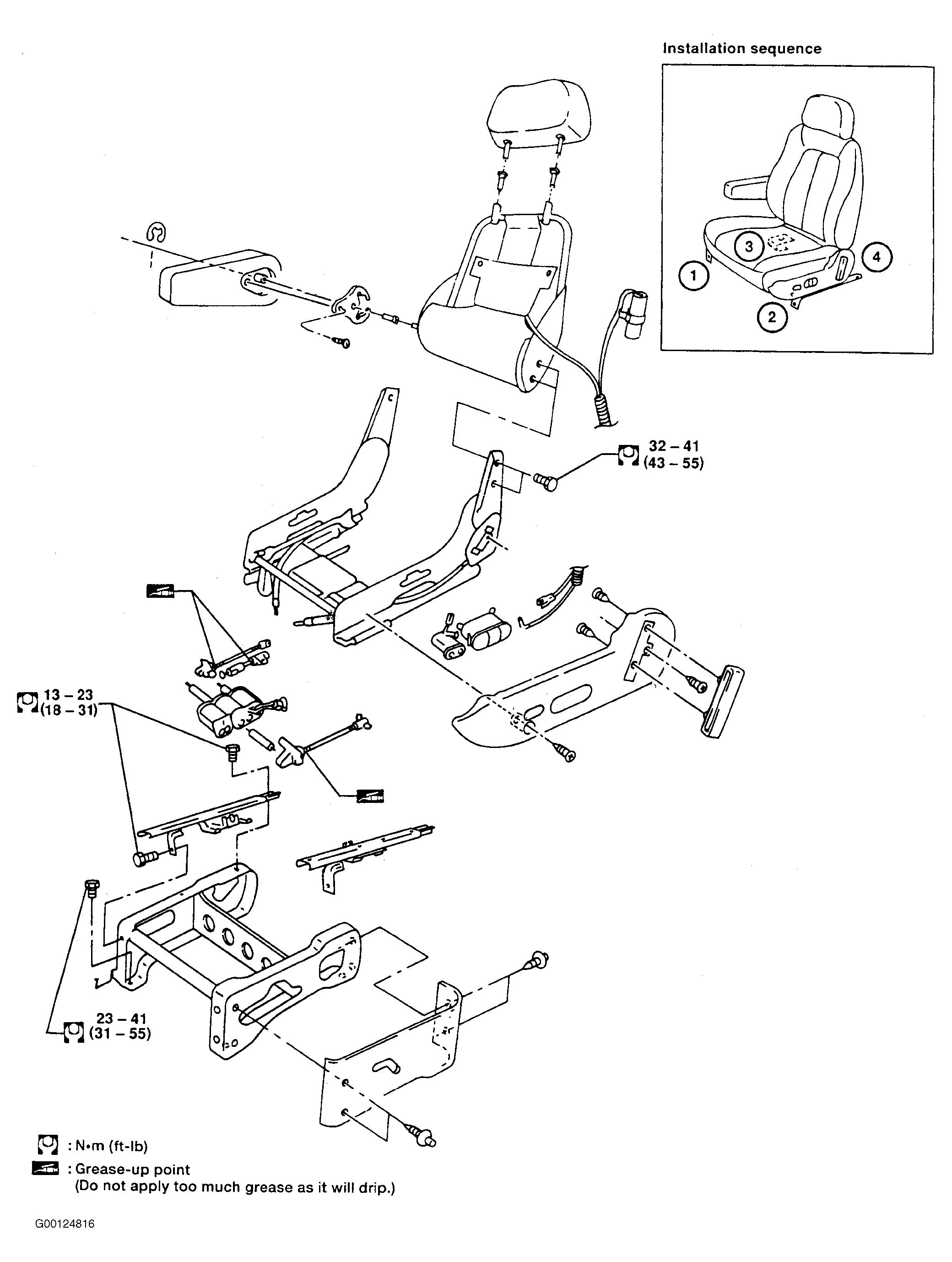

Fig 3: Exploded View Of Power Seat

G00124816

Courtesy of NISSAN MOTOR CO., U.S.A.
