Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/T Control Unit | Behind console, above ECCS control unit. See Figure . |

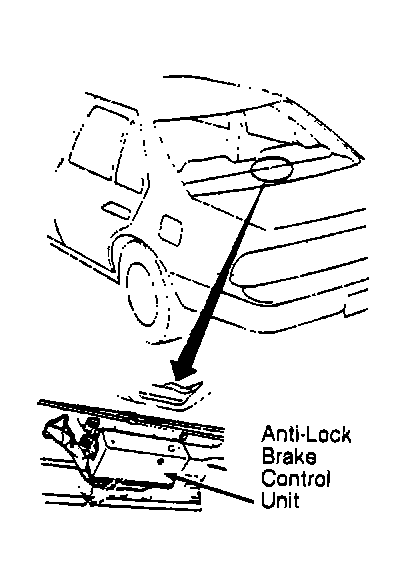

| Anti-Lock Brake Control Unit | Center of luggage compartment, below rear deck surface. See Figure . |
| Automatic Seat Belt Control Unit | Behind center console. See Figure . |
| Cruise Control Unit | Behind instrument panel, to right of steering column. See Figure . |

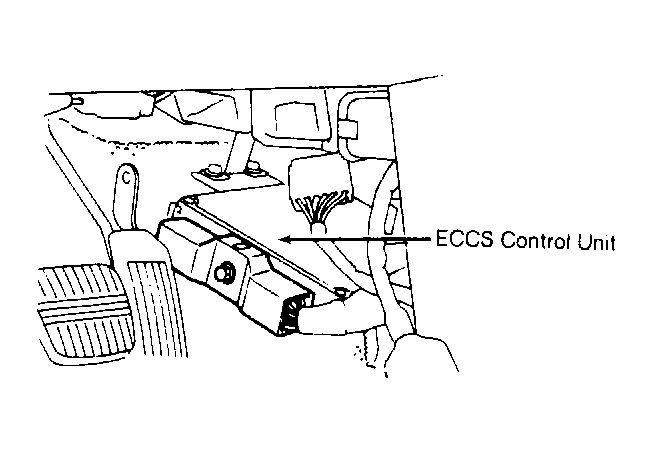

| ECCS Control Unit | Behind console, below instrument panel. See Figure & Figure . |
| Shift Lock Control Unit (A/T) | Below left side of instrument panel. See Figure . |
| Time Control Unit | Behind left kick panel. See Figure . |
