Radiator (Cooling) Fan Control Chart

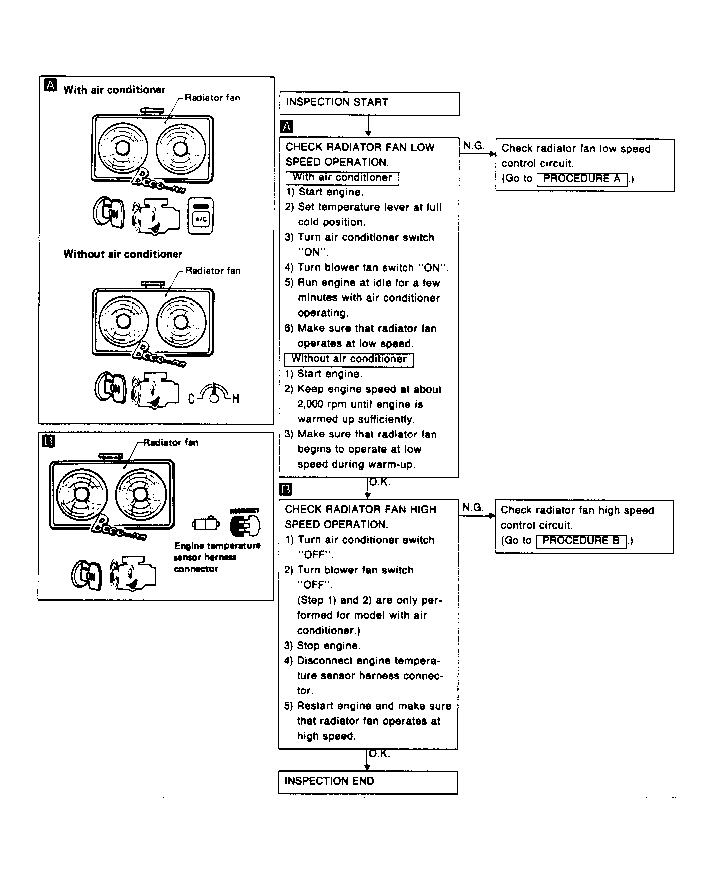

Fig 1: Radiator (Cooling) Fan Control Diagnostic Chart (Start)
G90J20700Courtesy of NISSAN MOTOR CO., U.S.A.

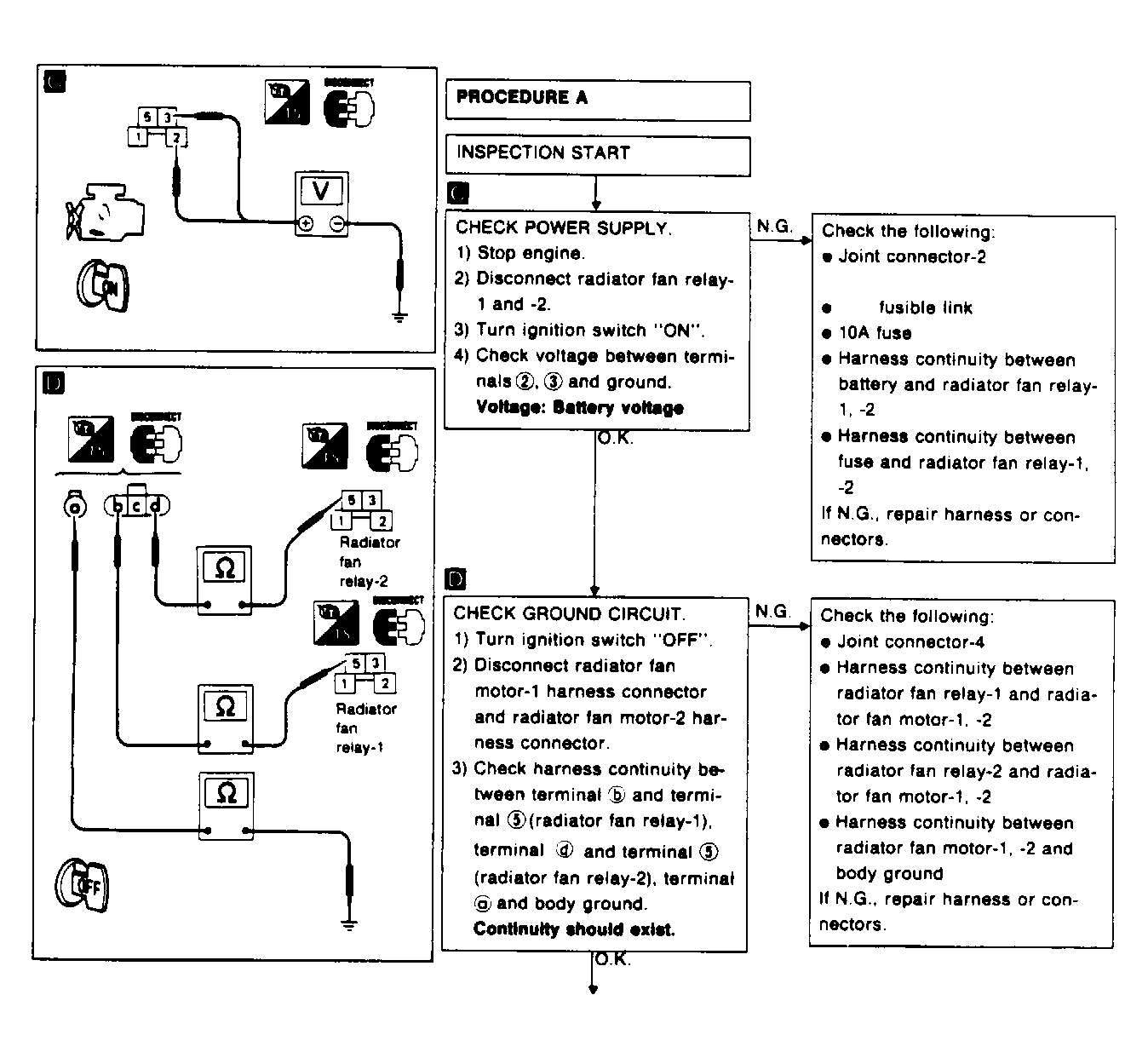

Fig 2: Radiator (Cooling) Fan Control Diagnostic Chart Procedure A, 1 of 2
G90A20701

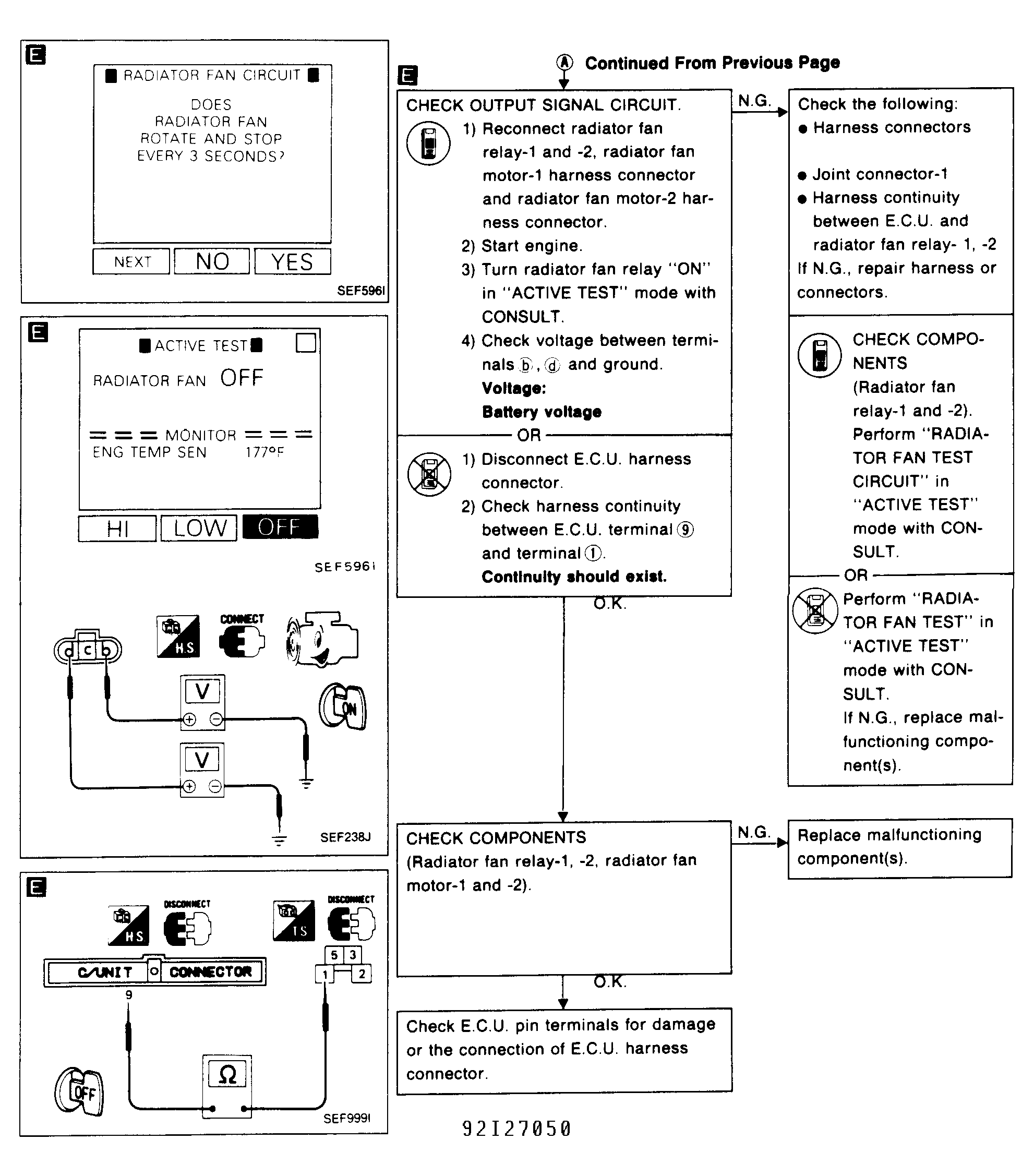

Fig 3: Radiator (Cooling) Fan Control Diagnostic Chart Procedure A, 2 of 2
G92I27050

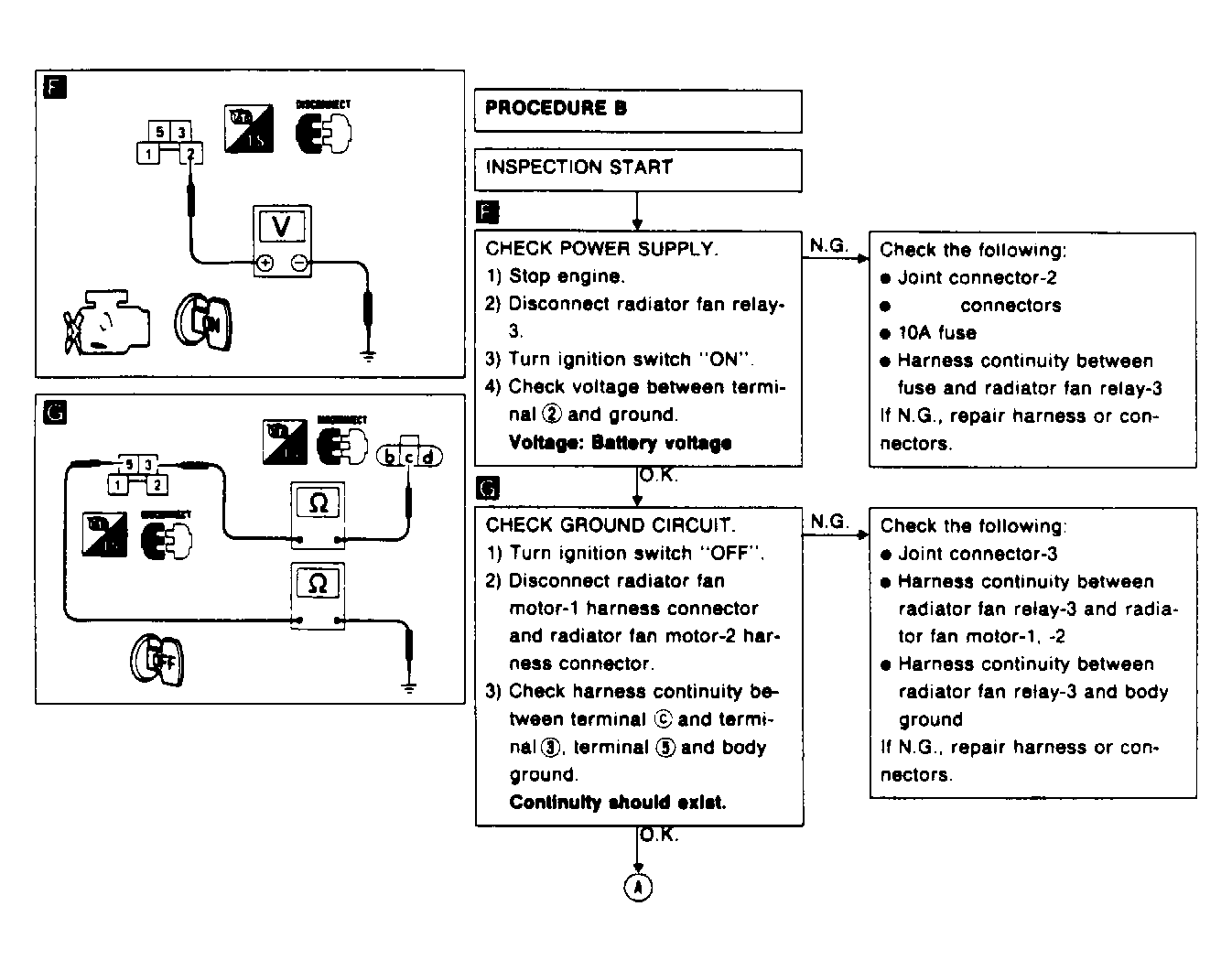

Fig 4: Radiator (Cooling) Fan Control Diagnostic Chart Procedure B, 1 of 2
G90C20703

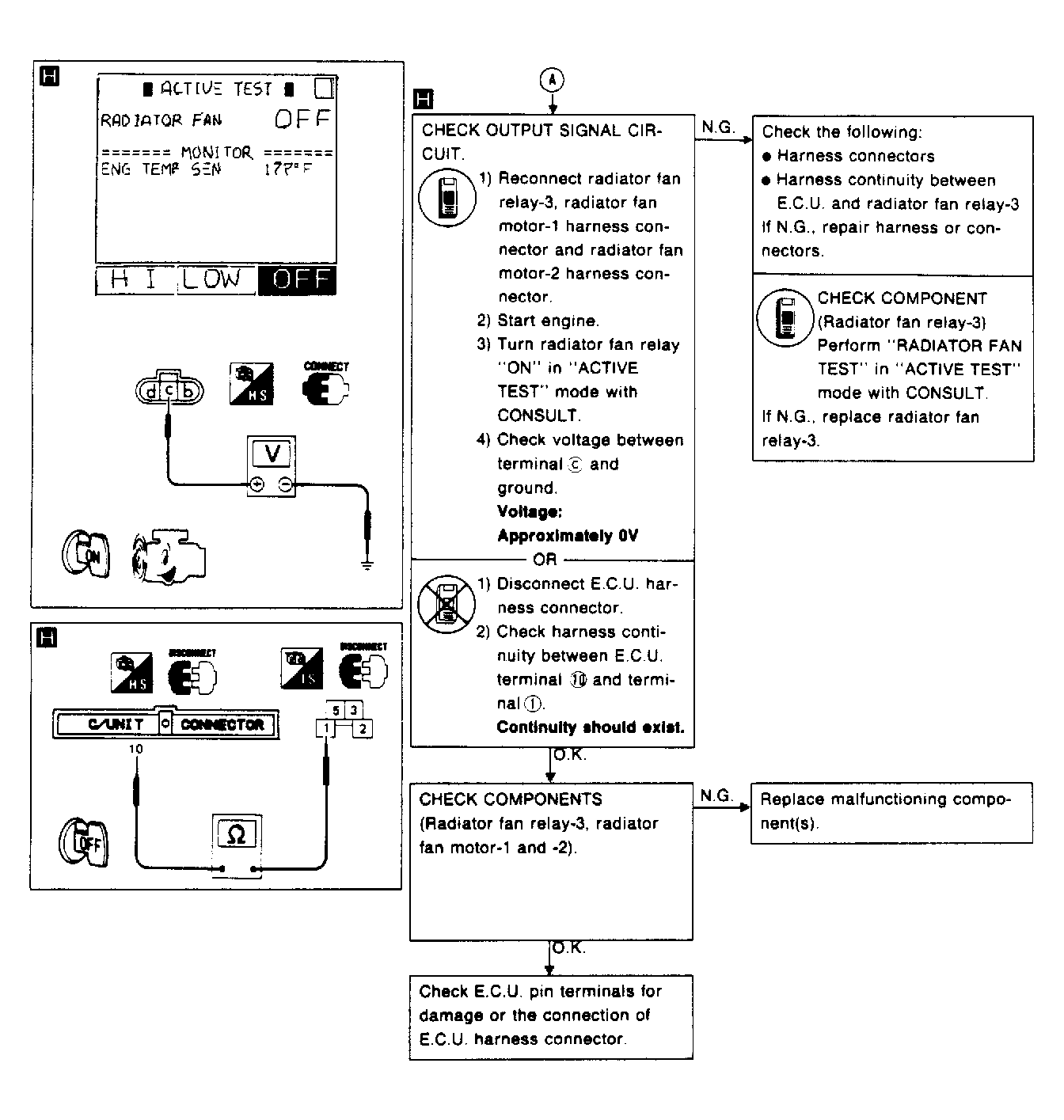

Fig 5: Radiator (Cooling) Fan Control Diagnostic Chart Procedure B, 2 of 2
G90D20704
