Pressure Regulator Vacuum Relief Chart
Pressure Regulator Vacuum Relief Chart

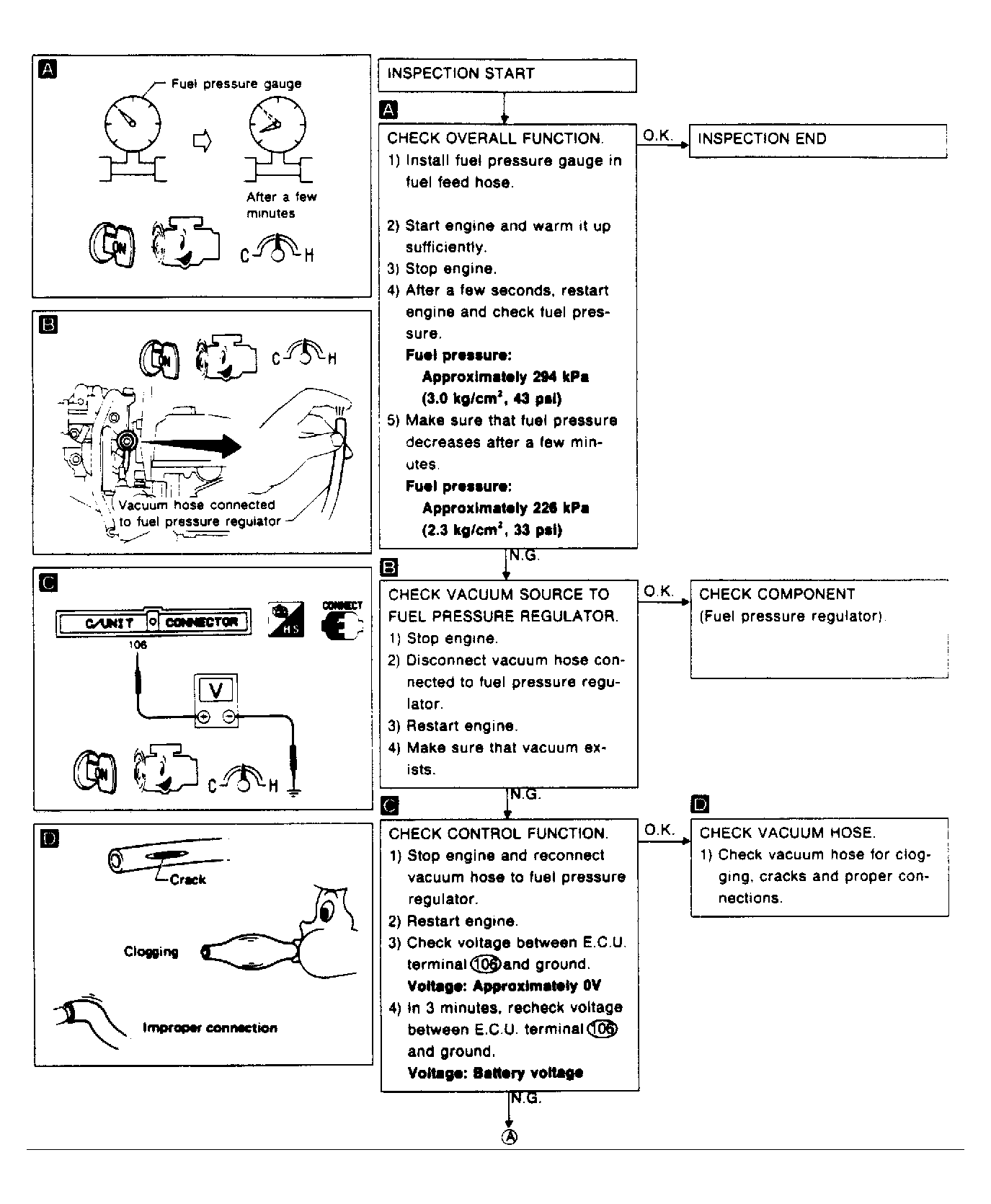

Fig 1: Pressure Regulator Vacuum Relief Diagnostic Chart (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

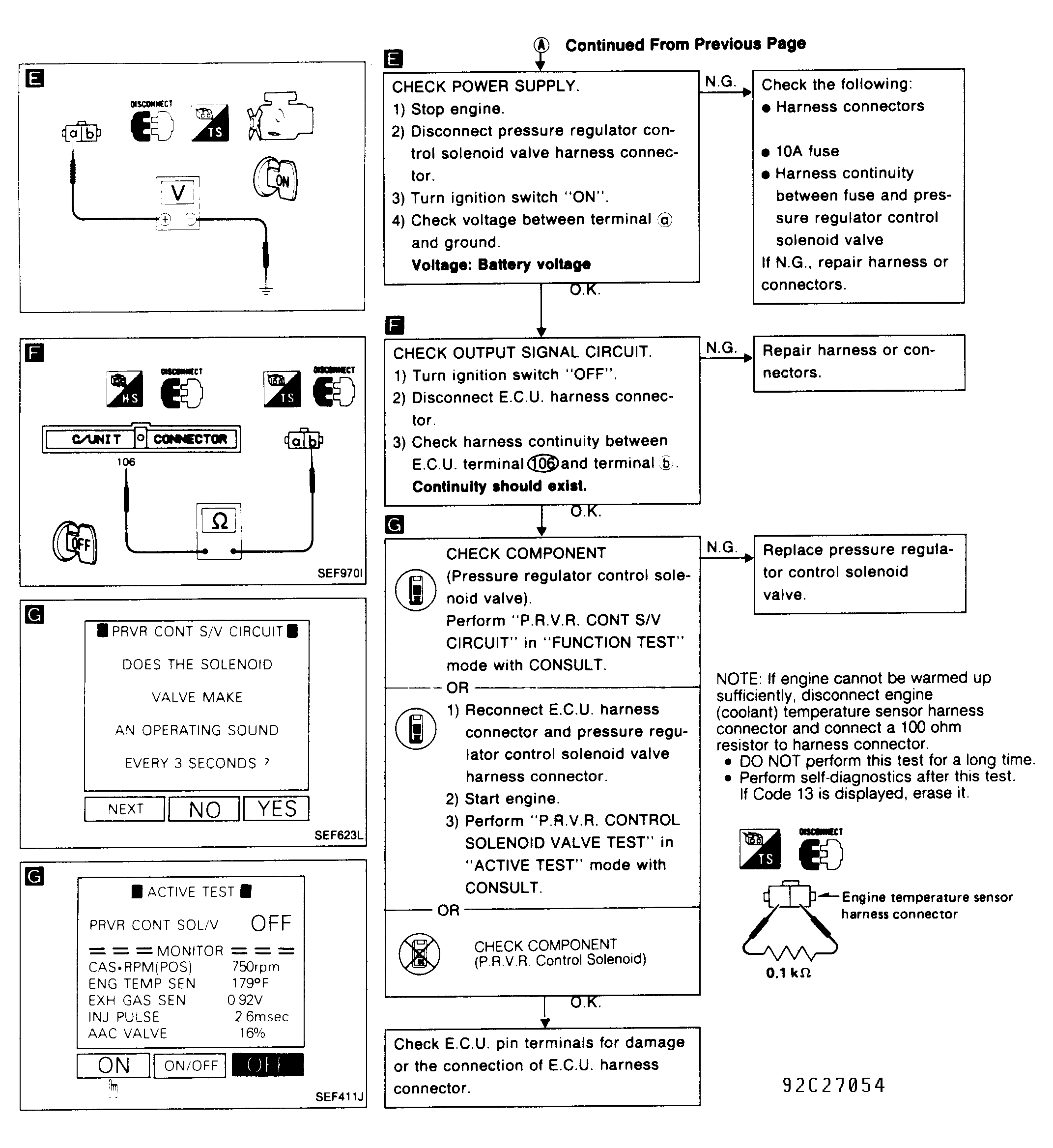

Fig 2: Pressure Regulator Vacuum Relief Diagnostic Chart (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
