Power Steering Oil Pressure Switch Chart

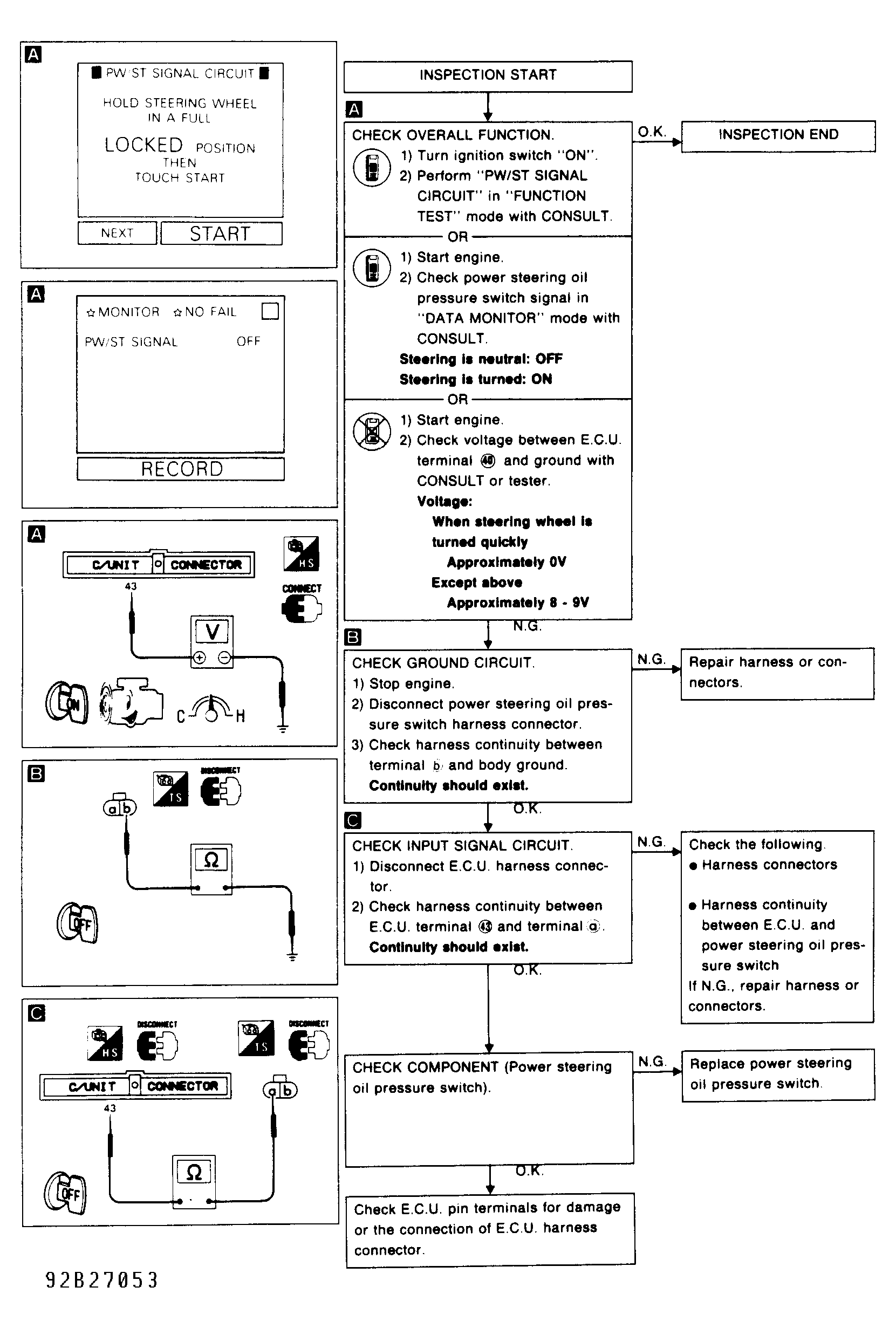

Fig 1: Power Steering Oil Pressure Switch Diagnostic Chart

G92B27053

Courtesy of NISSAN MOTOR CO., U.S.A.
