Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Body Ground M40 | Behind right side of dash, near glove box |
| Body Ground M120 | Left rear roof pillar, near rear window |
| Circuit Breaker 1 | Behind fuse block |

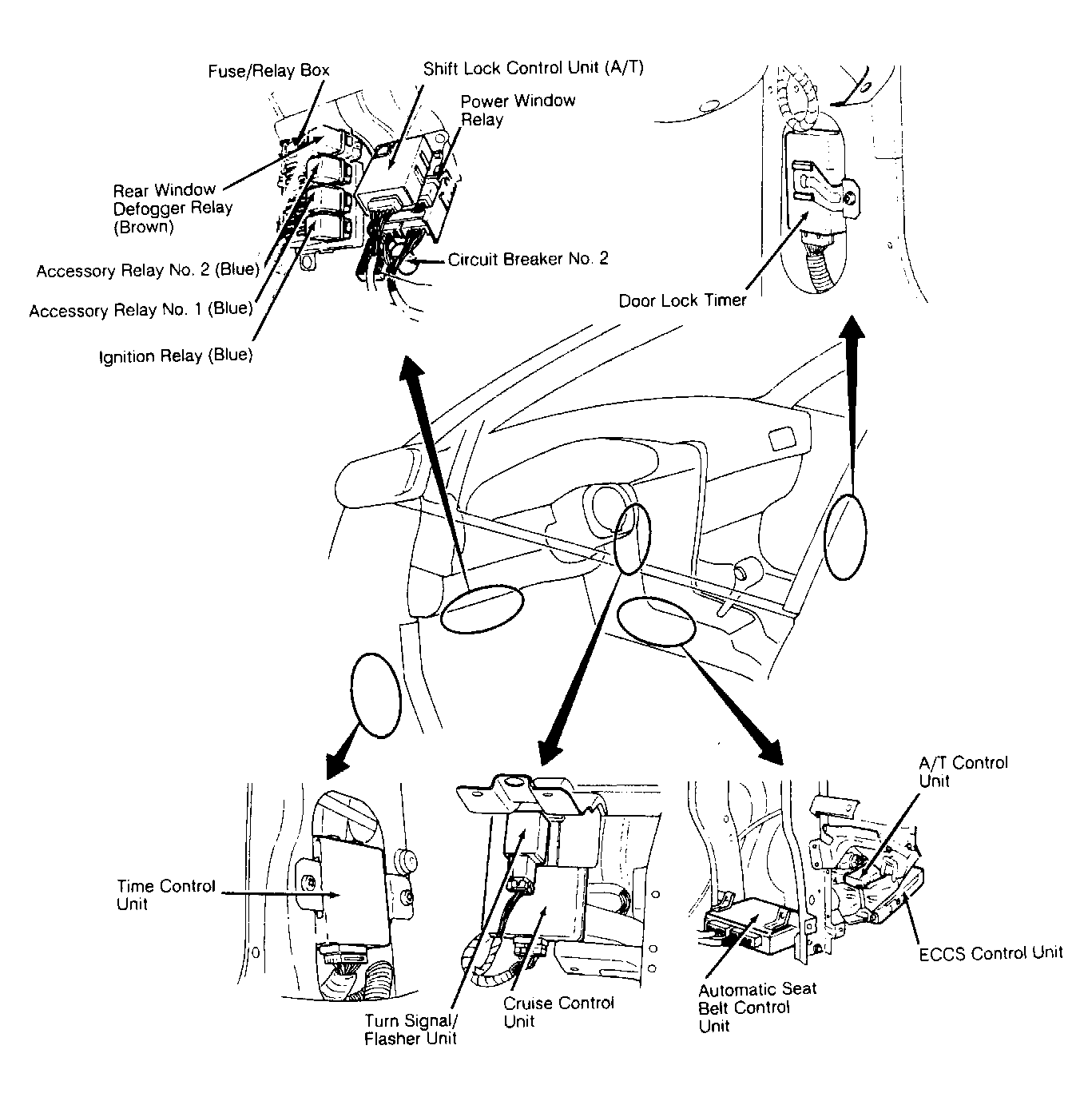

| Fuse Block | Under left side of dash. See Fig 1 . |
| Power Window Amplifier | In driver's door, near armrest |
| Power Window Relay | Next to fuse block. See Fig 1 . |
