Instrument Cluster

NOTE: Always disconnect negative battery terminal before removing instrument cluster. On models equipped with Head-Up Display (HUD), cover HUD's reflective surface with cloth or vinyl sheet before removing instrument cluster.

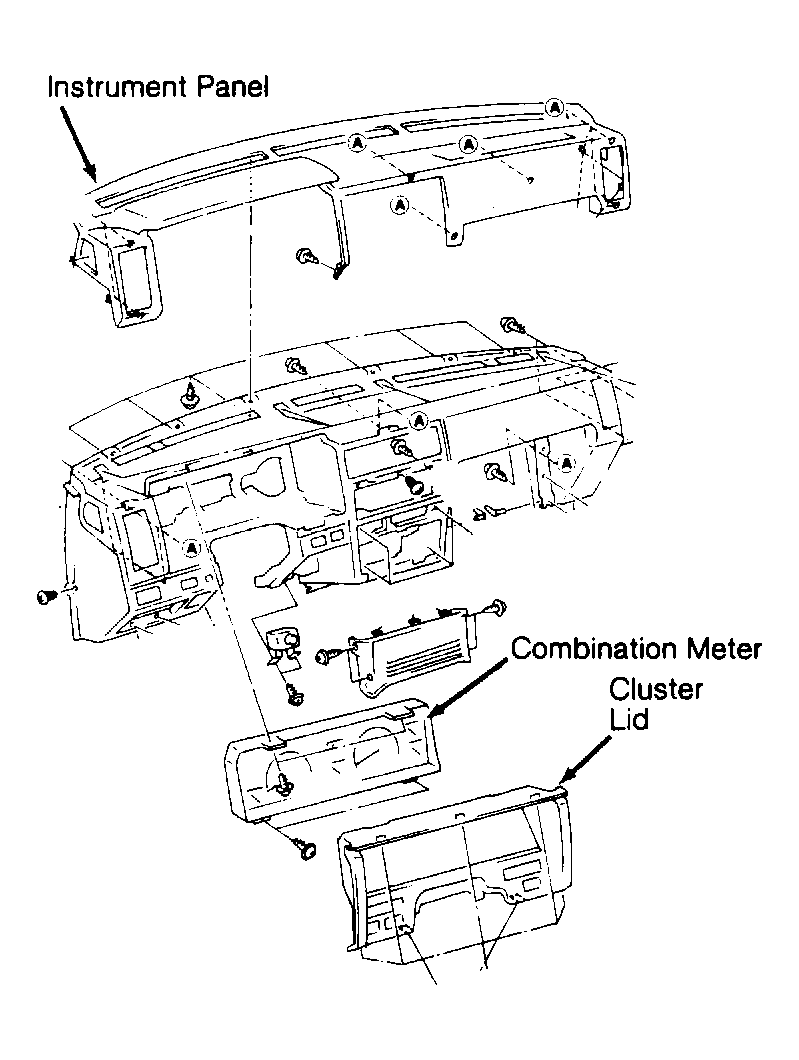

Fig 1: Exploded View of Instrument Panel (Maxima)

Courtesy of NISSAN MOTOR CO., U.S.A.

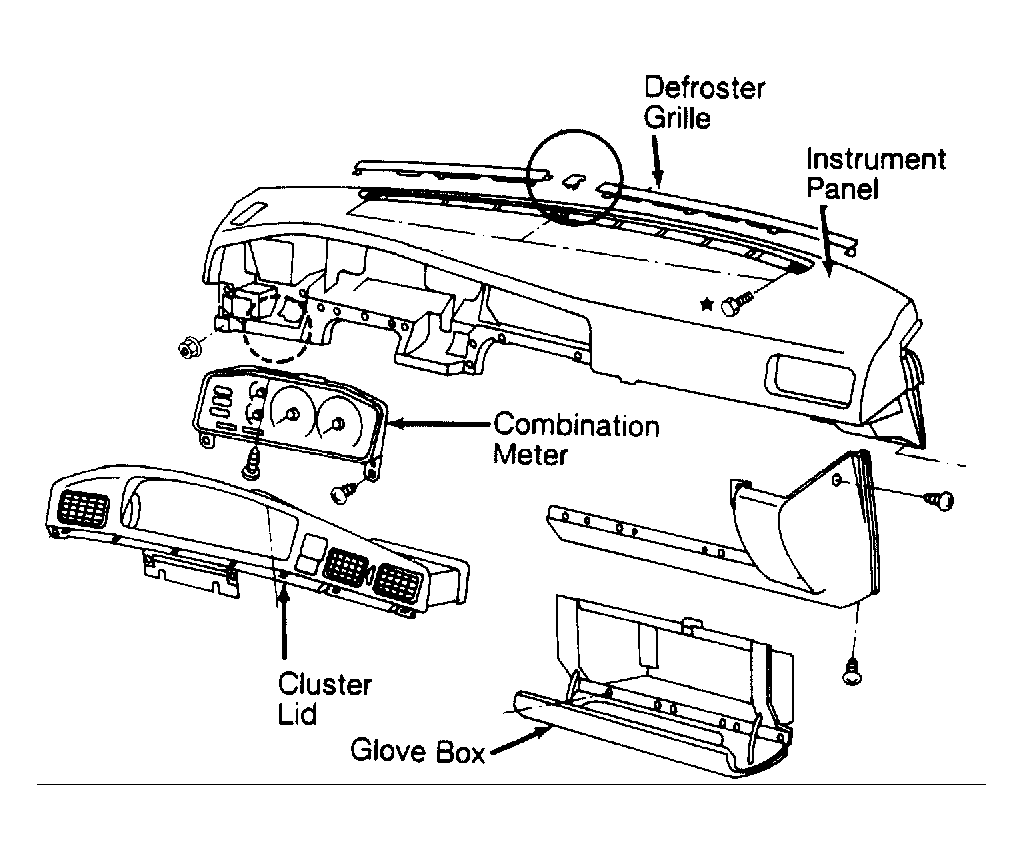

Fig 2: Exploded View of Instrument Panel (NX & Sentra)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Exploded View of Instrument Panel (Pathfinder & Pickup)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Exploded View of Instrument Panel (Stanza)

Courtesy of NISSAN MOTOR CO., U.S.A.

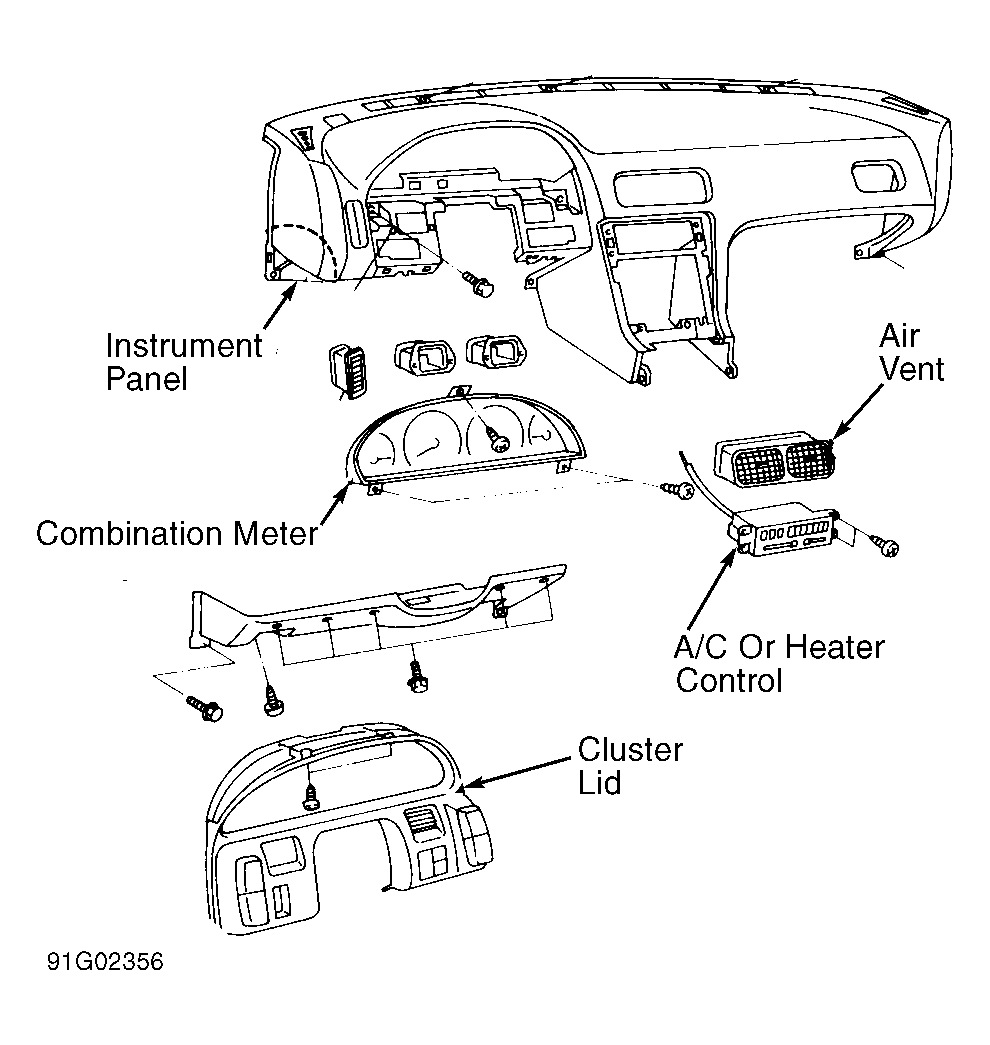

Fig 5: Exploded View of Instrument Panel (240SX)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Exploded View of Instrument Panel (300ZX)

Courtesy of NISSAN MOTOR CO., U.S.A.
