Removal & Installation

Removal and installation procedures are not provided by the manufacturer. To aid in removal and installation of door components, refer to appropriate illustration. See Fig 1 -Fig 5 .

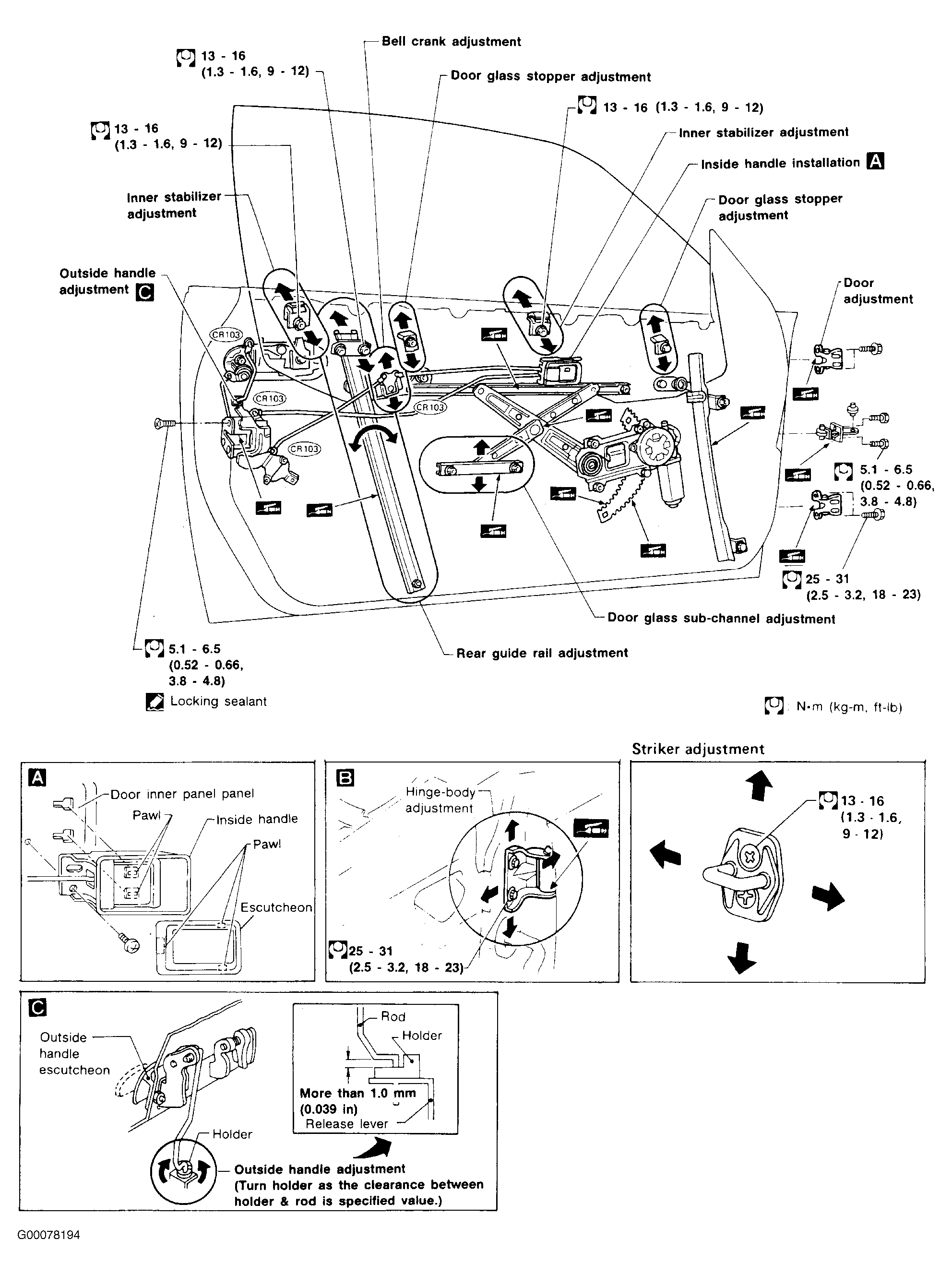

Fig 1: Exploded View Of Front Door (Coupe)

Courtesy of NISSAN MOTOR CO., U.S.A.

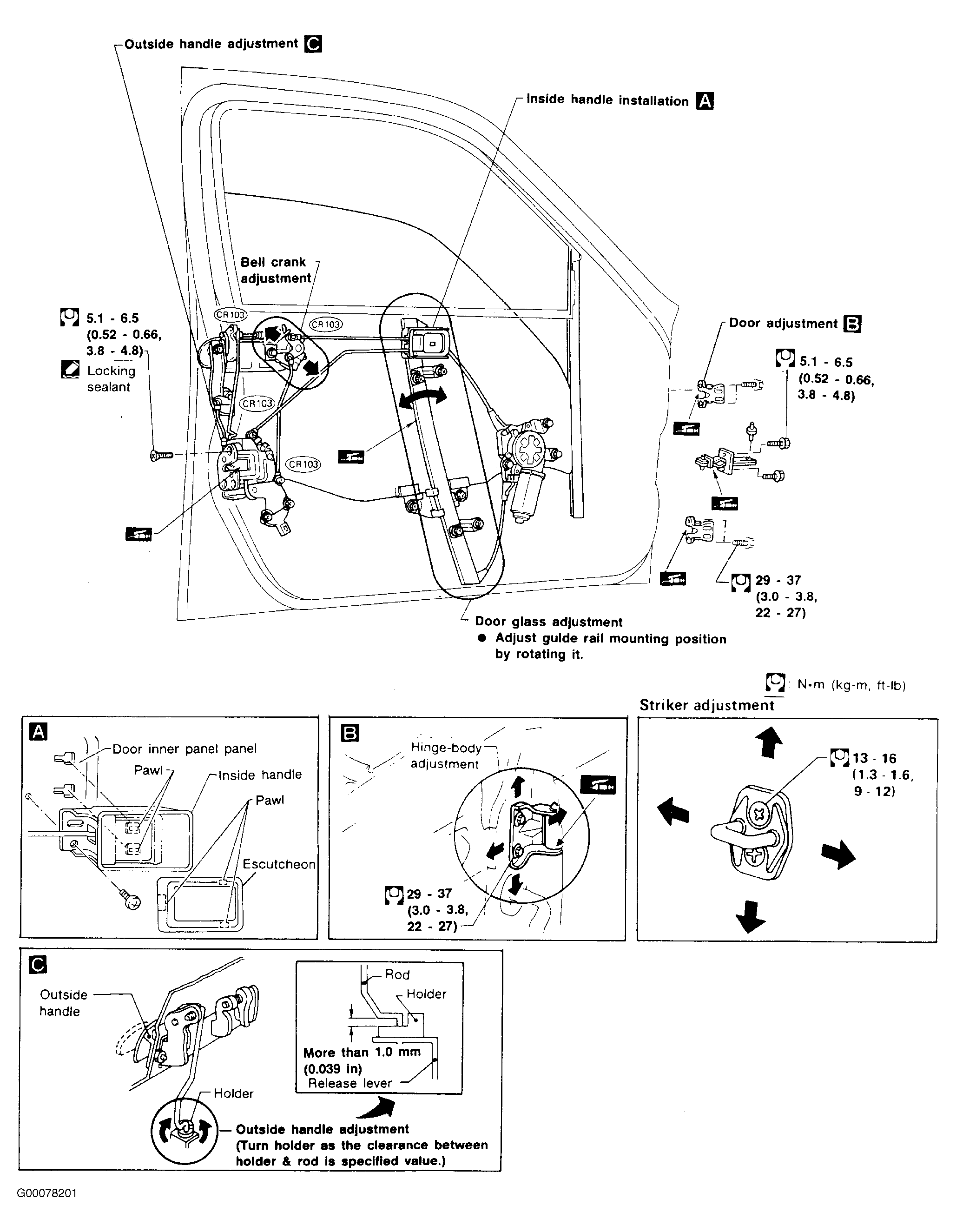

Fig 2: Exploded View Of Front Door (Sedan)

Courtesy of NISSAN MOTOR CO., U.S.A.

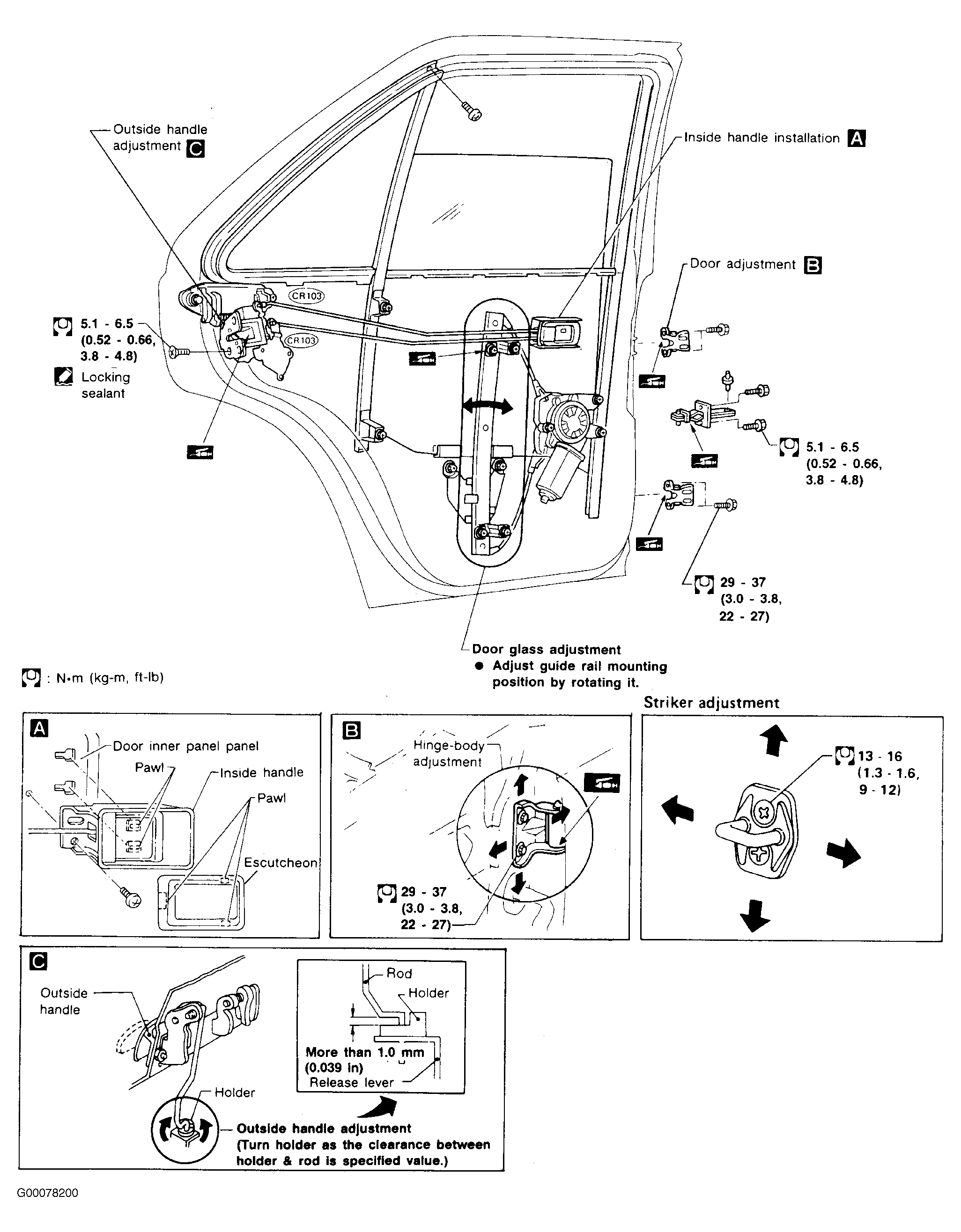

Fig 3: Exploded View Of Rear Door (Sedan)

Courtesy of NISSAN MOTOR CO., U.S.A.

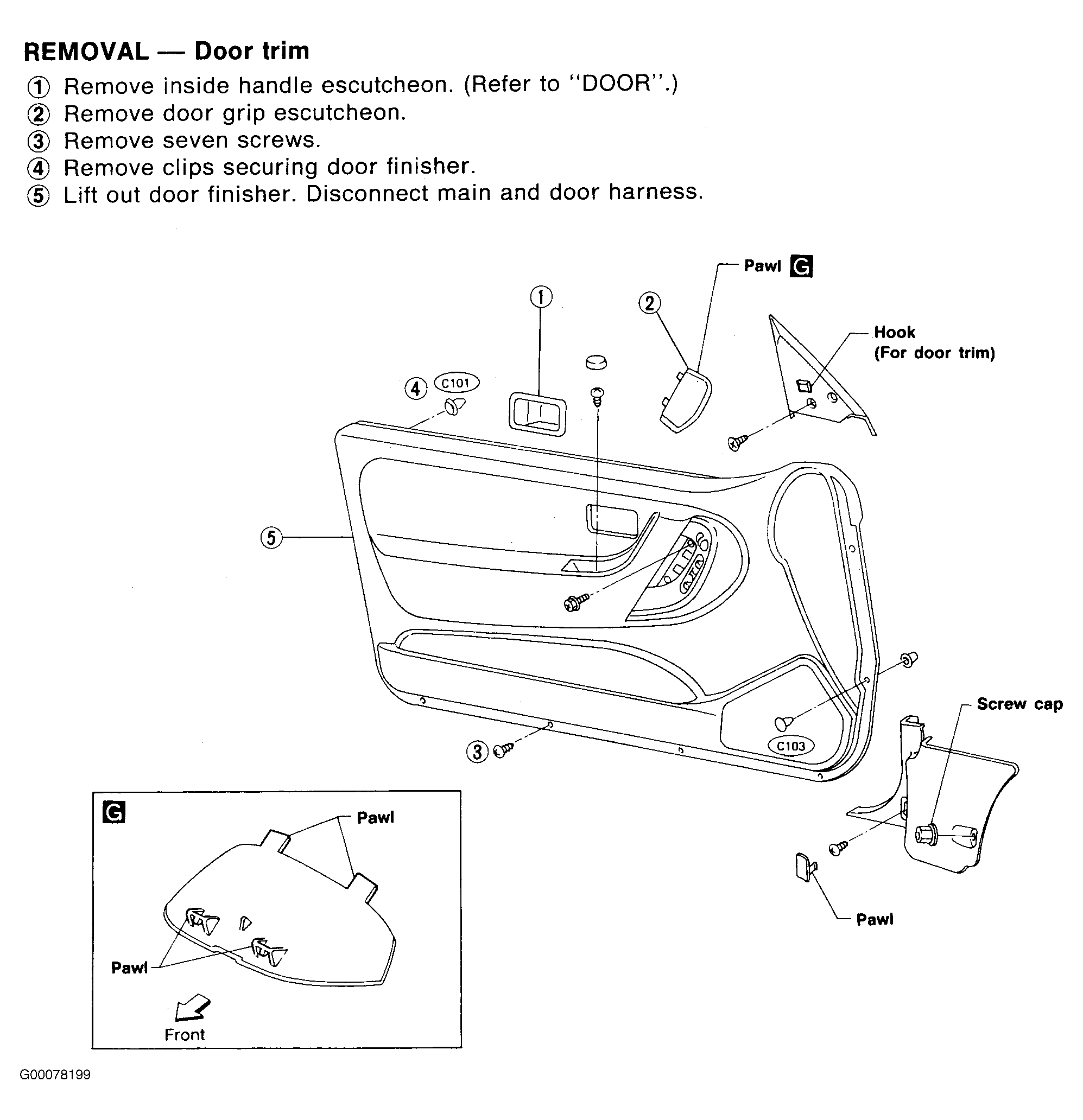

Fig 4: Exploded View Of Door Trim Panel (Coupe)

Courtesy of NISSAN MOTOR CO., U.S.A.

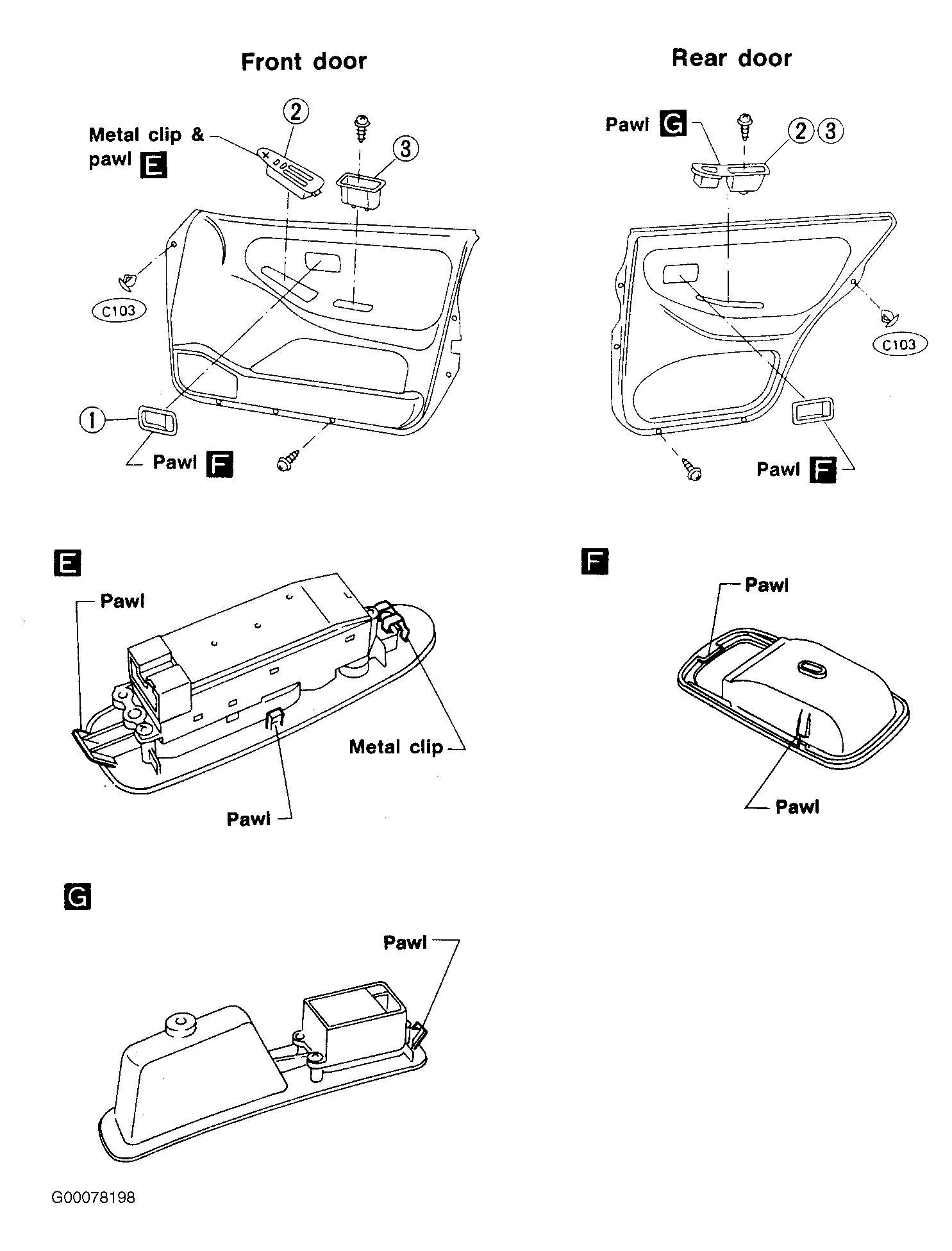

Fig 5: Exploded View Of Door Trim Panel (Sedan)

Courtesy of NISSAN MOTOR CO., U.S.A.
