Lock Knob Switch

For lock knob test procedure, see Fig 1 .

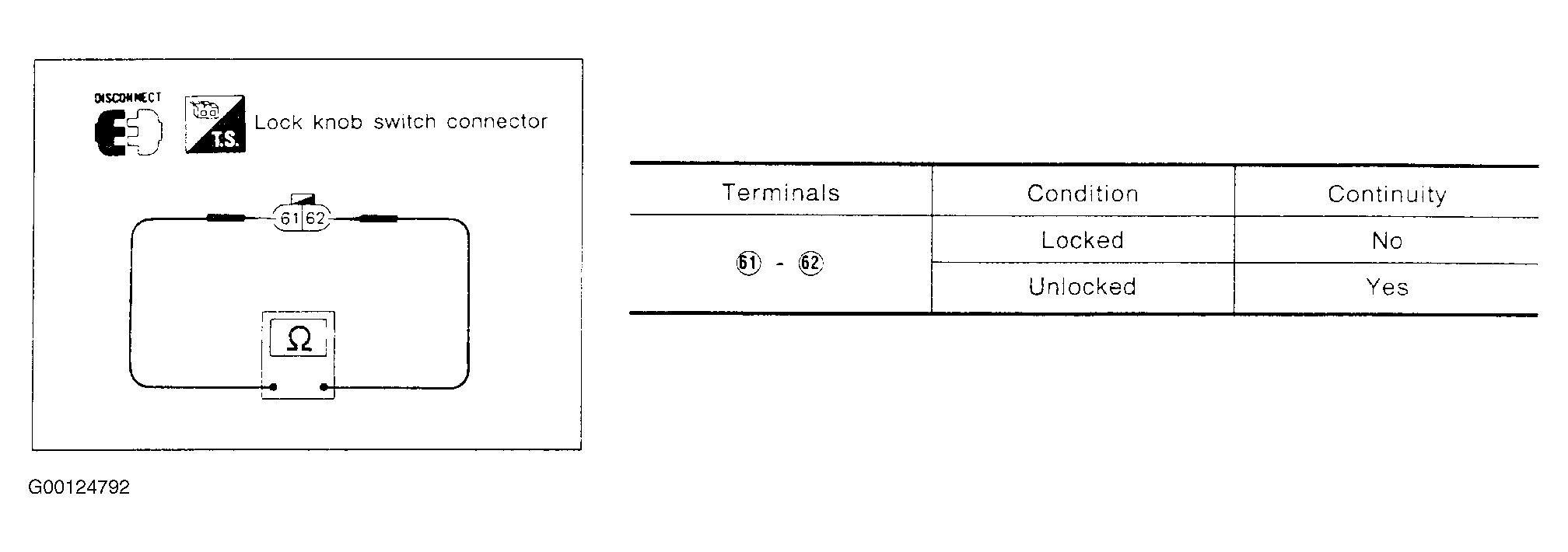

Fig 1: Testing Lock Knob Switch
G00124792Courtesy of NISSAN MOTOR CO., U.S.A.
