Wiring Diagrams

For 1992 model wiring diagrams, see appropriate chassis WIRING DIAGRAMS article in the WIRING DIAGRAMS section.

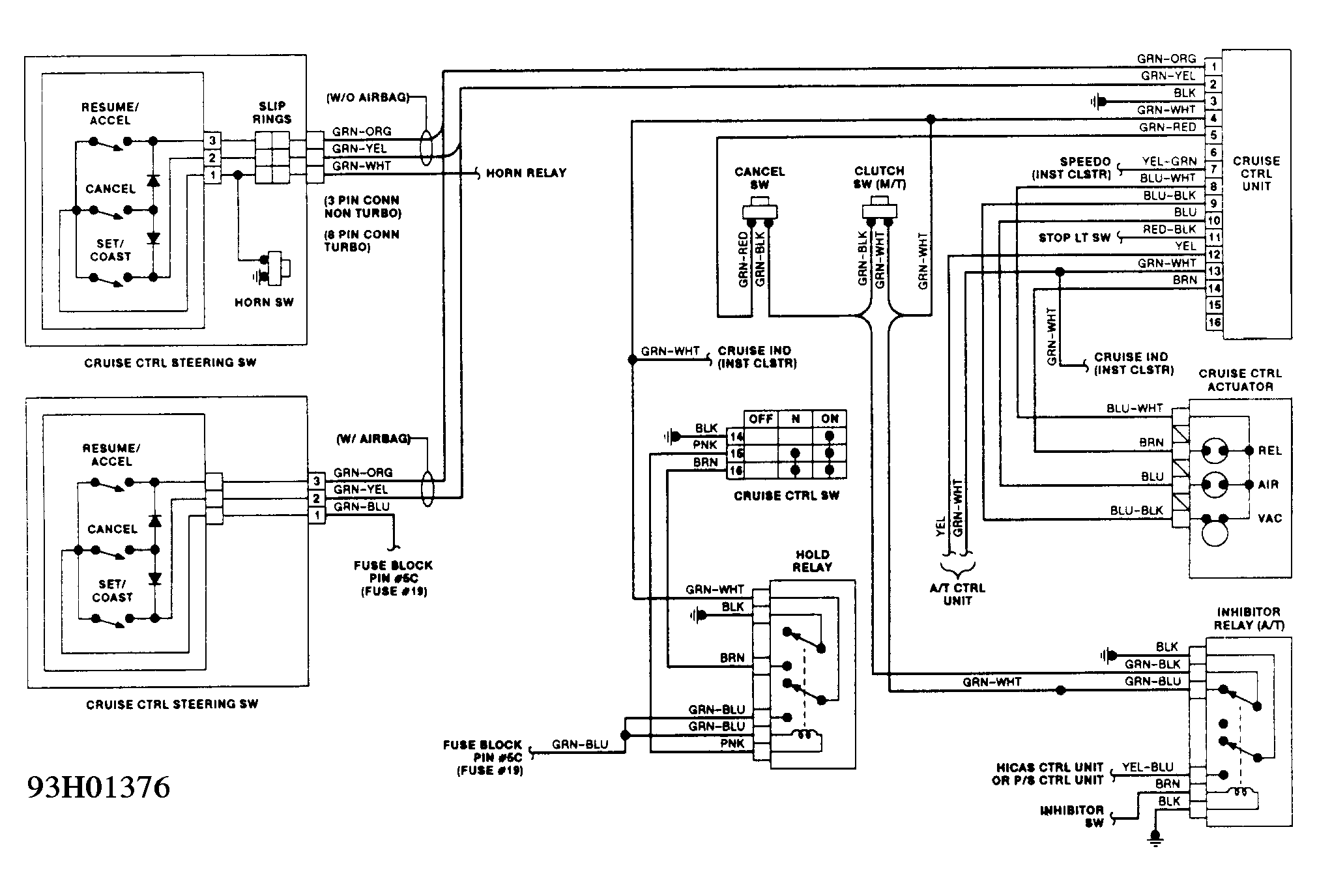

Fig 1: Cruise Control System Schematic (1991 Maxima)

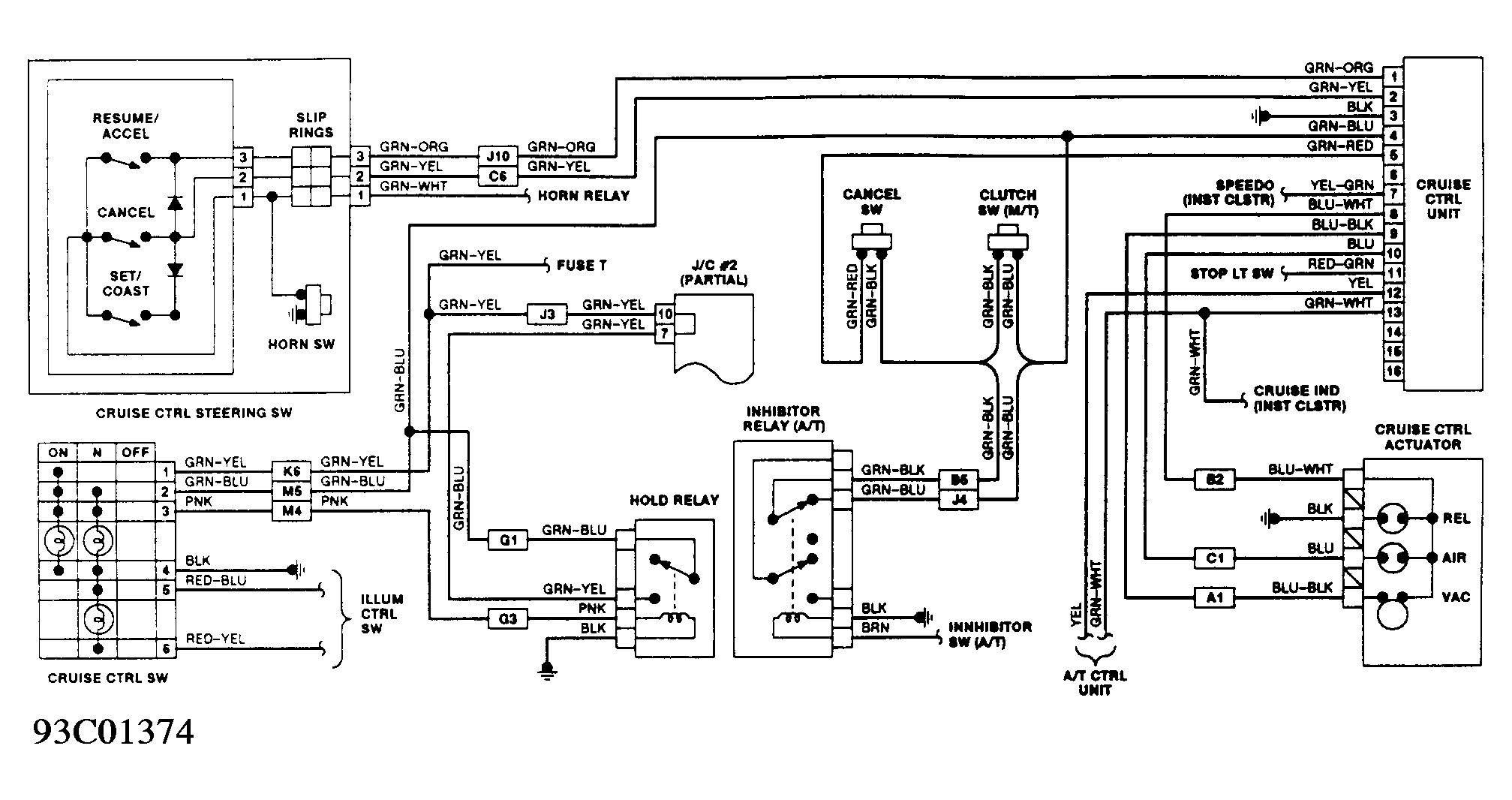

Fig 2: Cruise Control System Schematic (1991 NX & Sentra)

Fig 3: Cruise Control System Schematic (1991 Pathfinder & Pickup)

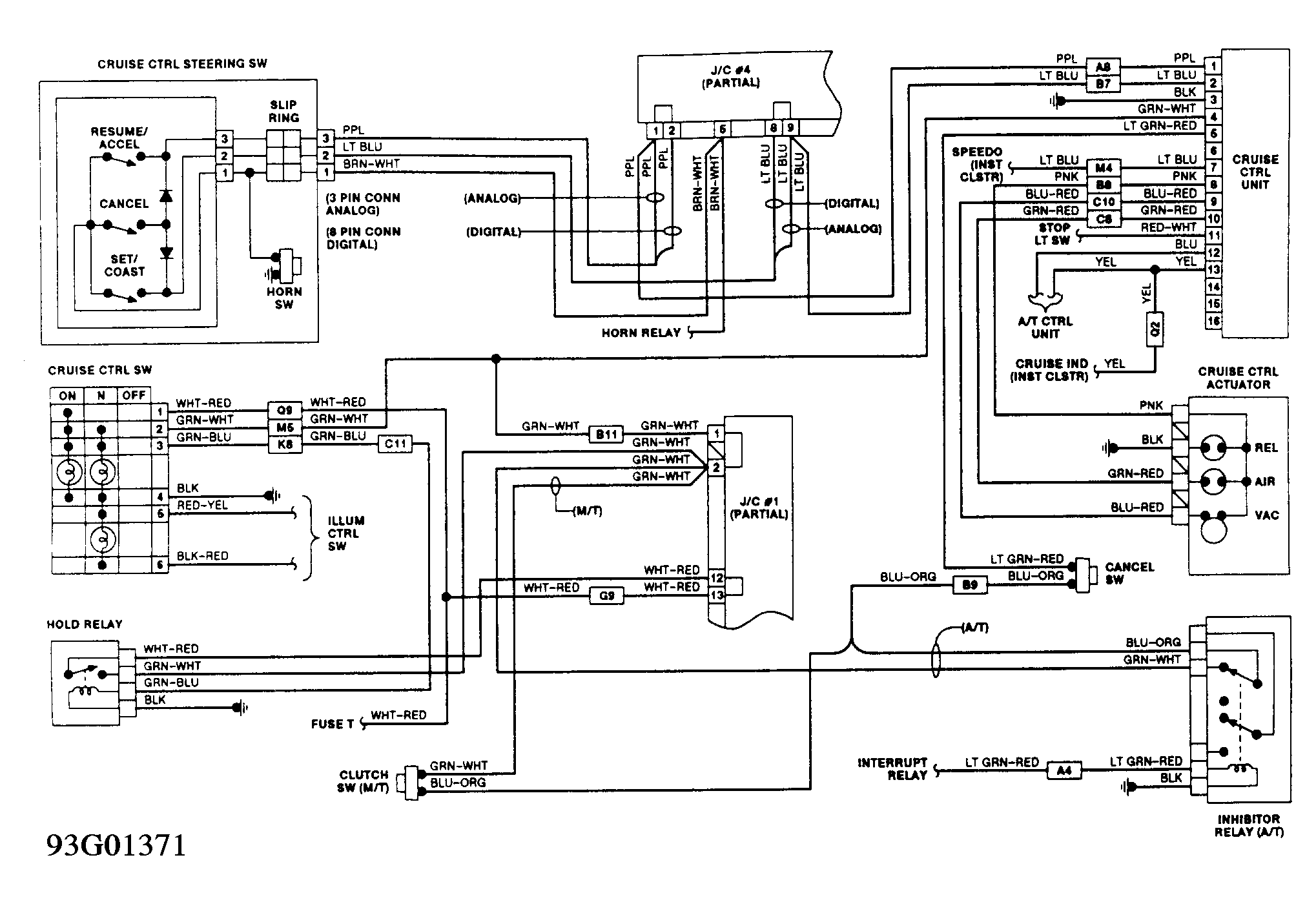

Fig 4: Cruise Control System Schematic (1991 Stanza)

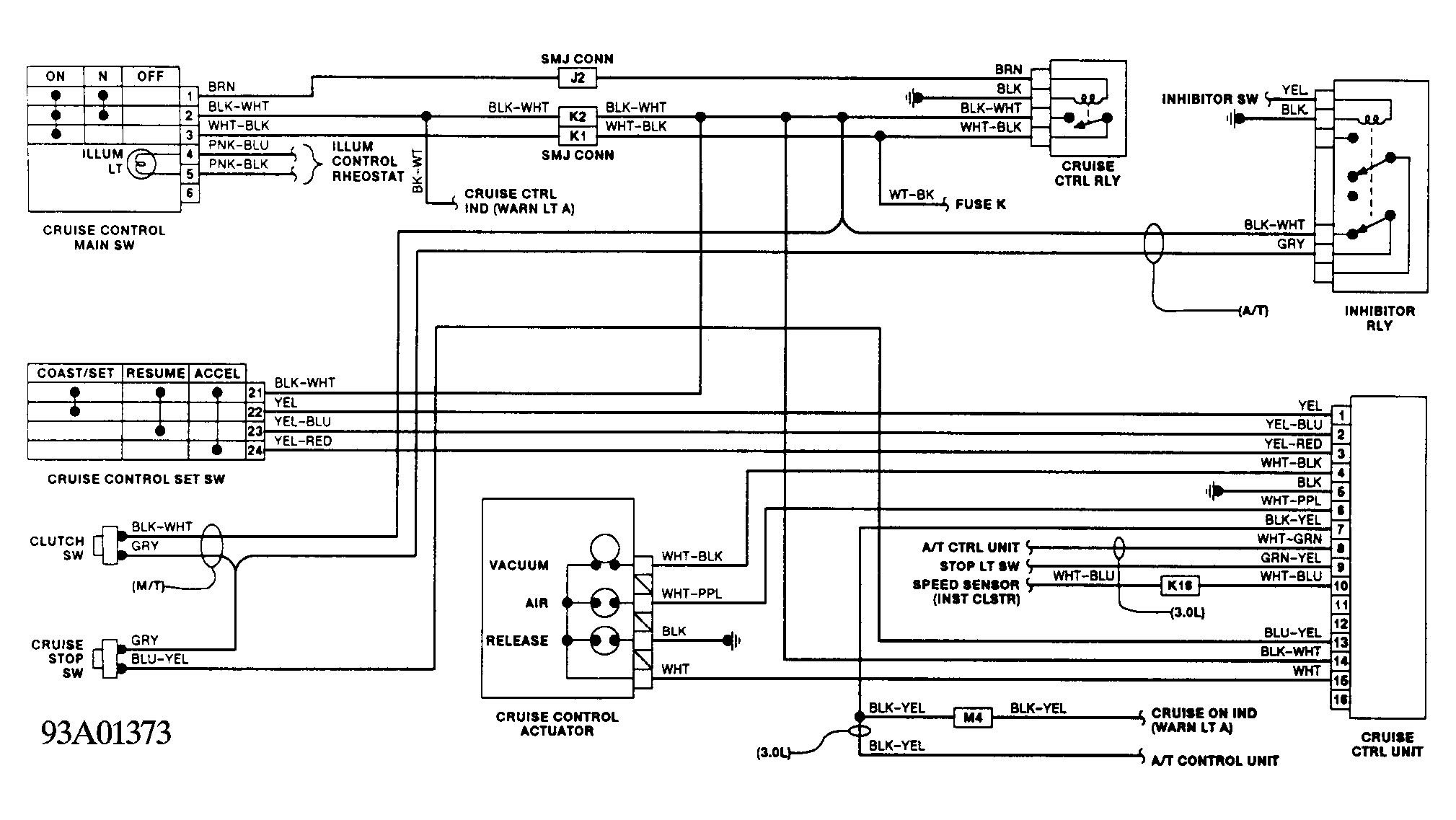

Fig 5: Cruise Control System Schematic (1991 240SX)

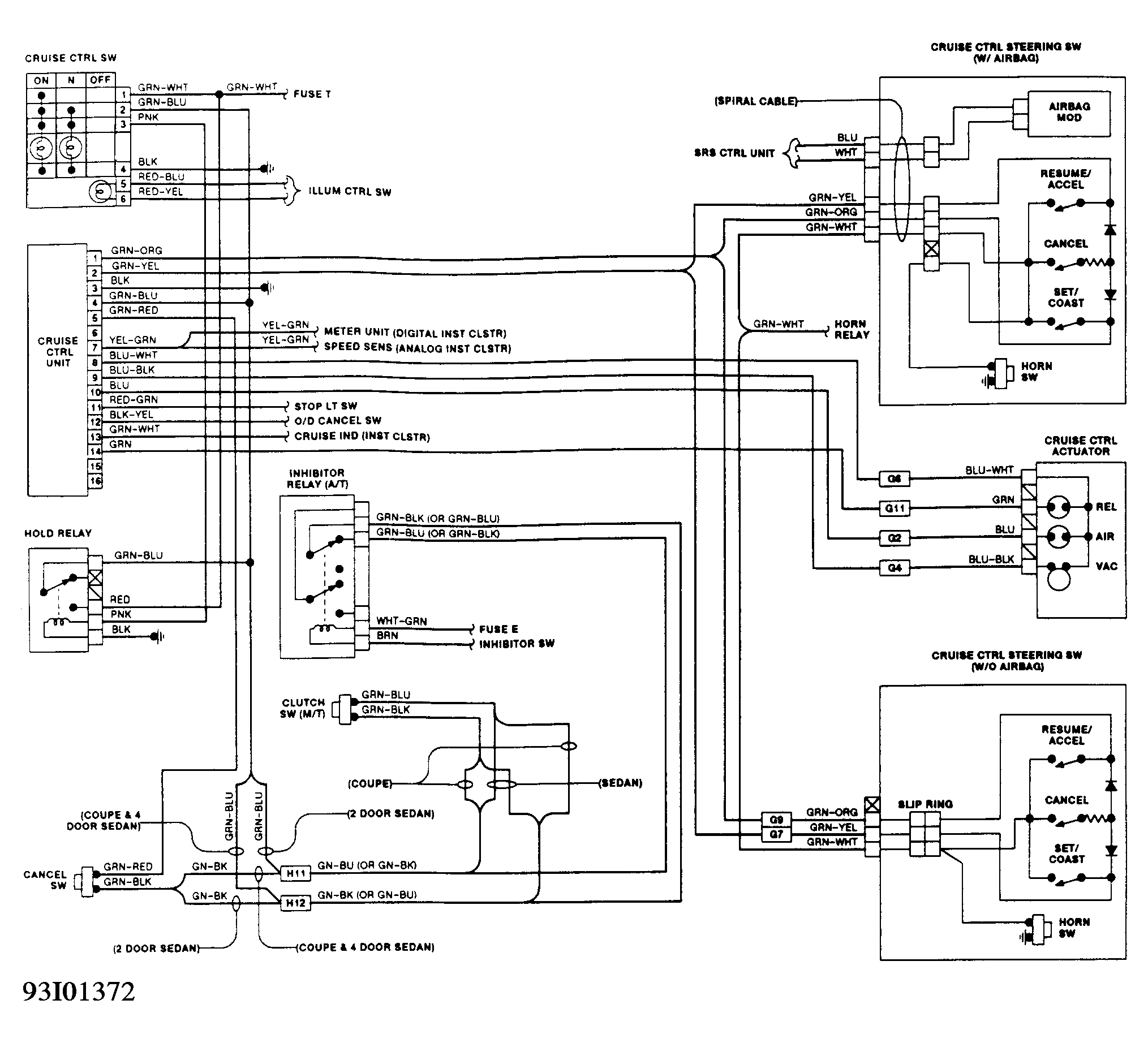

Fig 6: Cruise Control System Schematic (1991 300ZX)
