COMPONENT LOCATIONS

Component Location
Body Ground 202M Behind left kick panel
Body Ground 232M Behind right kick panel
Circuit Breaker Beside Fuse Block
Fuse Block Behind lower left side of dash. See Fig 1 .
Fusible Link Holder Right side of engine compartment
Ignition Relay 2(Connector 7M, W/Power Window) Above Fuse Block. See Fig 1 .
Ignition Relay 2(Connector 311M, 2WD Truck Models) Above Fuse Box. See Fig 1 .
Power Window Amplifier Behind right kick panel. See Fig 1 .

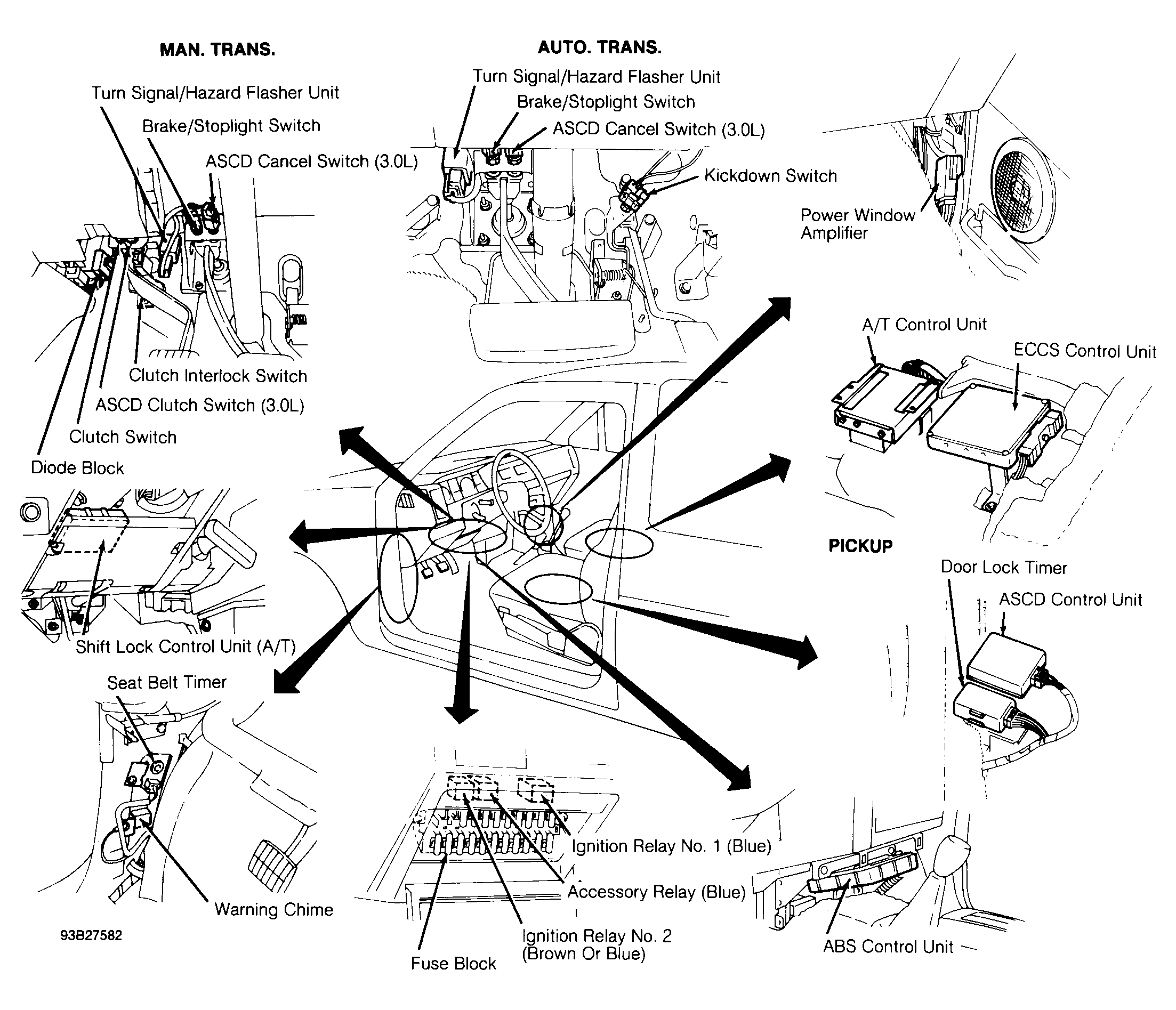

Fig 1: Locating Passenger Compartment Electrical Components
G93B27582

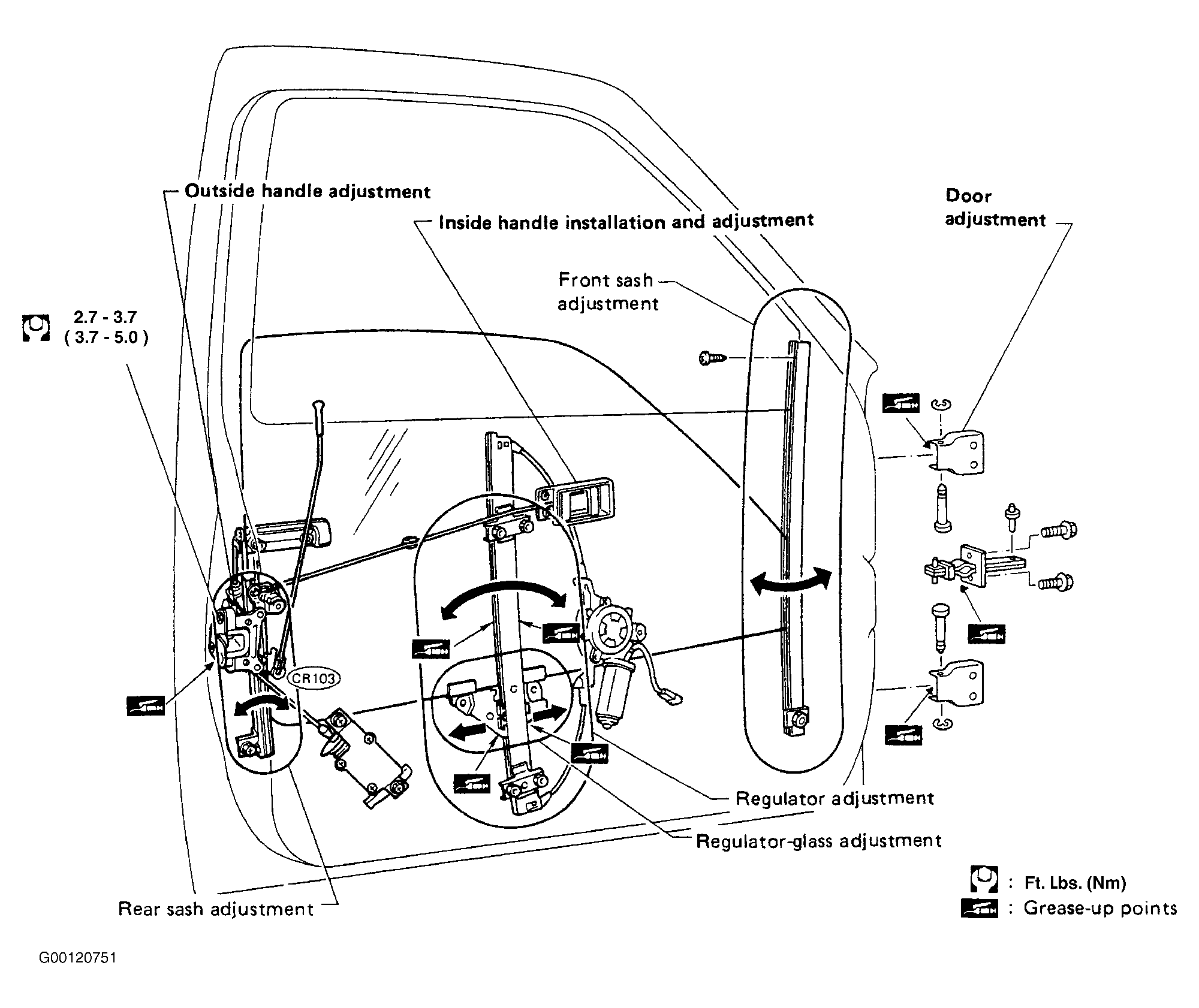

Fig 2: Identifying Front Door Power Window Components
G00120751Courtesy of NISSAN MOTOR CO., U.S.A.

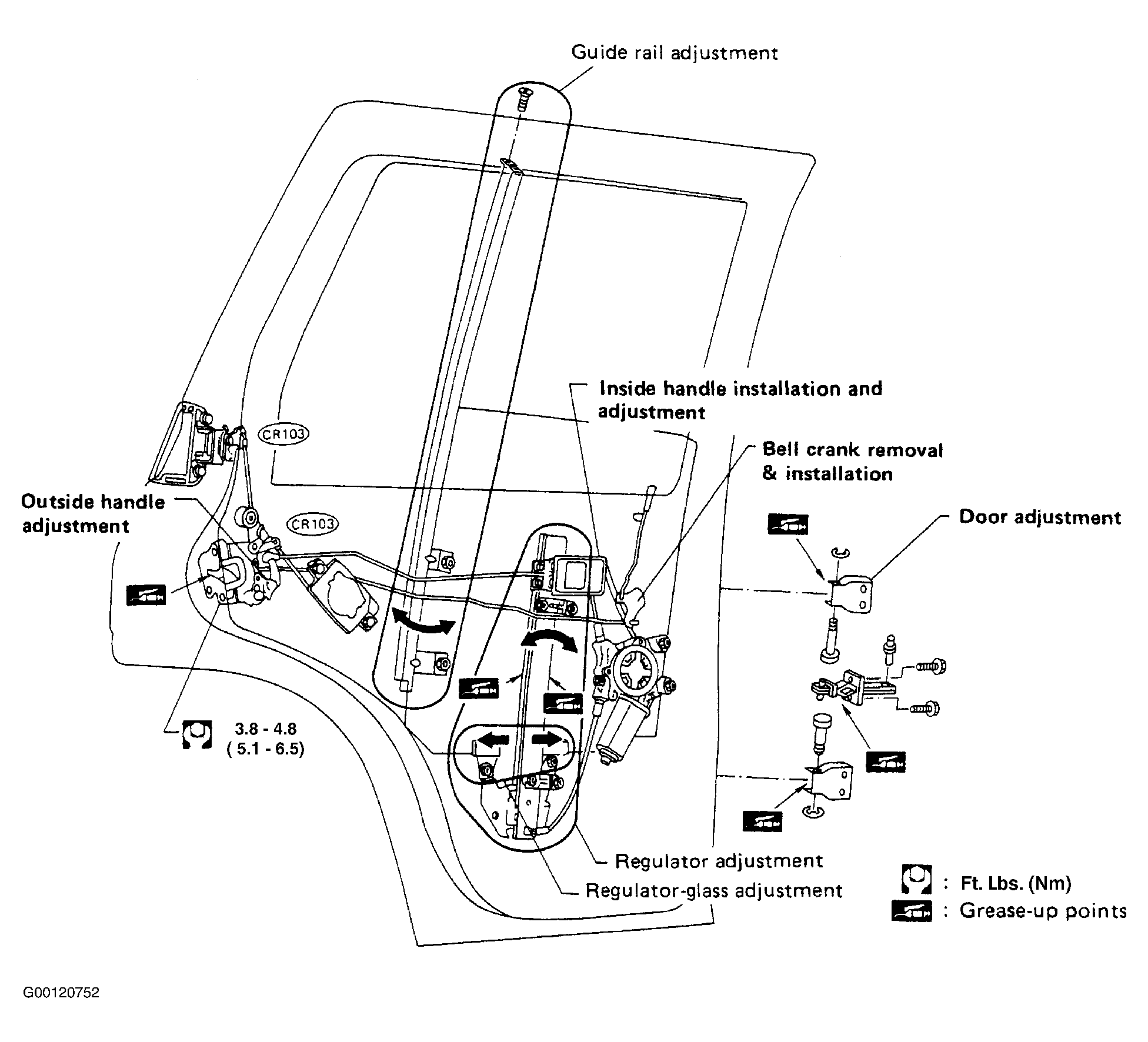

Fig 3: Identifying Rear Door Power Window Components
G00120752Courtesy of NISSAN MOTOR CO., U.S.A.
