Component Locations

COMPONENT LOCATIONS

Component Locations
Body Ground M62 Behind right side of dash. See Fig 1 .
Body Ground M144 Attached to left, rear pillar. See Fig 2 .
Body Ground M149 Under driver's seat. See Fig 2 .
Circuit Breaker 1 Under lower left side of dash. See Fig 3 .
Digital Touch Entry Control Unit Behind right side of dash. See Fig 6 .
Fuse/Relay Block Under lower left side of dash. See Fig 3 .

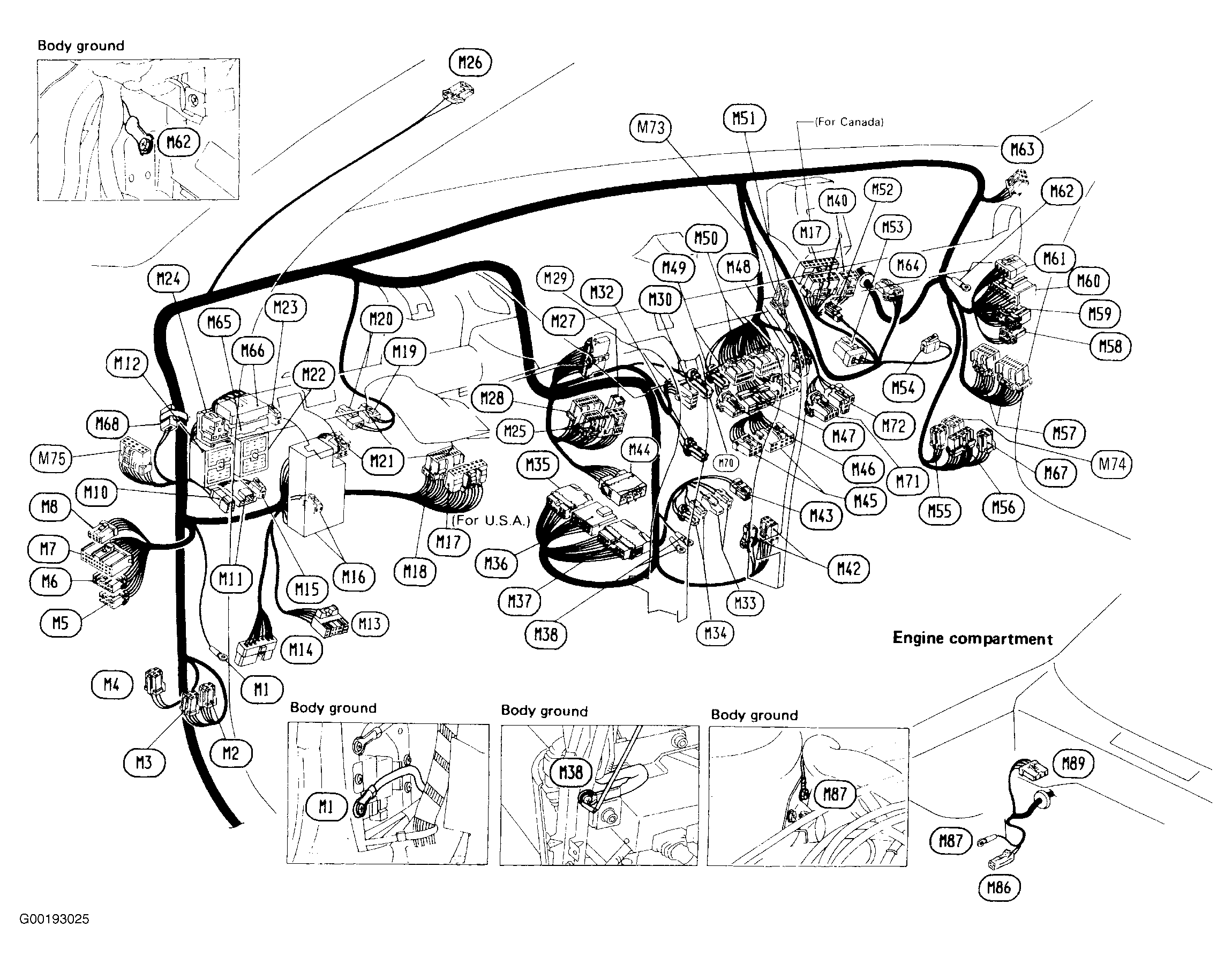

Fig 1: Locating Body Ground M62
G00193025Courtesy of NISSAN MOTOR CO., U.S.A.

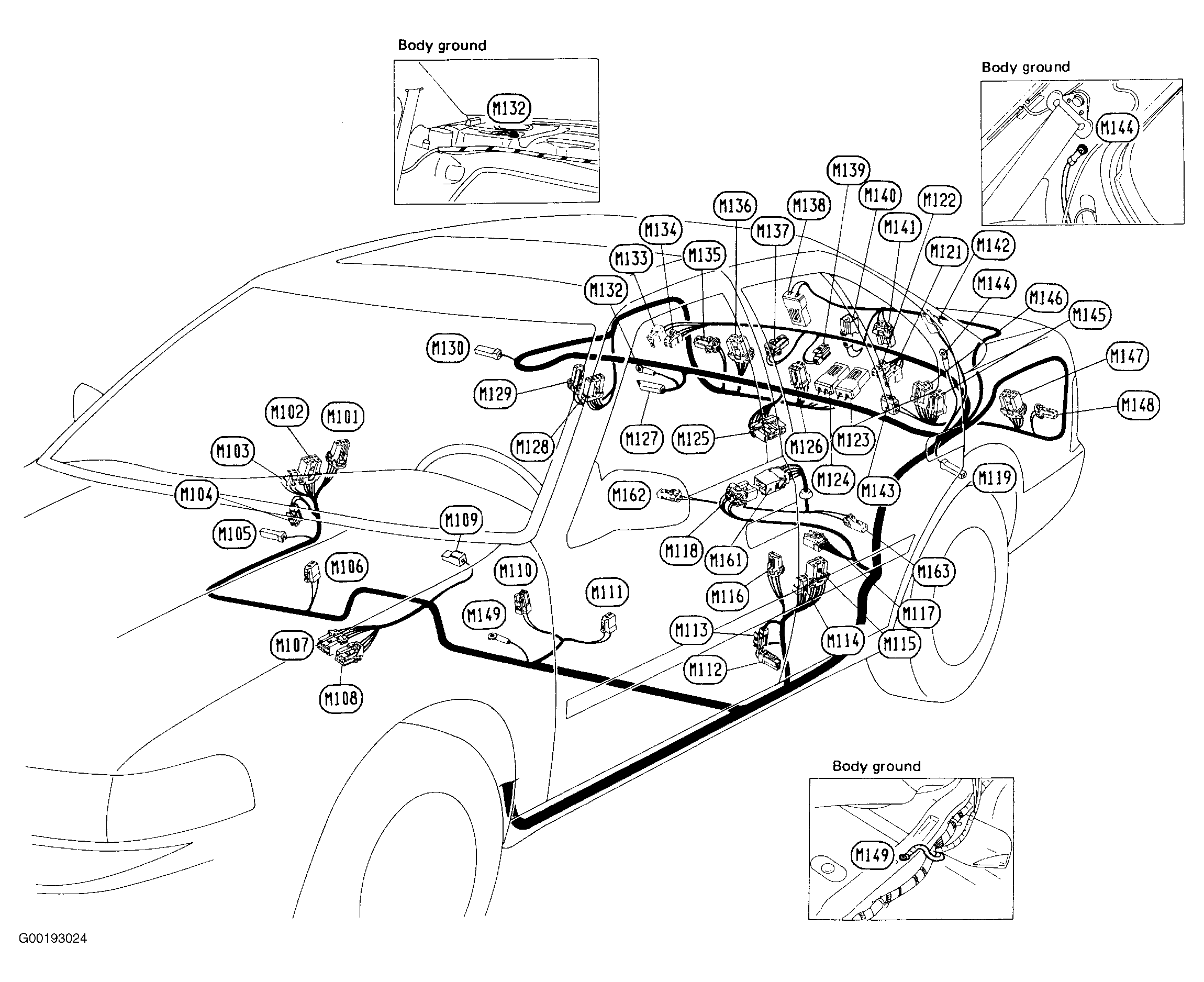

Fig 2: Locating Body Grounds M144 & M149
G00193024Courtesy of NISSAN MOTOR CO., U.S.A.

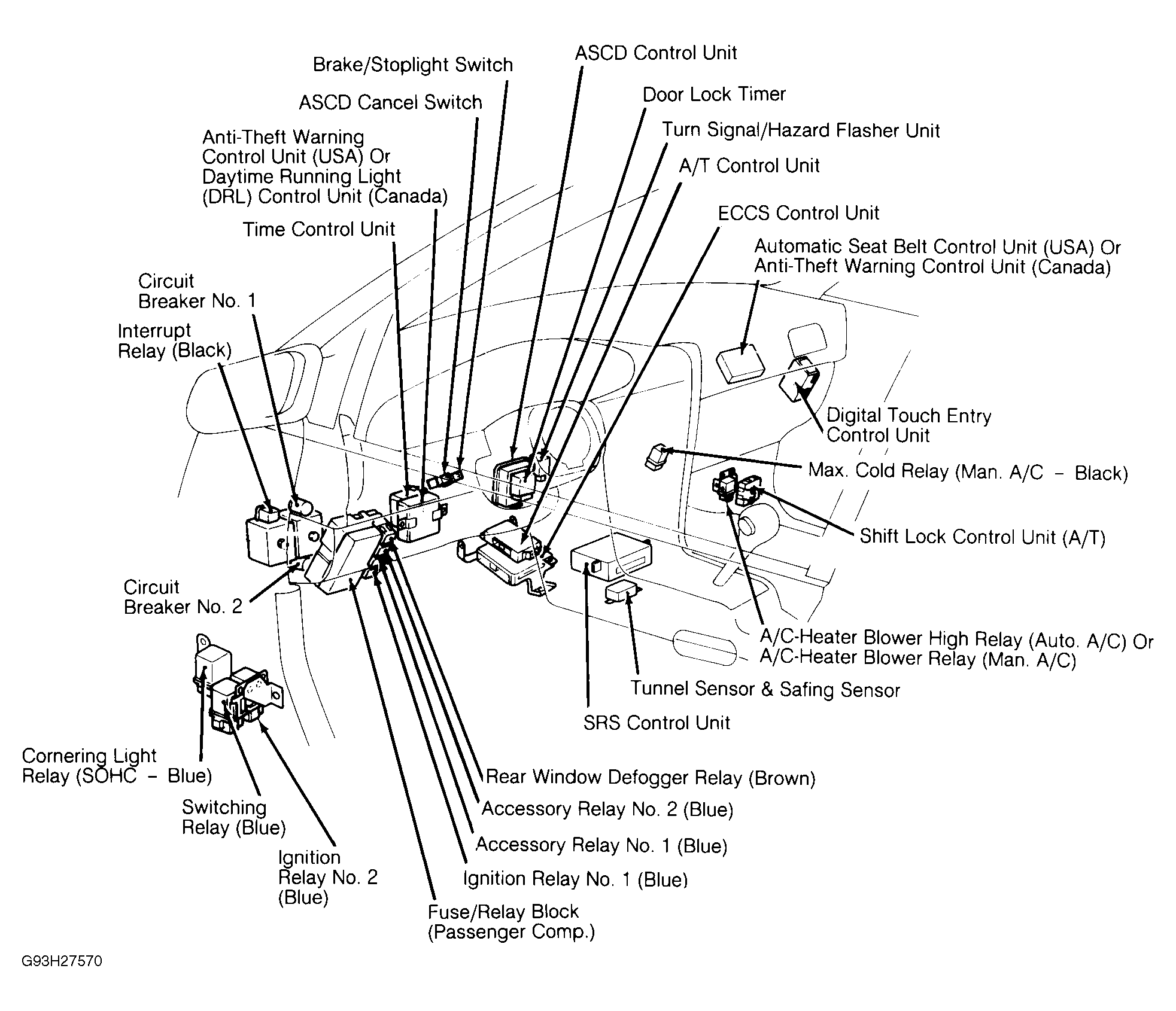

Fig 3: Locating Circuit Breaker 1 & Fuse/Relay Block
G93H27570

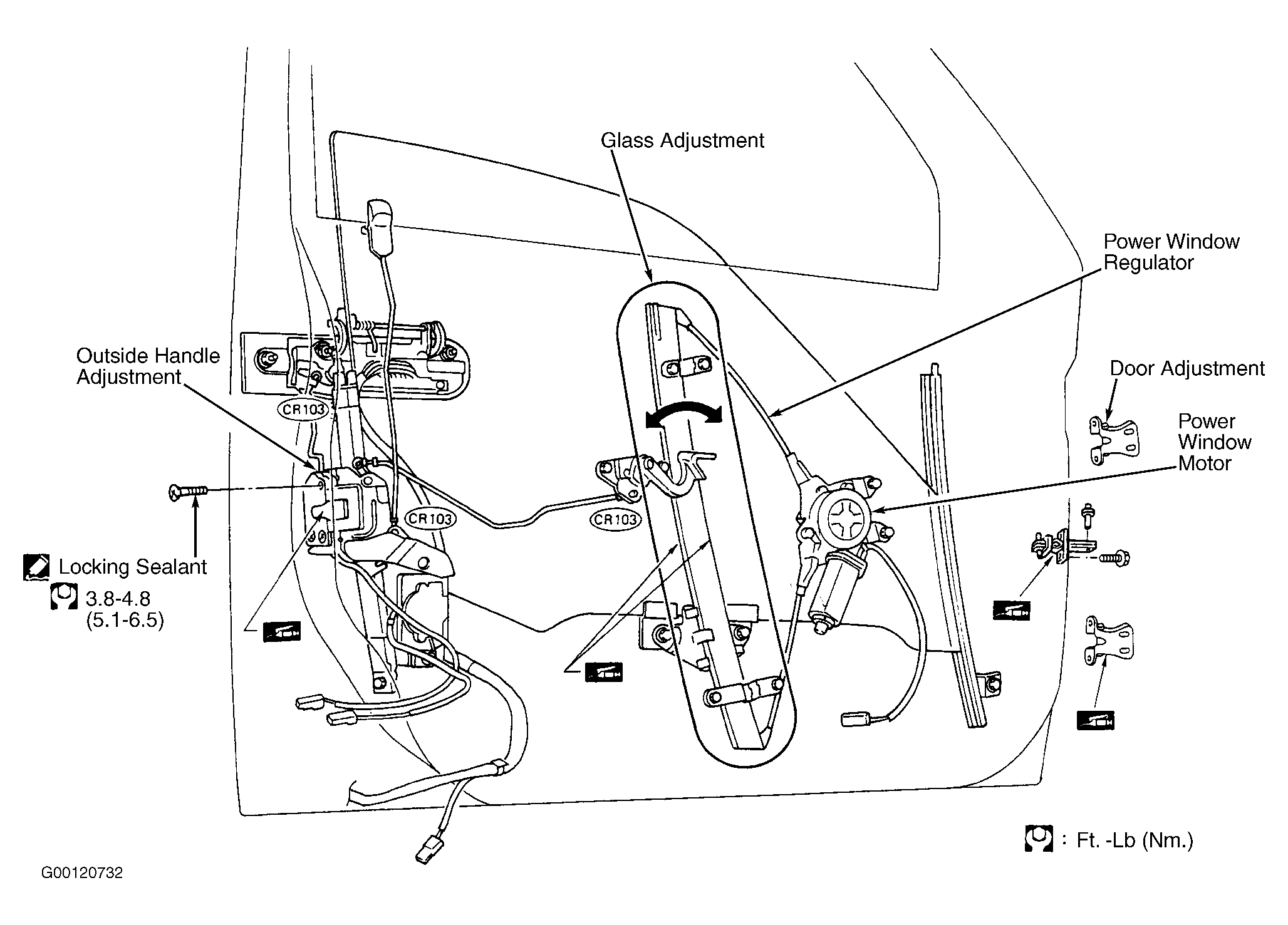

Fig 4: Identifying Front Door Power Window Components
G00120732Courtesy of NISSAN MOTOR CO., U.S.A.

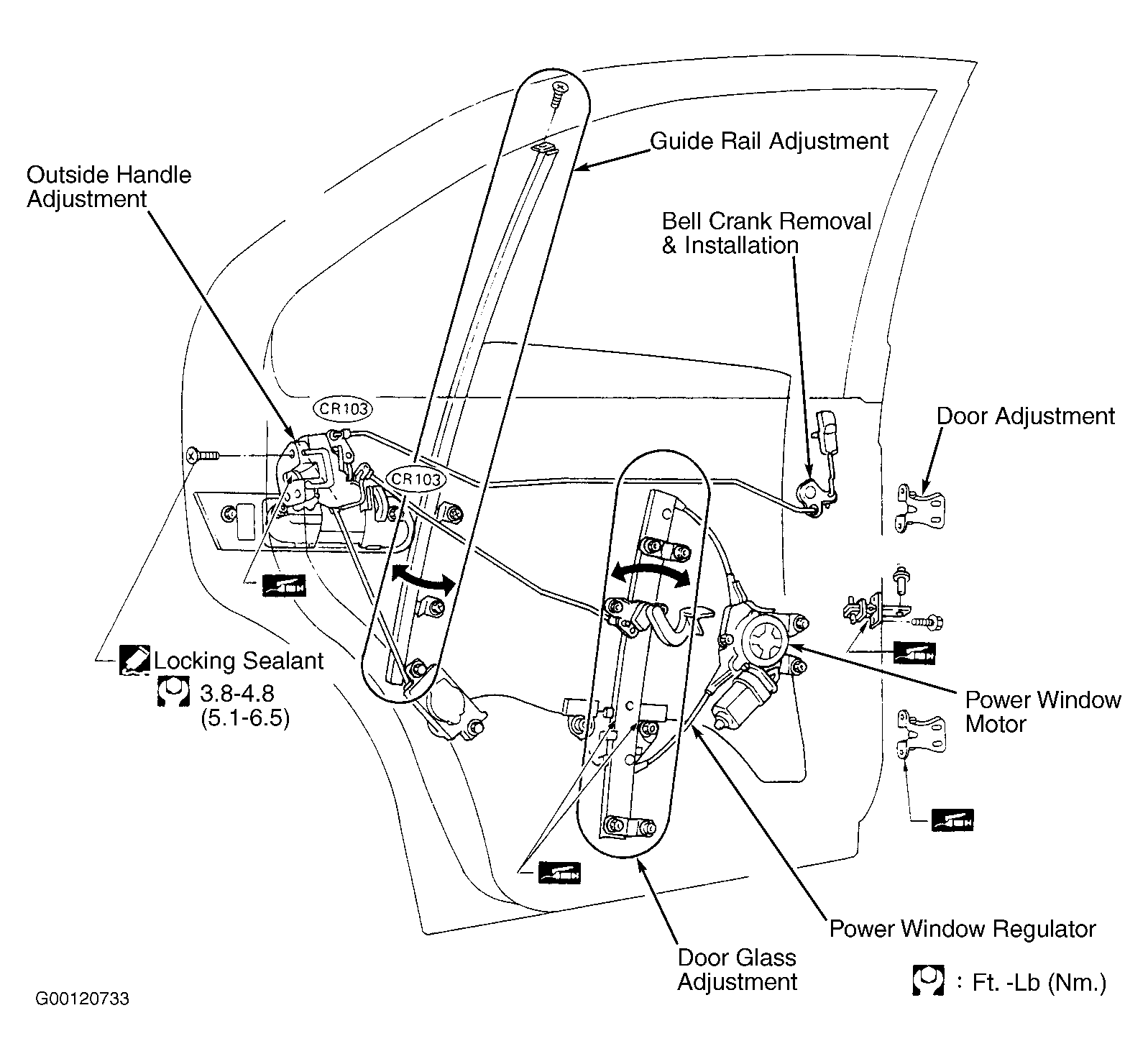

Fig 5: Identifying Rear Door Power Window Components
G00120733Courtesy of NISSAN MOTOR CO., U.S.A.

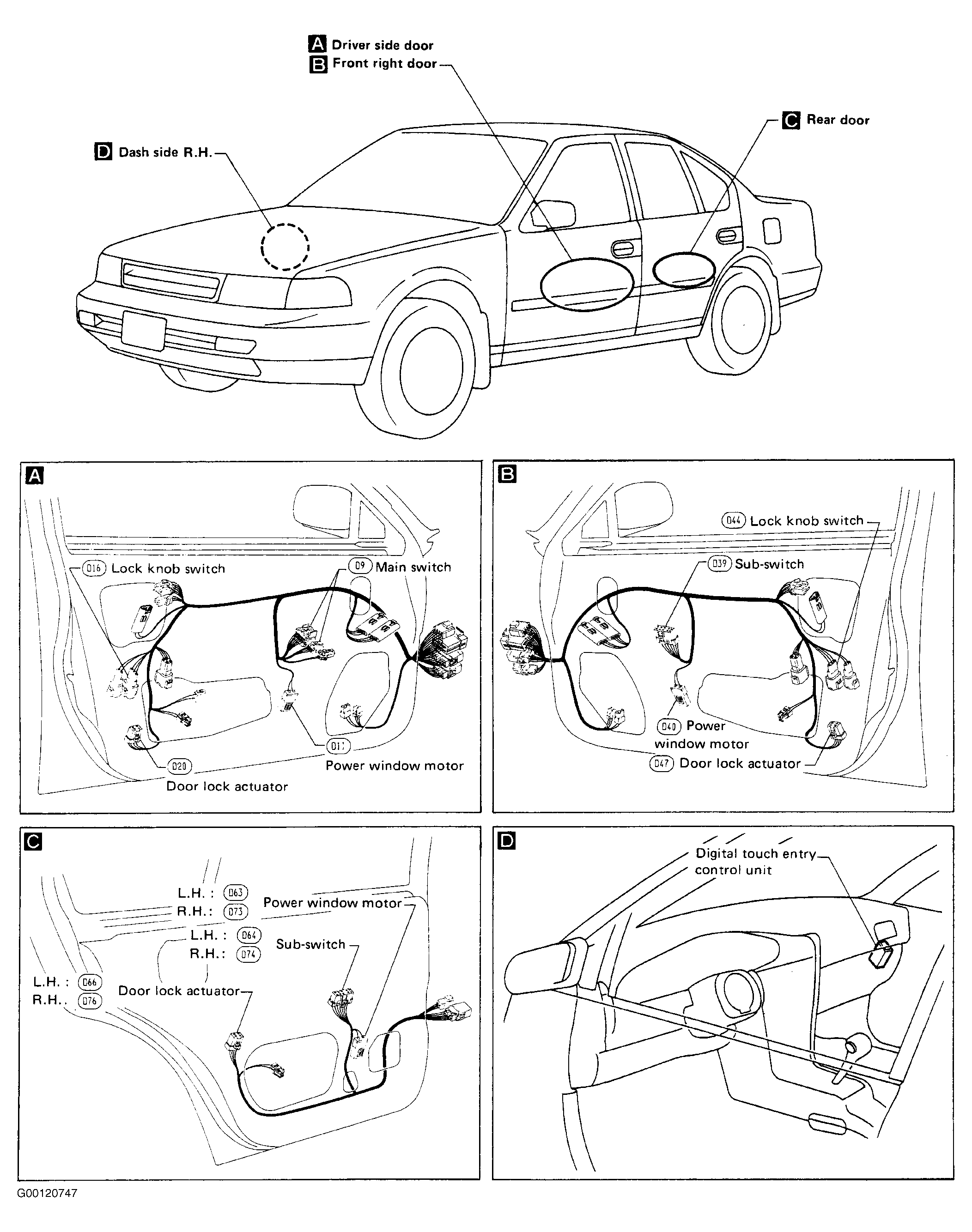

Fig 6: Locating Power Window System Connectors
G00120747Courtesy of NISSAN MOTOR CO., U.S.A.
