Code 45 - Injector Leak (CALIF.)

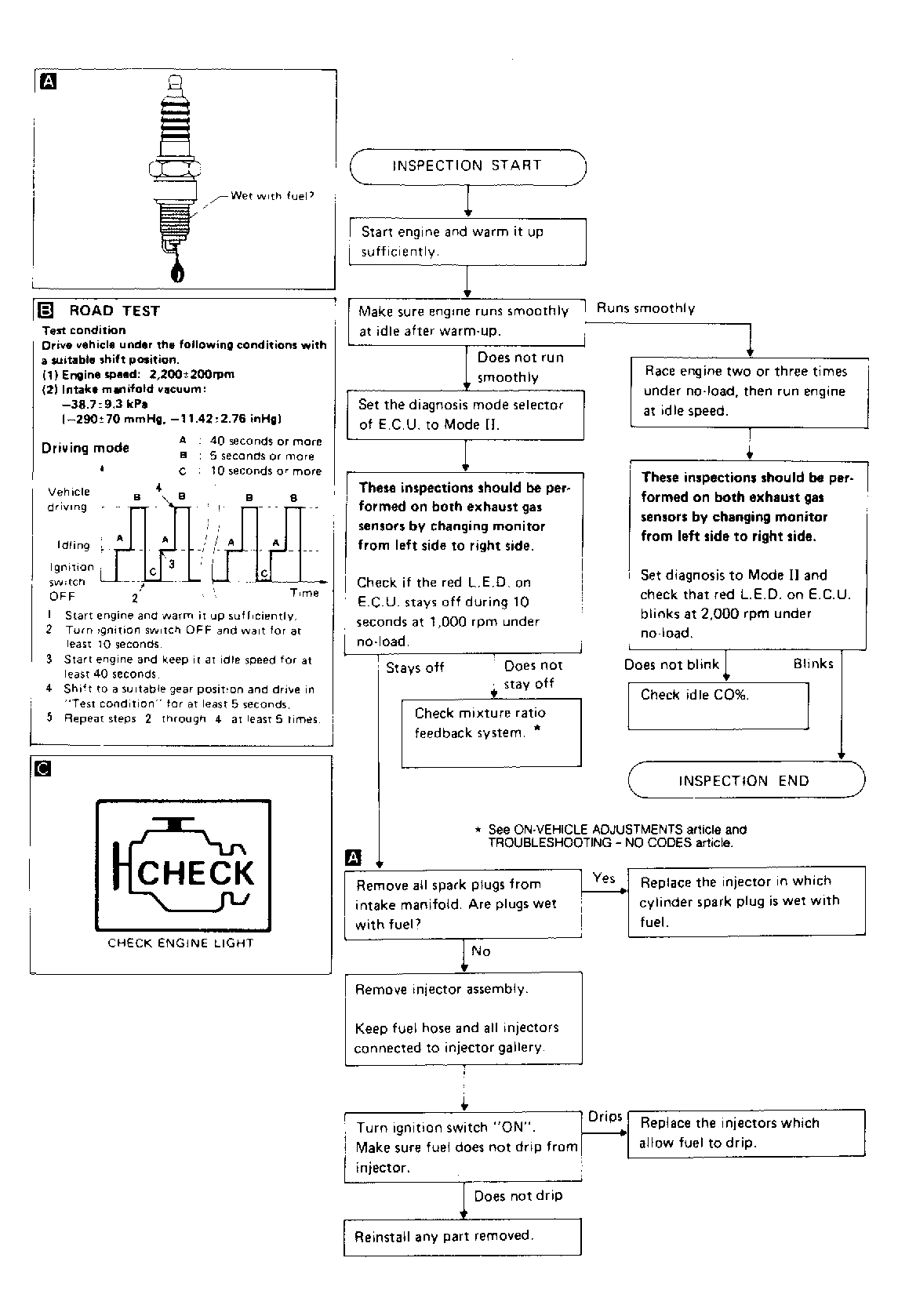

Fig 1: Code 45 - Injector Leak (Calif.)(1 Of 2)

G91H16607

Courtesy of NISSAN MOTOR CO., U.S.A.

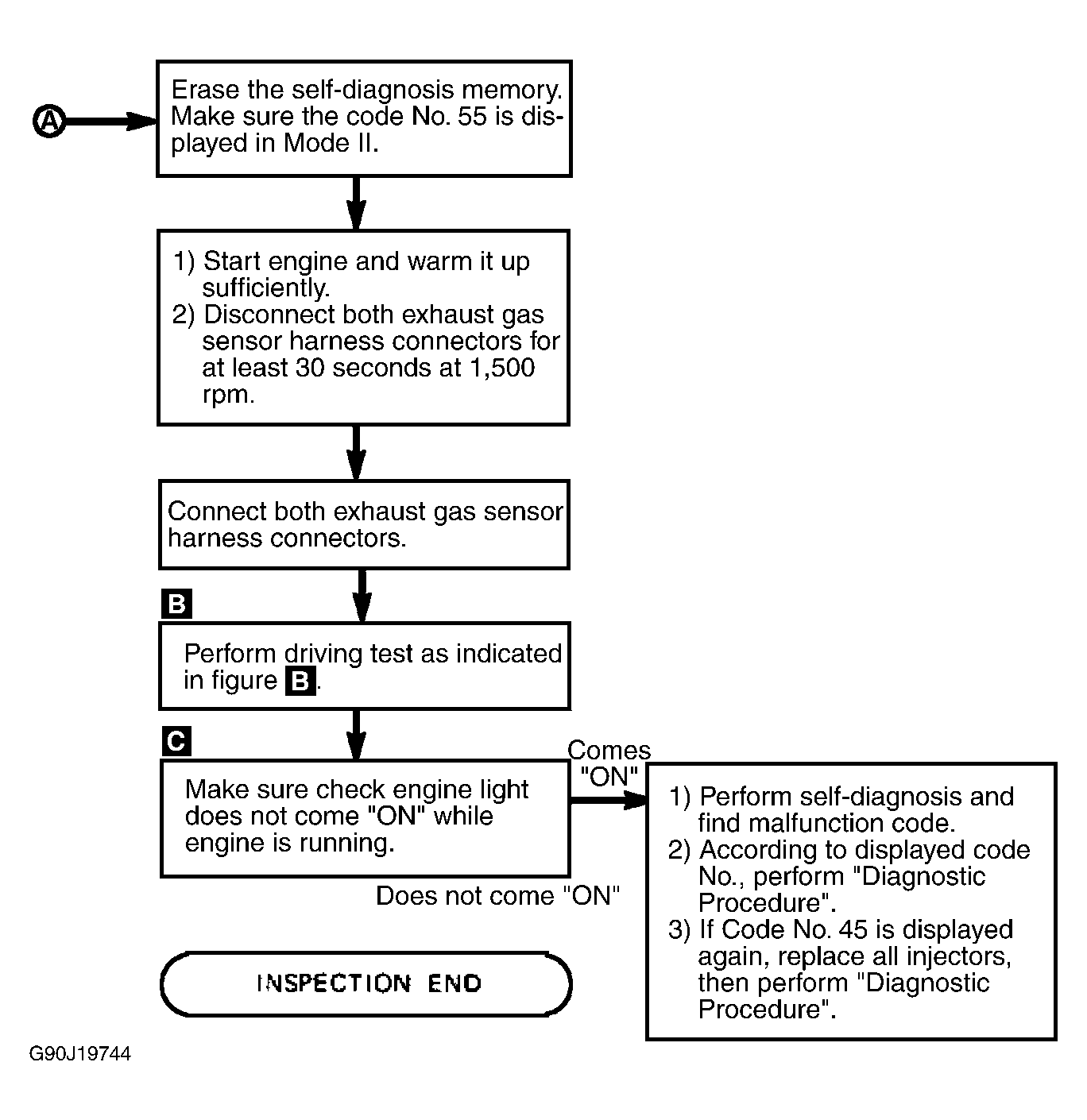

Fig 2: Code 45 - Injector Leak (Calif.)(2 Of 2)

G90J19744

Courtesy of NISSAN MOTOR CO., U.S.A.
