Start Signal Chart

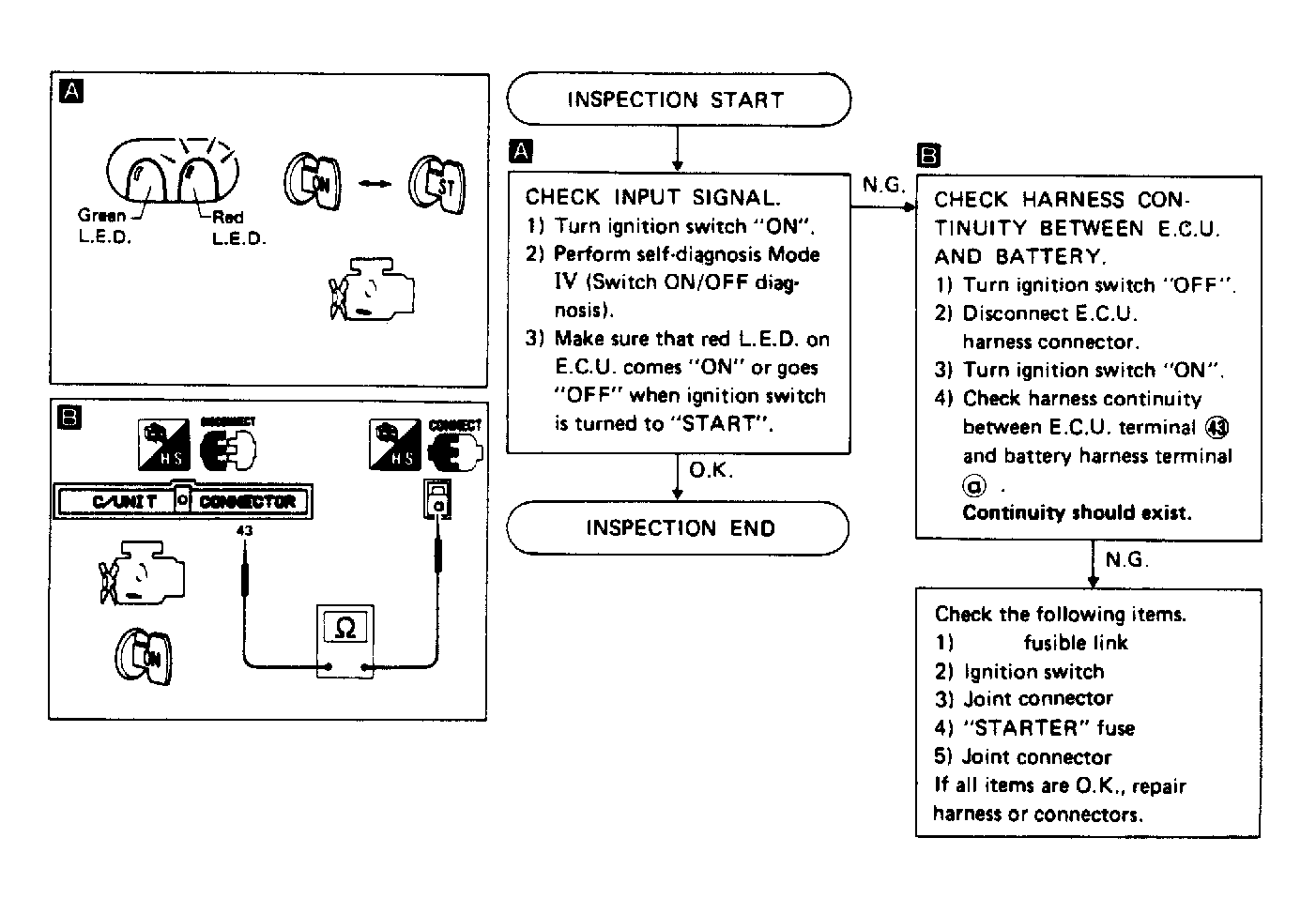

Fig 1: Start Signal Flow Chart (1 of 2)

G90H20708

Courtesy of NISSAN MOTOR CO., U.S.A.

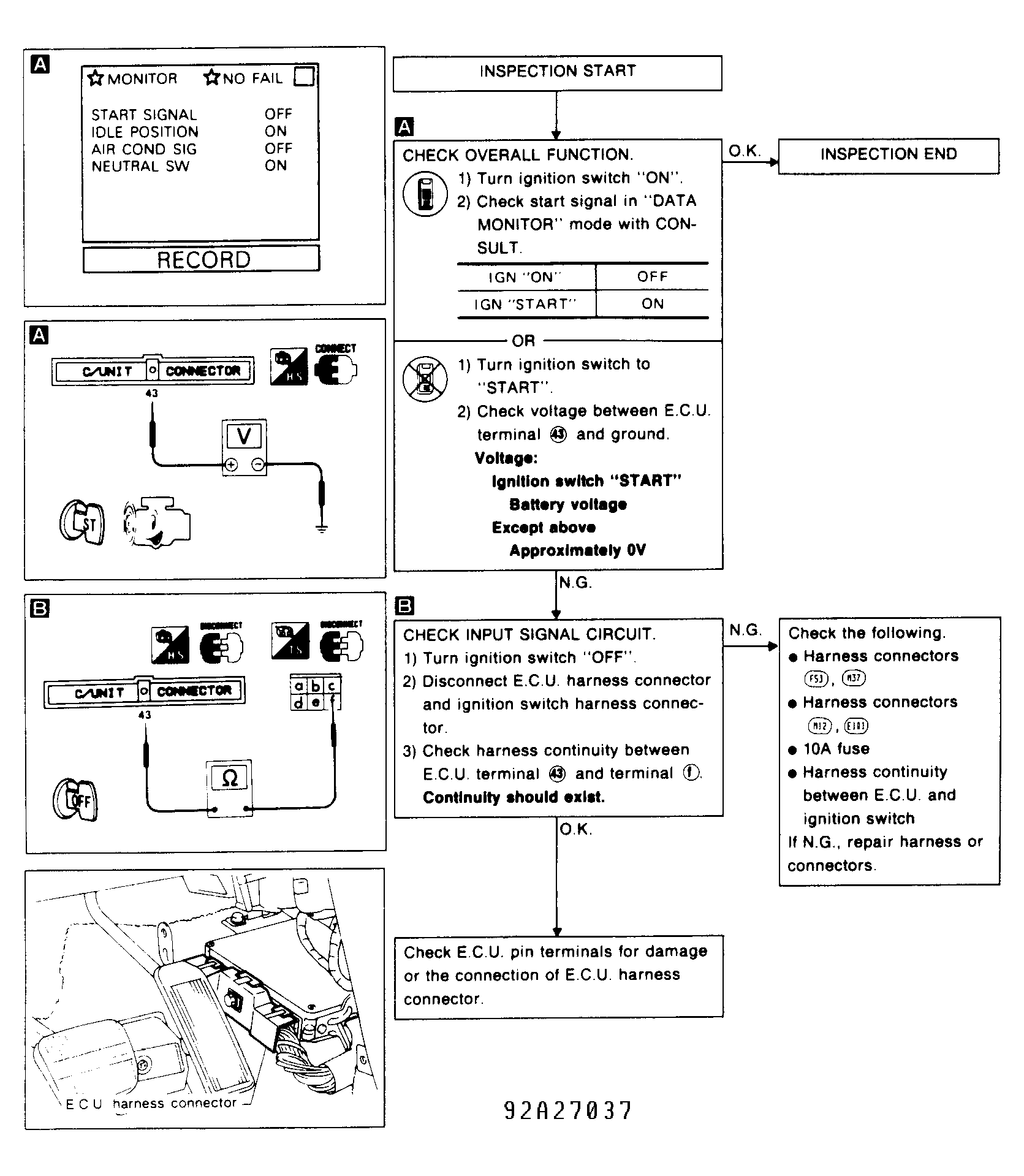

Fig 2: Start Signal Flow Chart Maxima SE (2 of 2)

G92A27037

Courtesy of NISSAN MOTOR CO., U.S.A.
