Radiator (Cooling) Fan Control Chart

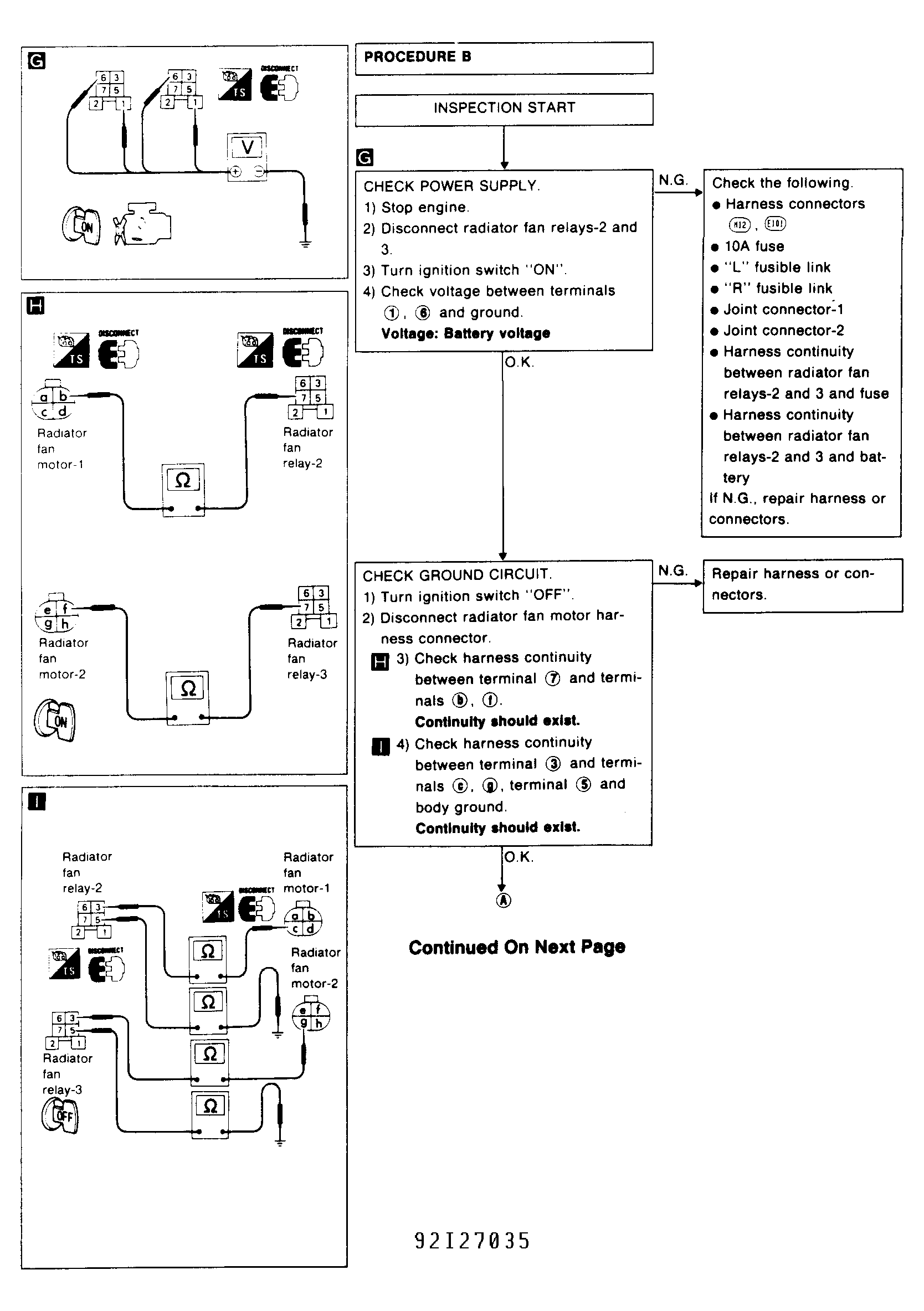

Fig 1: Radiator Cooling Fan Ctrl Flow Chart (1 of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

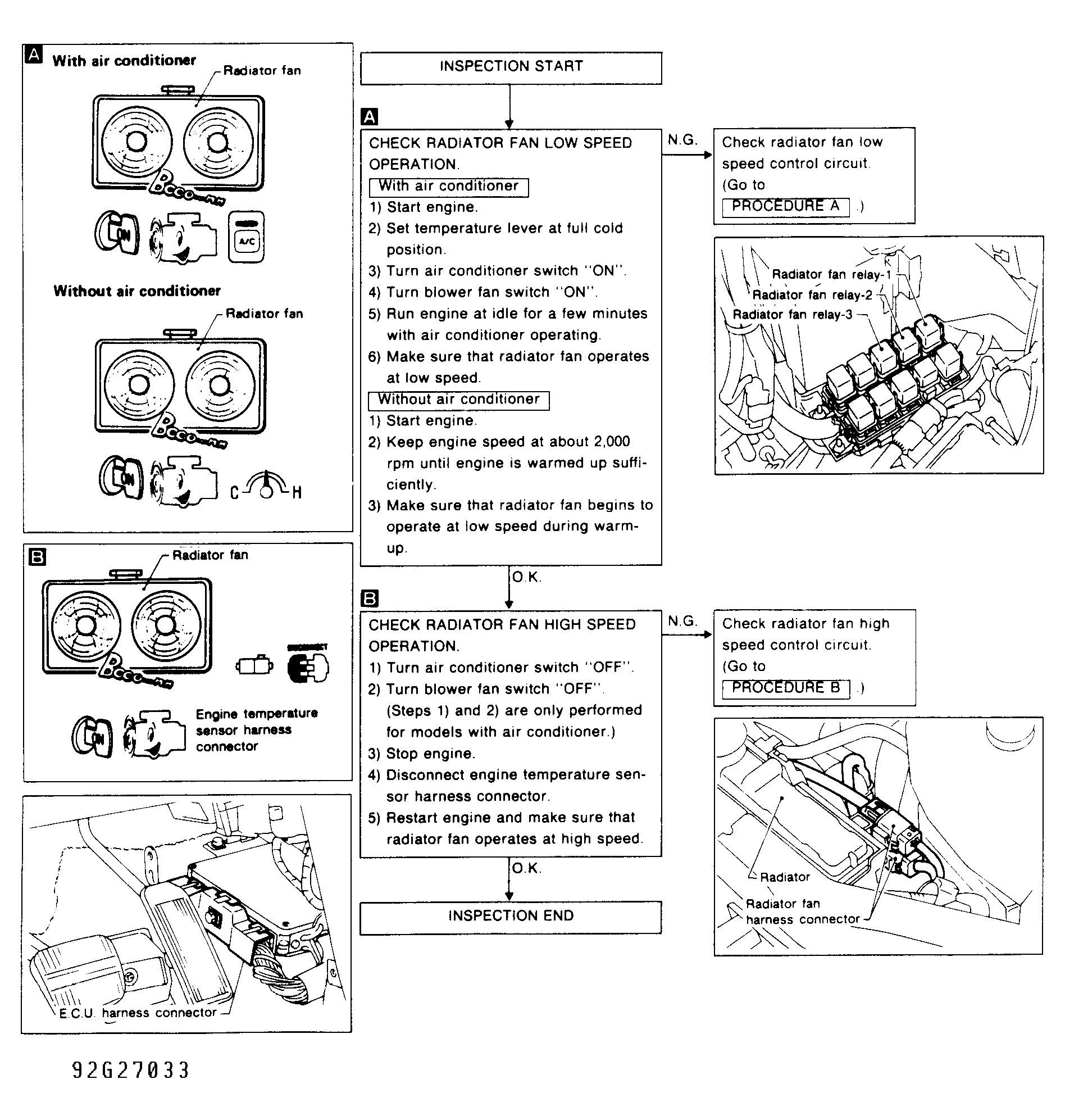

Fig 2: Radiator Cooling Fan Ctrl Flow Chart (2 of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

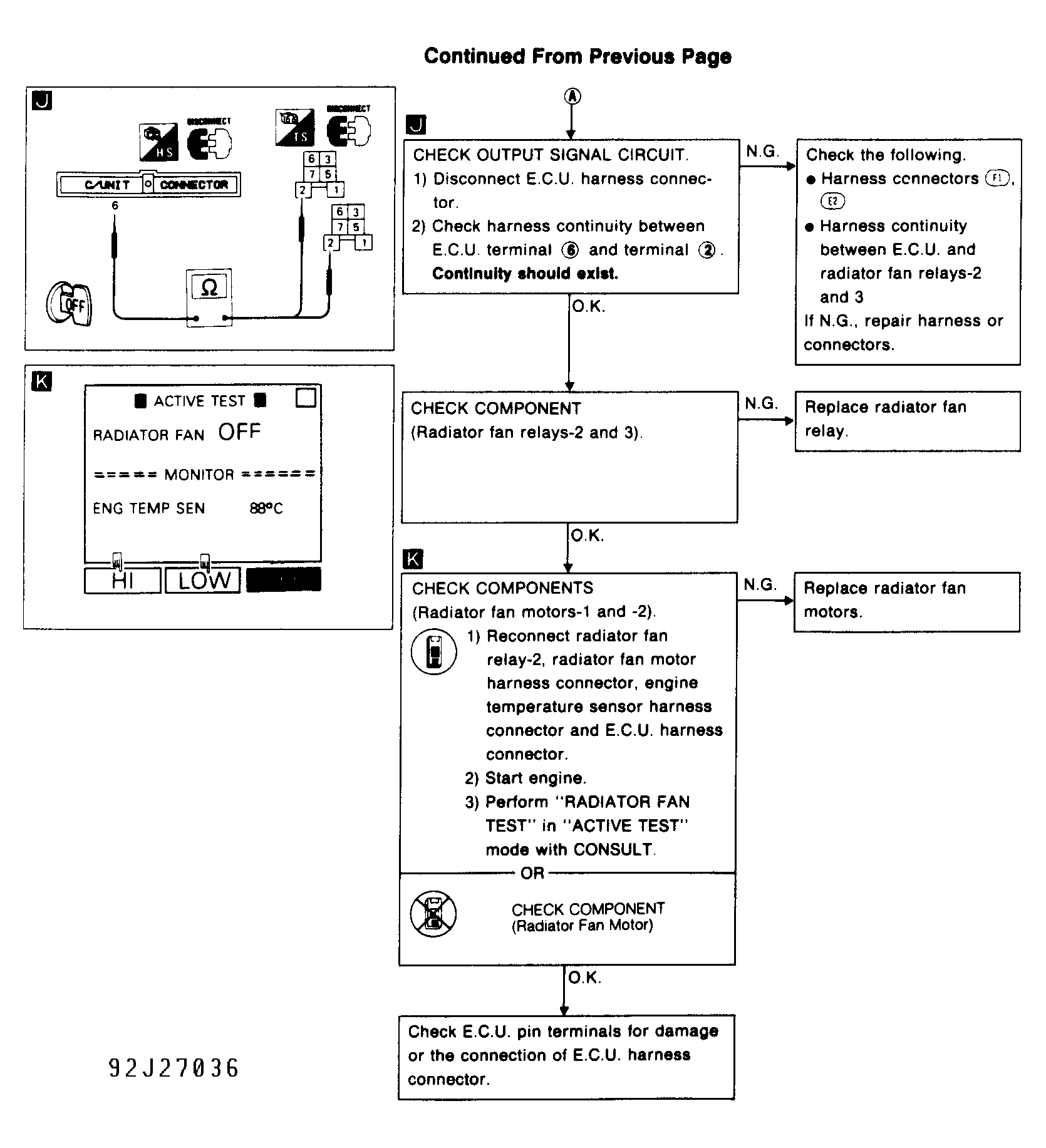

Fig 3: Radiator Cooling Fan Ctrl Flow Chart (3 of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

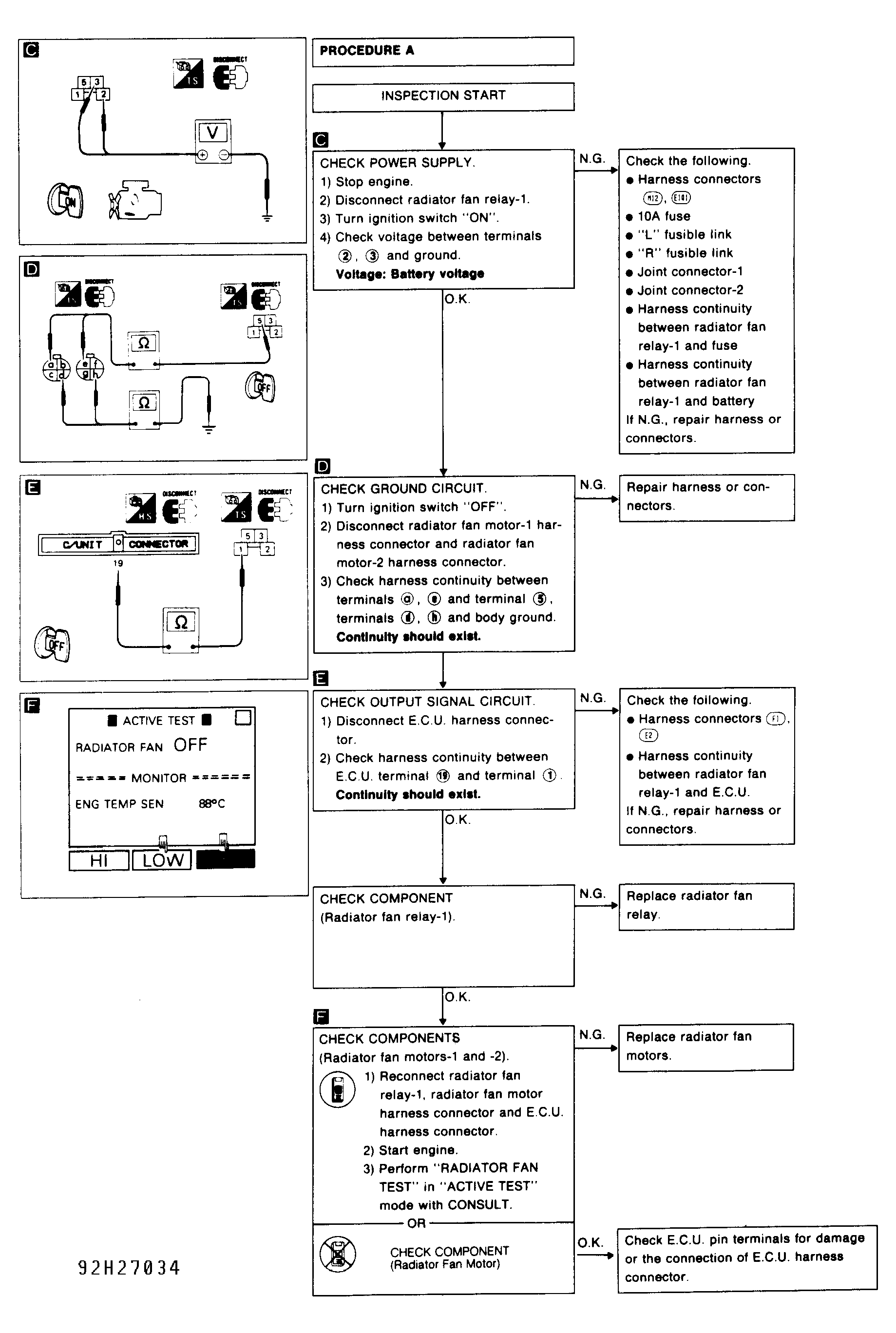

Fig 4: Radiator Cooling Fan Ctrl Flow Chart Maxima SE (4 of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

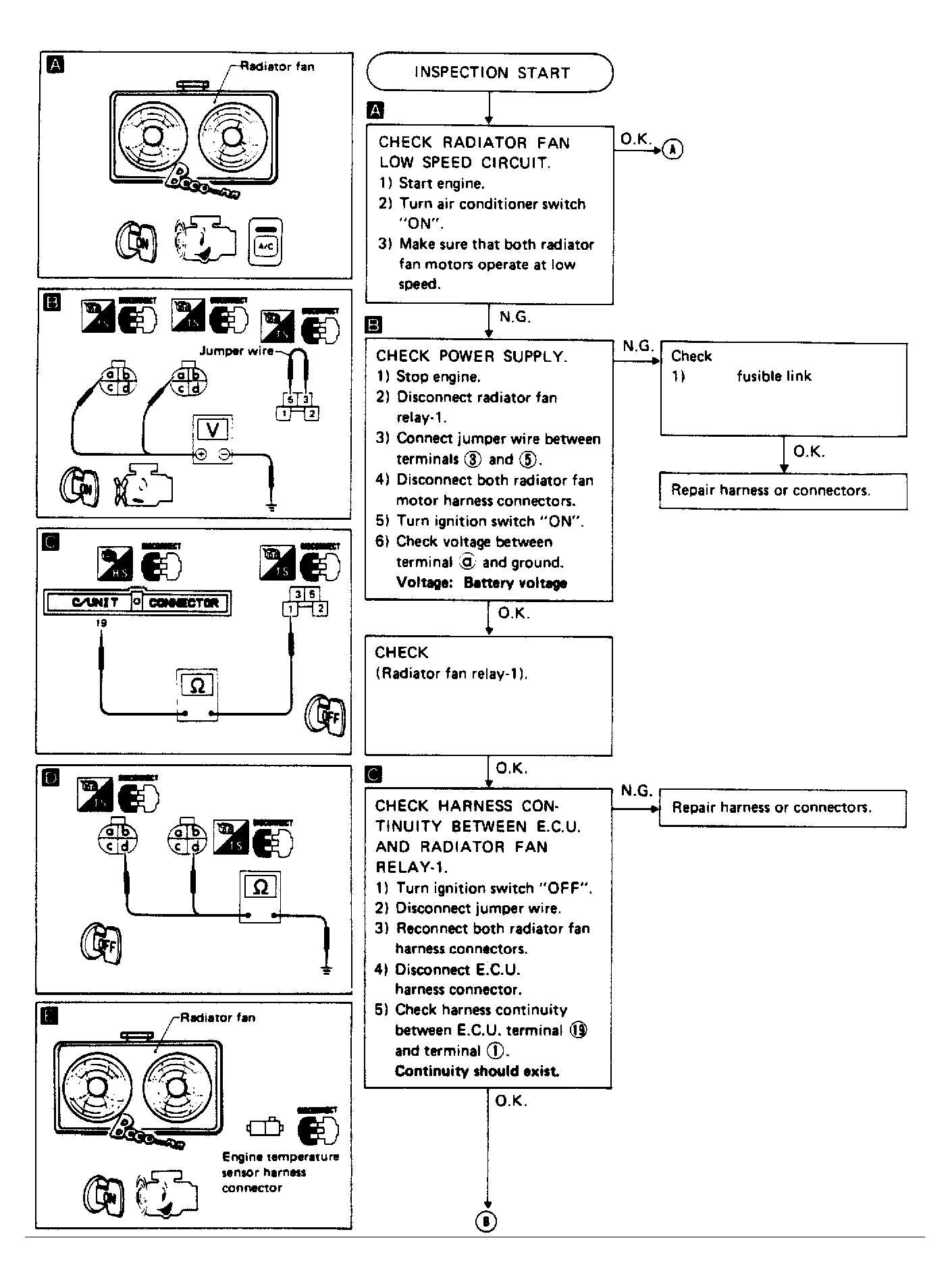

Fig 5: Radiator Cooling Fan Ctrl Flow Chart Maxima SE (5 of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

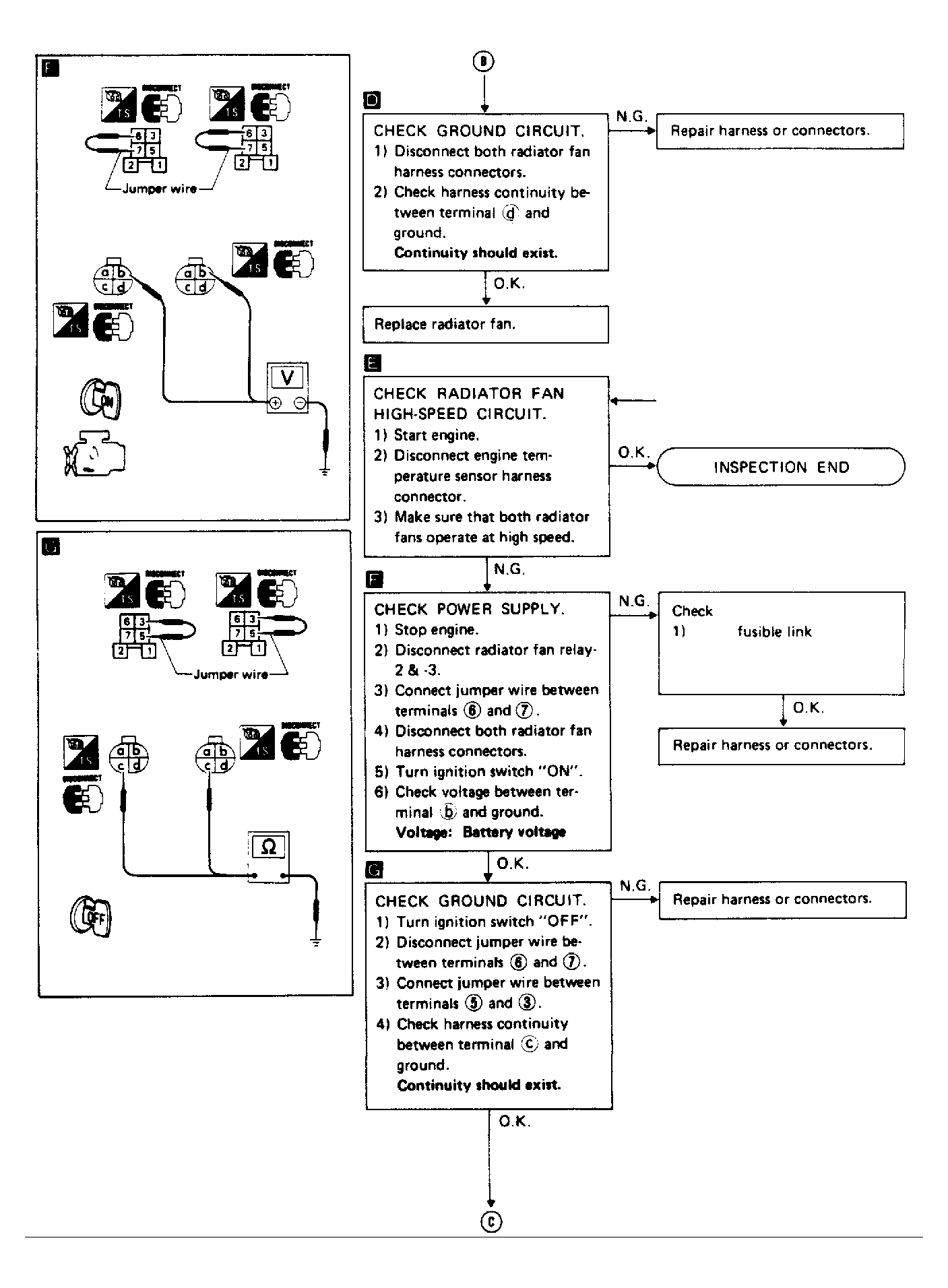

Fig 6: Radiator Cooling Fan Ctrl Flow Chart Maxima SE (6 of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

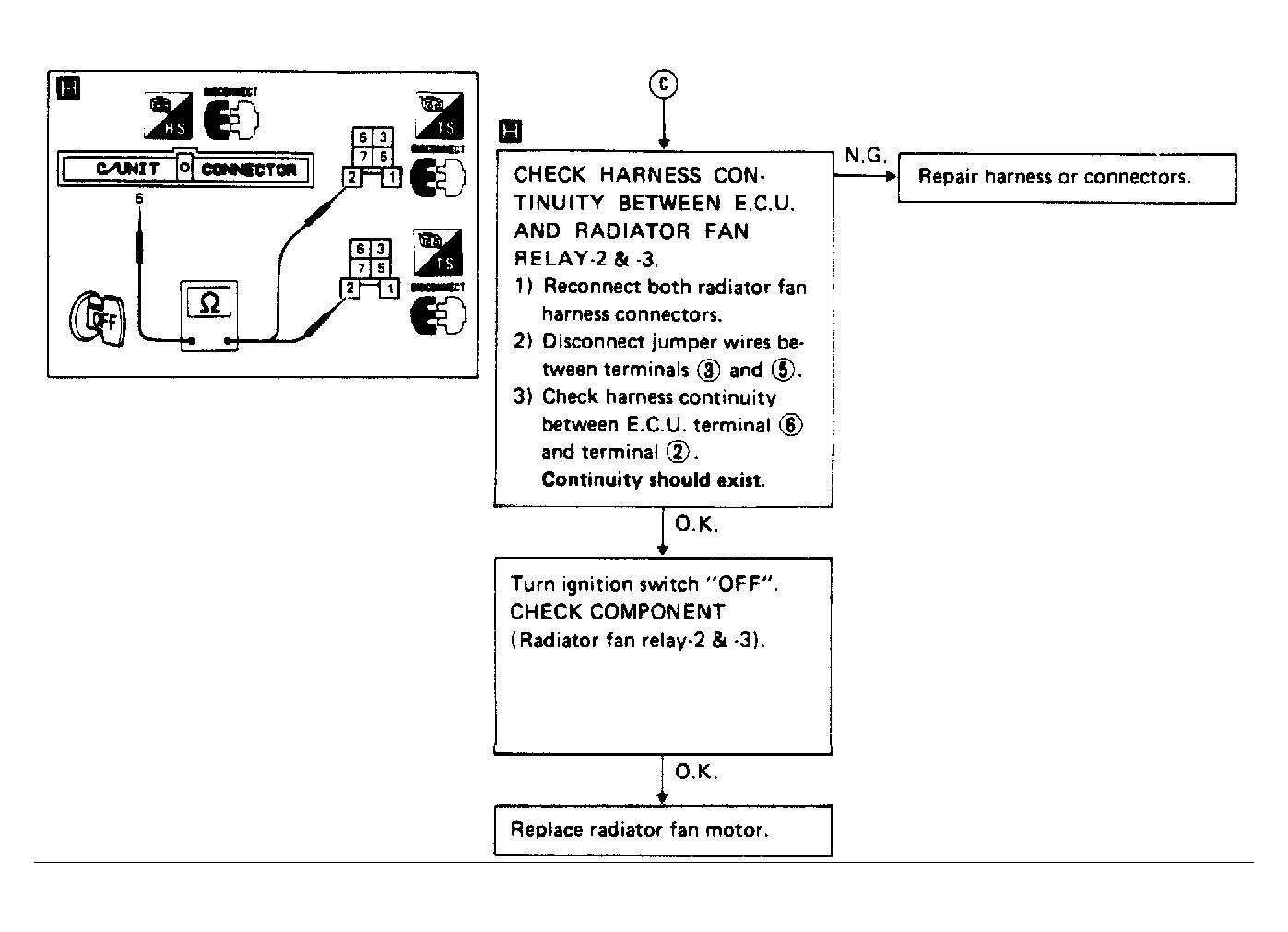

Fig 7: Radiator Cooling Fan Ctrl Flow Chart Maxima SE (7 of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.
