300ZX Base, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - System/Component Tests
>>
Diagnostic Charts
>>
Fuel Pump
Fuel Pump

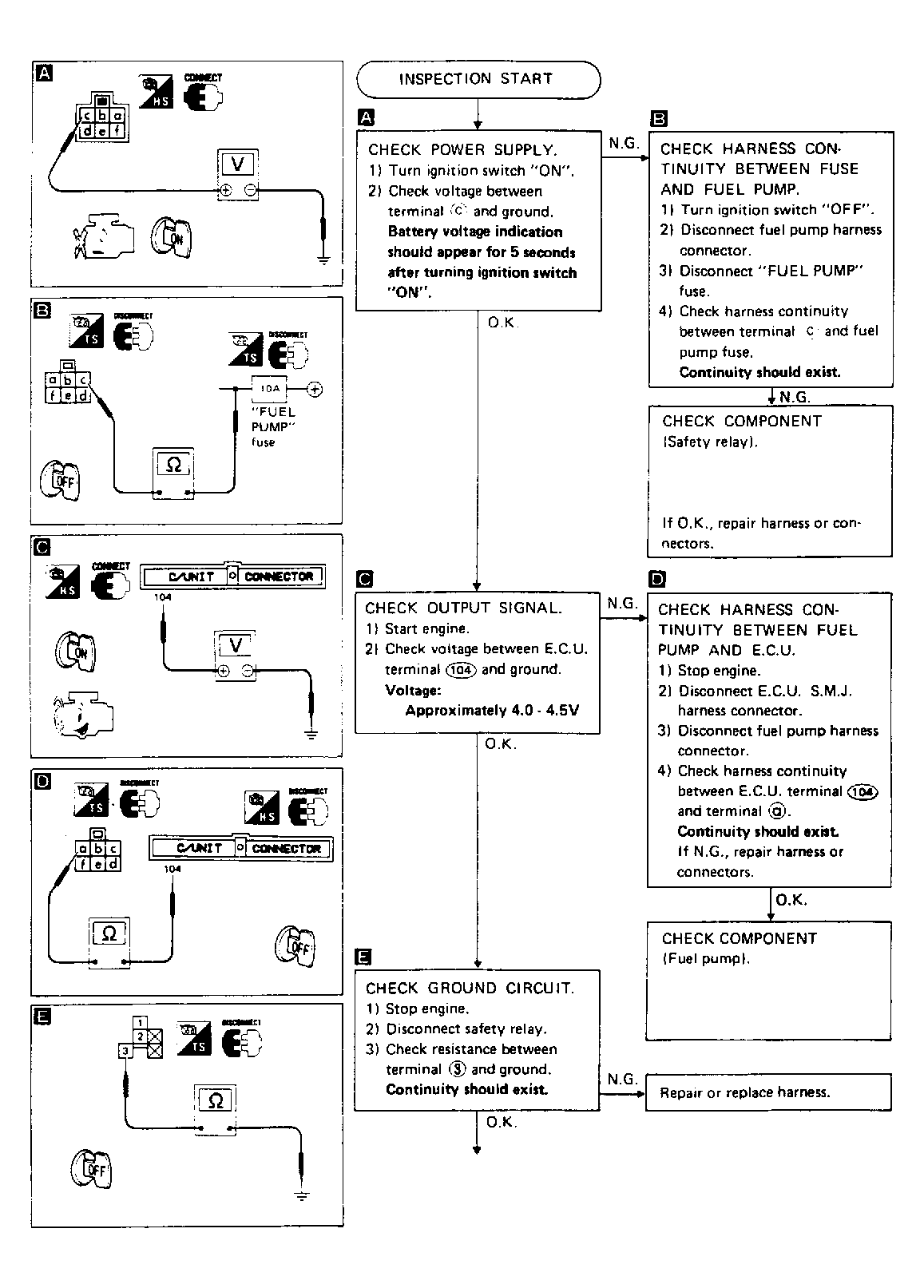

Fig 1: Fuel Pump Flow Chart (1 of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

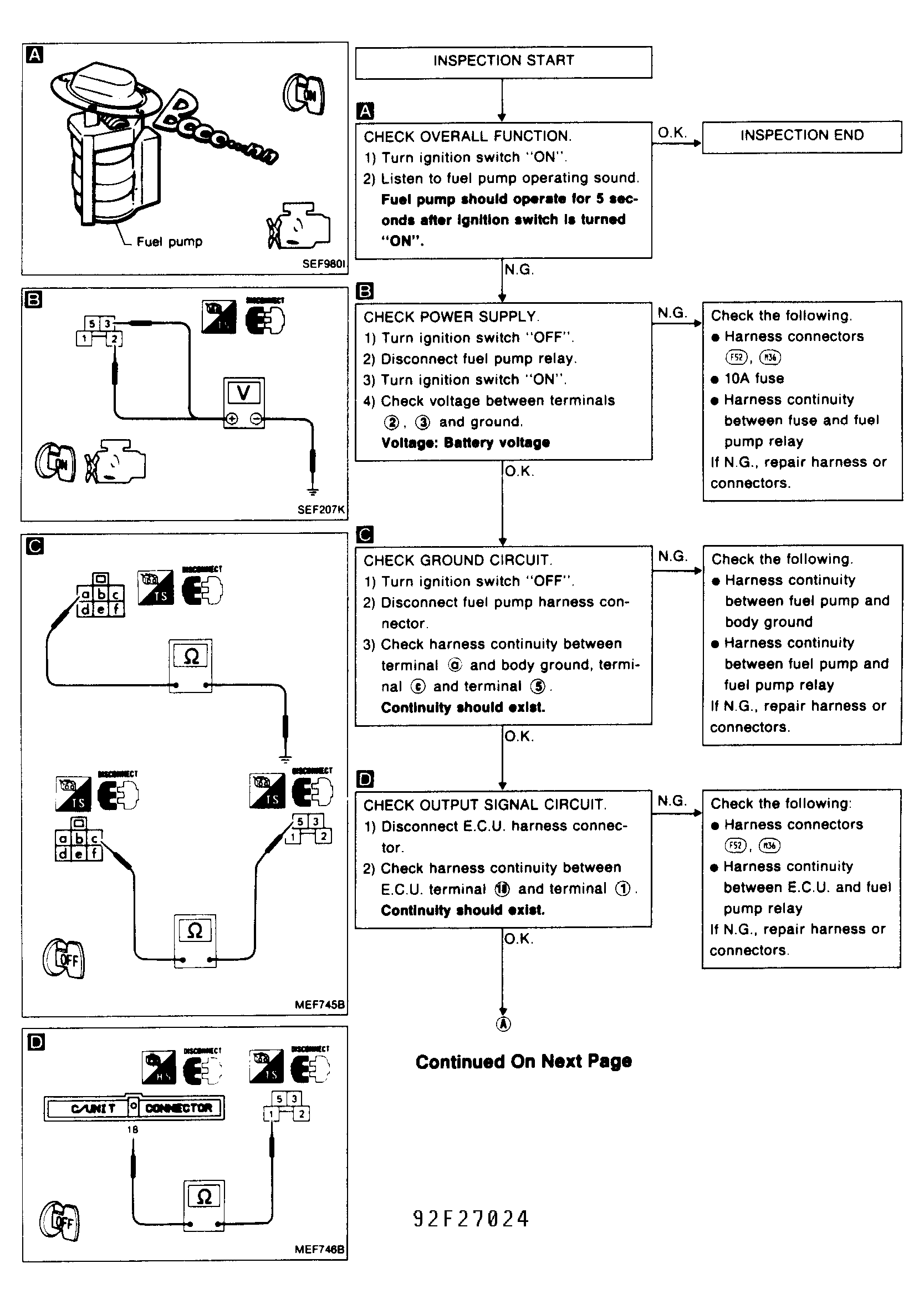

Fig 2: Fuel Pump Flow Chart (2 of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

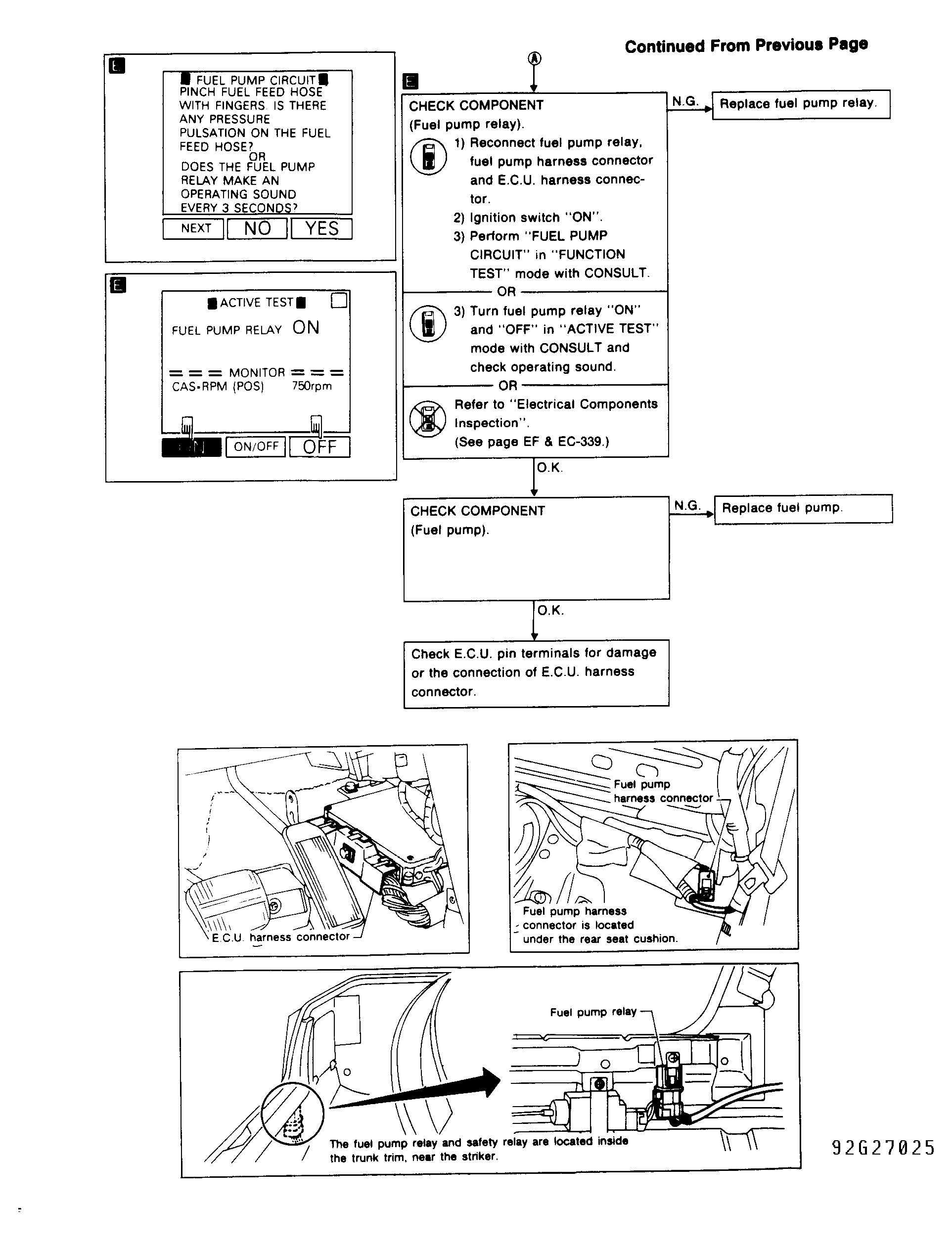

Fig 3: Fuel Pump Flow Chart Maxima SE (3 of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Fuel Pump Flow Chart Maxima SE (4 of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
