300ZX Base, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - System/Component Tests
>>
Diagnostic Charts
>>
Ecu Power Source & Ground Chart
Ecu Power Source & Ground Chart

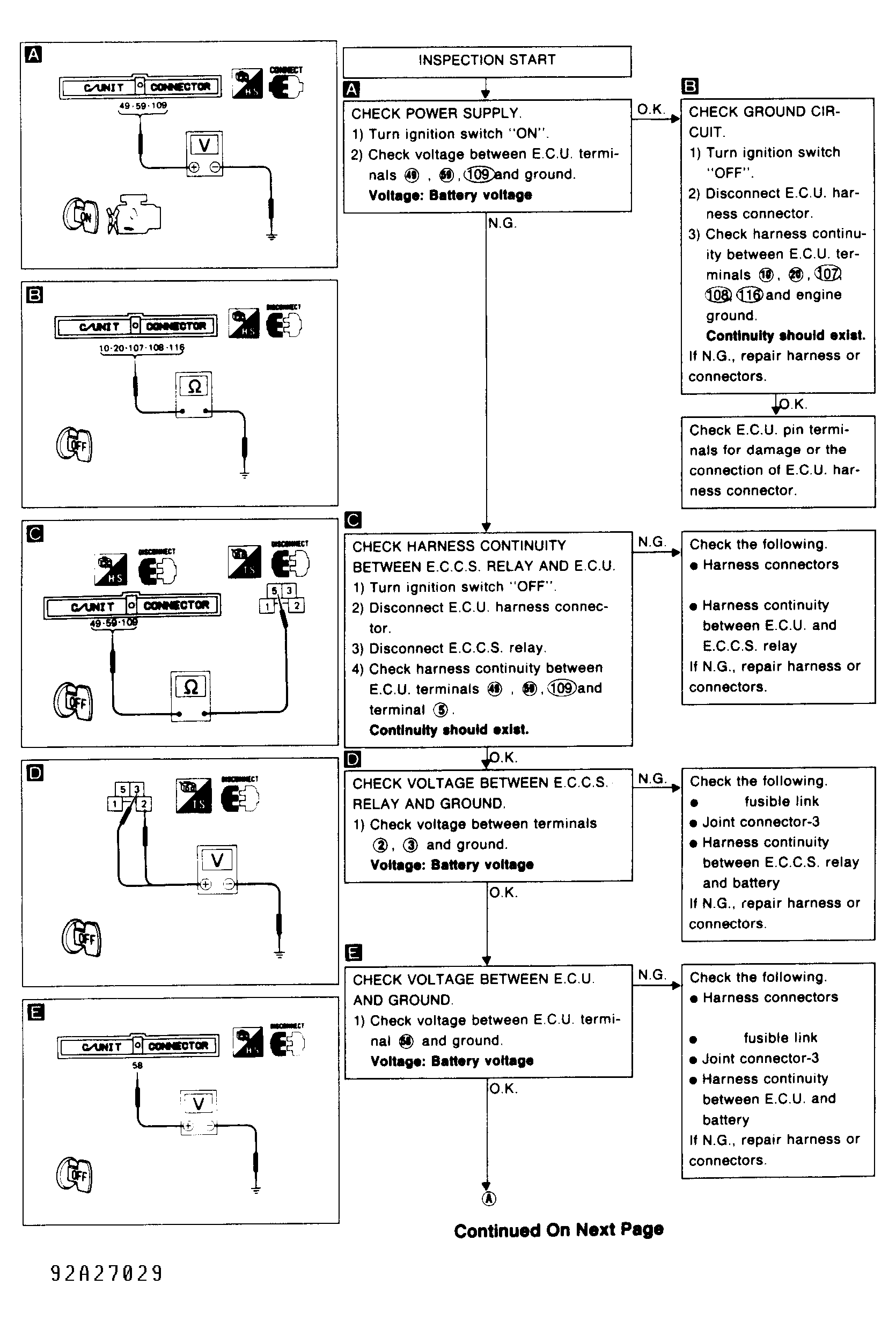

Fig 1: ECU Power Source & Ground Flow Chart (1 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

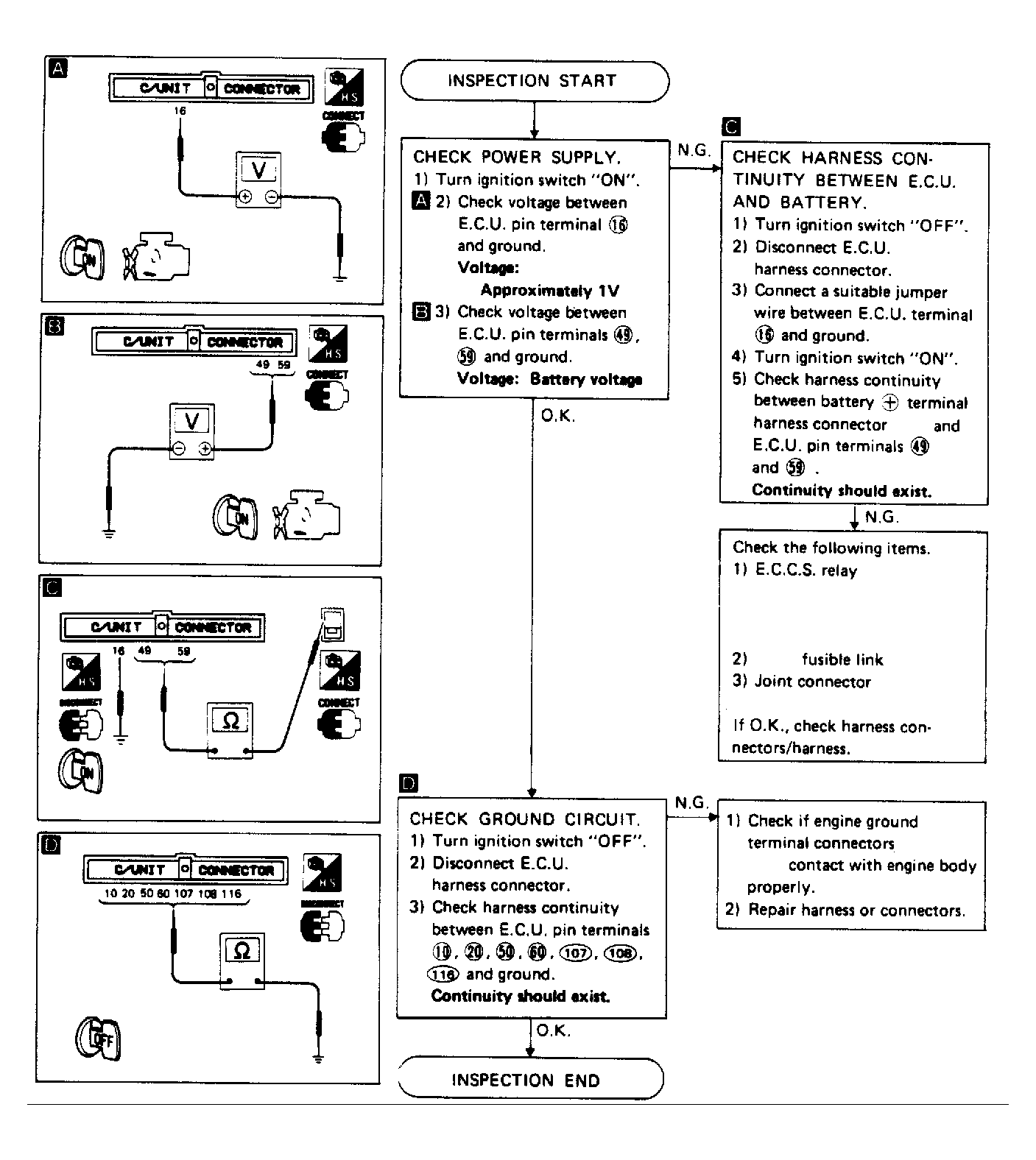

Fig 2: ECU Power Source & Ground Flow Chart Maxima SE (2 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

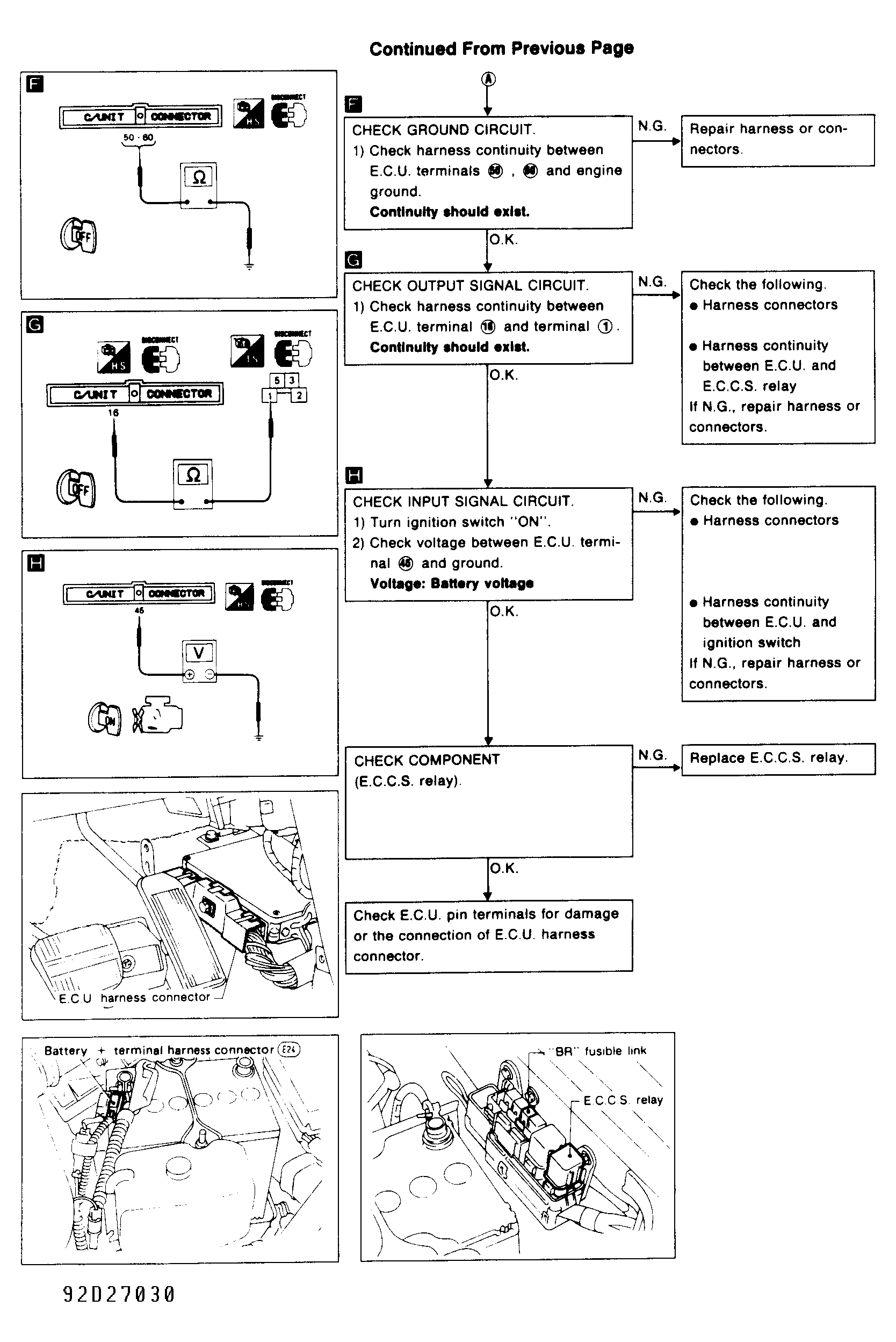

Fig 3: ECU Power Source & Ground Flow Chart Maxima SE (3 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
