Power Window Amplifier

For testing power window amplifier, see Fig 1 .

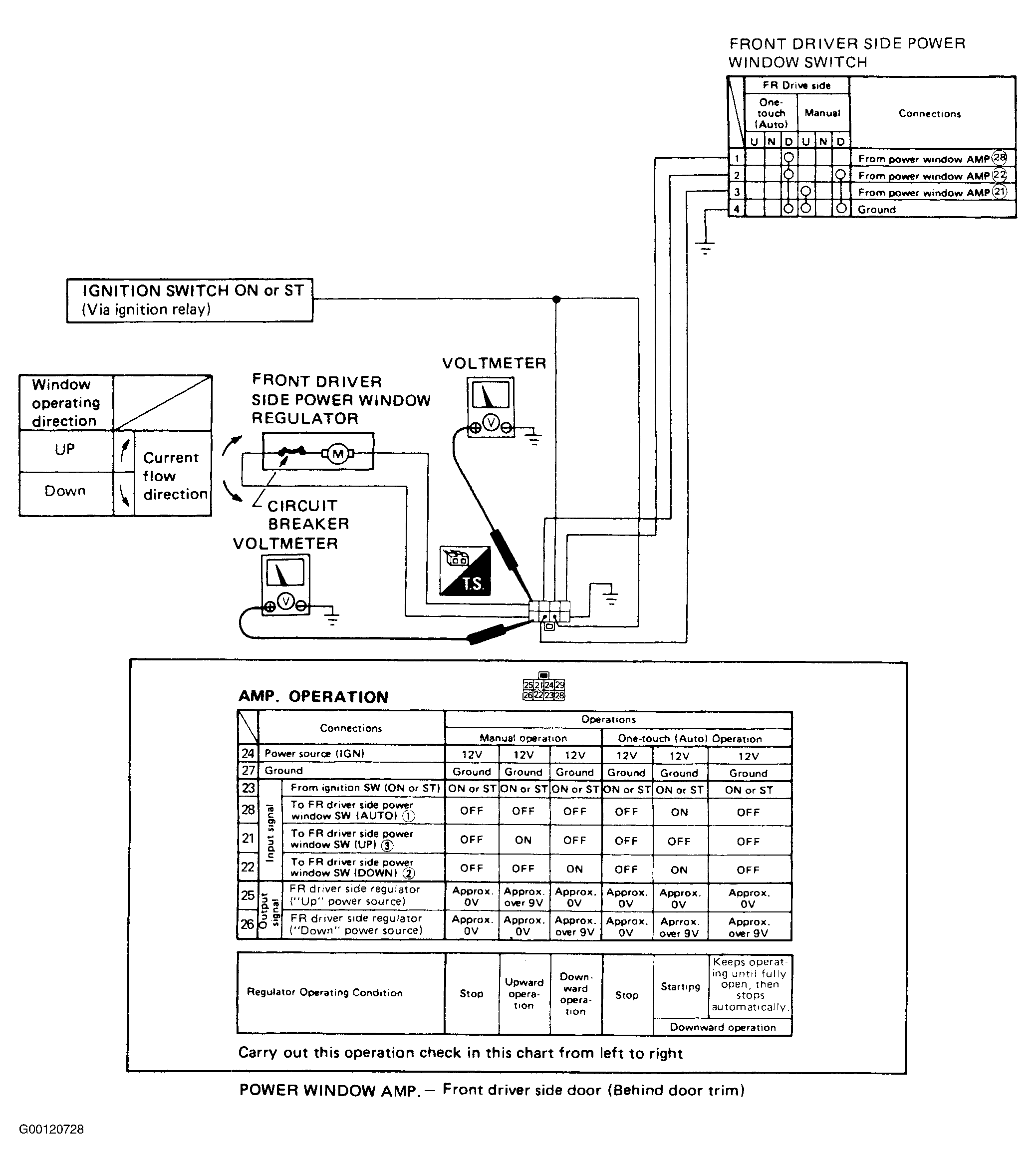

Fig 1: Testing Power Window Amplifier

G00120728

Courtesy of NISSAN MOTOR CO., U.S.A.
