Power Window Motor Operation
Power Window Motor Operation

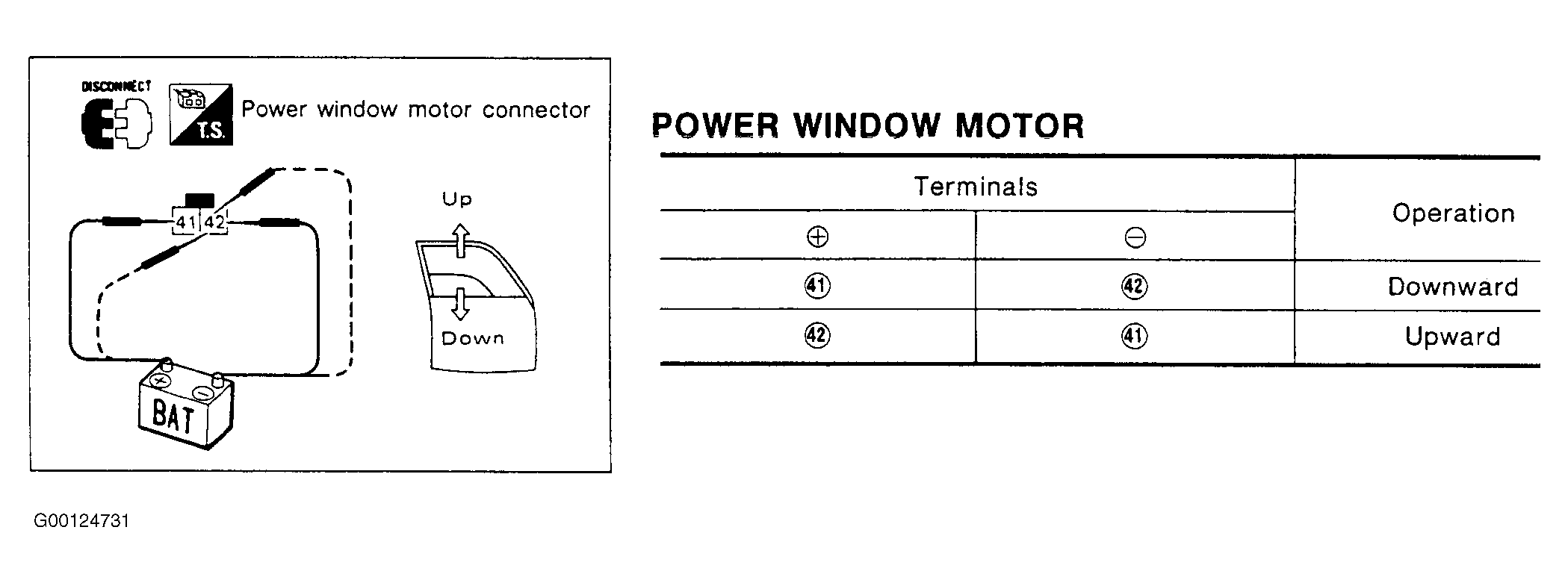

Fig 1: Testing Power Window Motor Operation
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
