COMPONENT LOCATIONS

Component Location
Body Ground B4 Behind Left Kick Panel
Body Ground B26 At Left Side C Pillar, Behind Trim Panel
Body Ground M5 Behind Left Kick Panel. See Fig 2 .
Body Ground M67 Behind Right Kick Panel. See Fig 2 .
Circuit Breaker M6 Behind Left Side Of Instrument Panel. See Fig 2 .
Fig 1: Locating Passenger Compartment Fuse Block
G92H16540

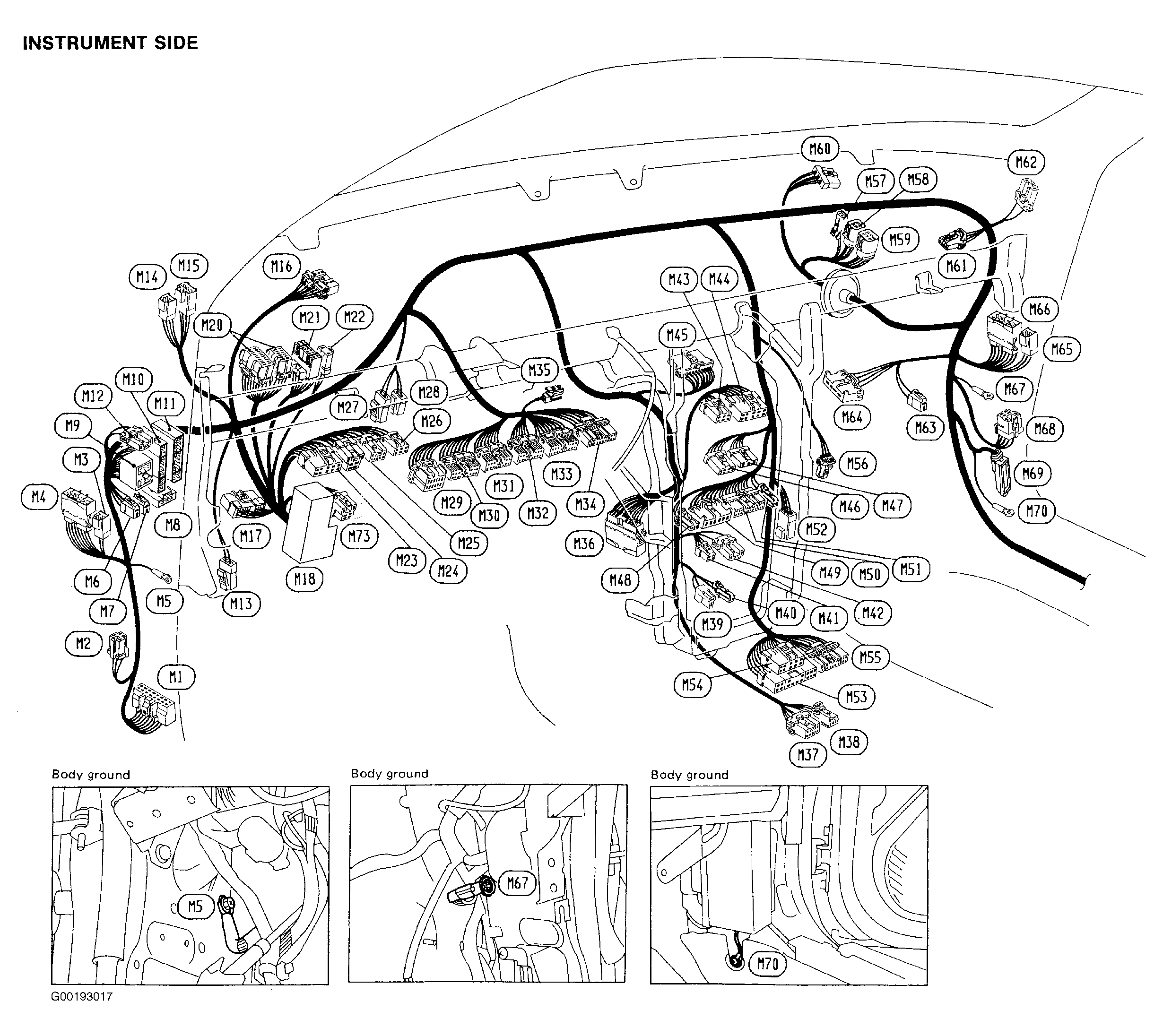

Fig 2: Locating Body Grounds M5 (Left Kick Panel) & M67 (Right Kick Panel) & Circuit Breaker M6
G00193017Courtesy of NISSAN MOTOR CO., U.S.A.

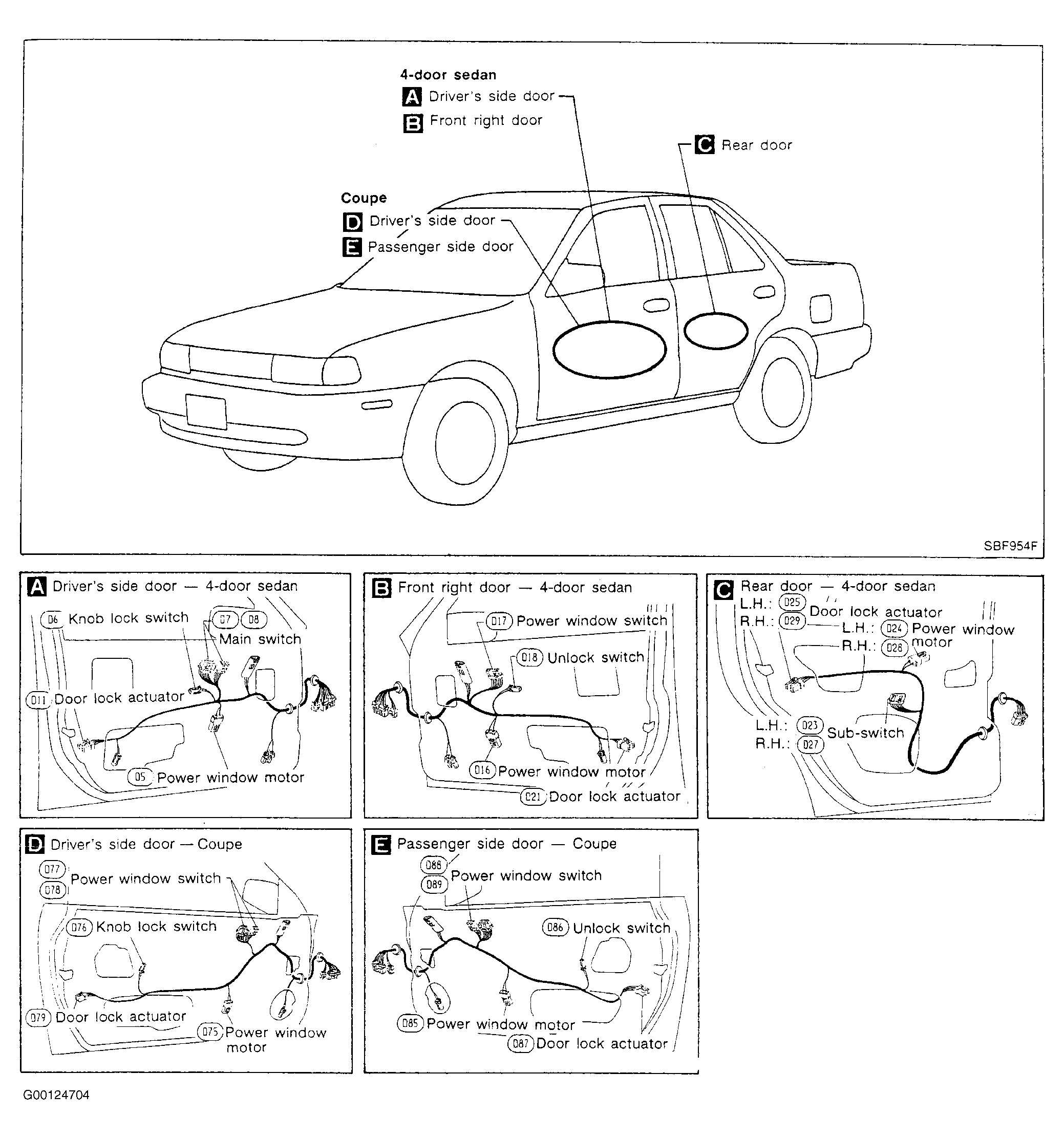

Fig 3: Power Lock & Window Harness Layout
G00124704Courtesy of NISSAN MOTOR CO., U.S.A.
