Lock-Up Cancel Chart

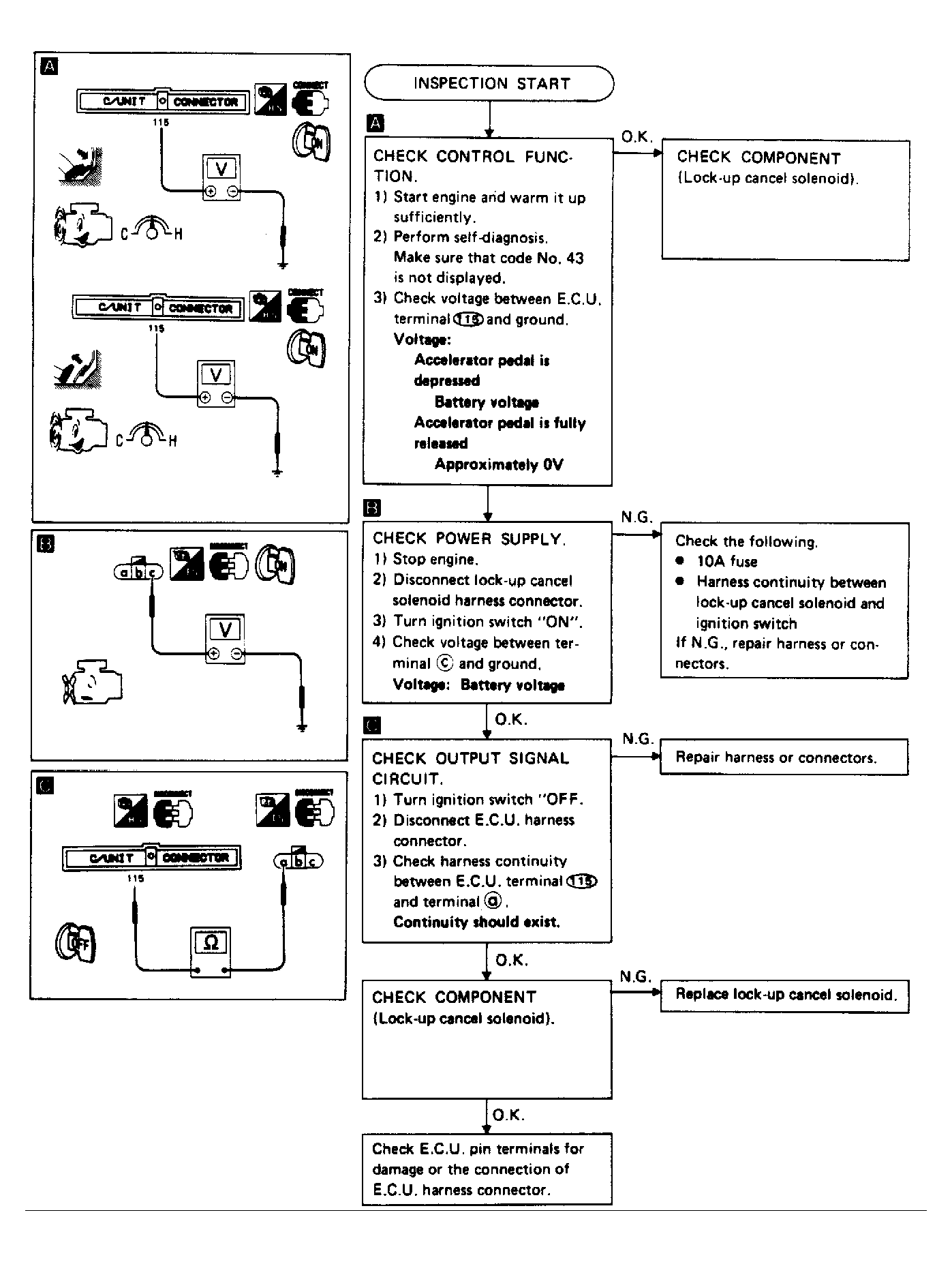

Fig 1: Lock-Up Cancel Diagnostic Chart (Pickup 2.4L)

G90B20728

Courtesy of NISSAN MOTOR CO., U.S.A.
