Pathfinder SE, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - System/Component Tests
>>
Diagnostic Charts
>>
Injector Malfunction Chart
Injector Malfunction Chart

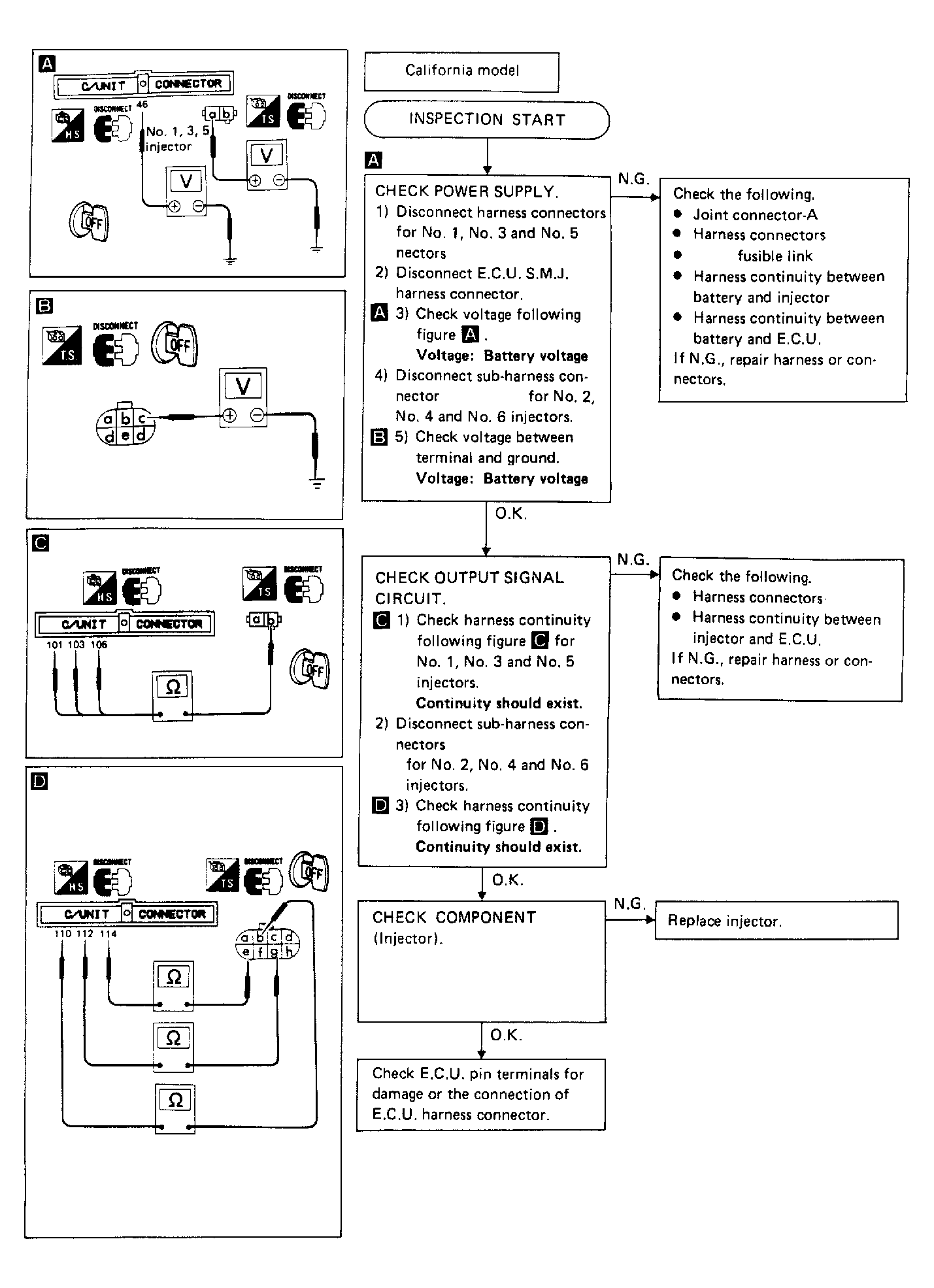

Fig 1: Injector Malfunction Diagnostic Chart (2.4L)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Injector Malfunction Diagnostic Chart (3.0L) (1 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Injector Malfunction Diagnostic Chart (3.0L) (2 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Injector Malfunction Diagnostick Chart (3.0L) (3 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
