Neutral/Inhibitor Switch Chart
Neutral/Inhibitor Switch Chart

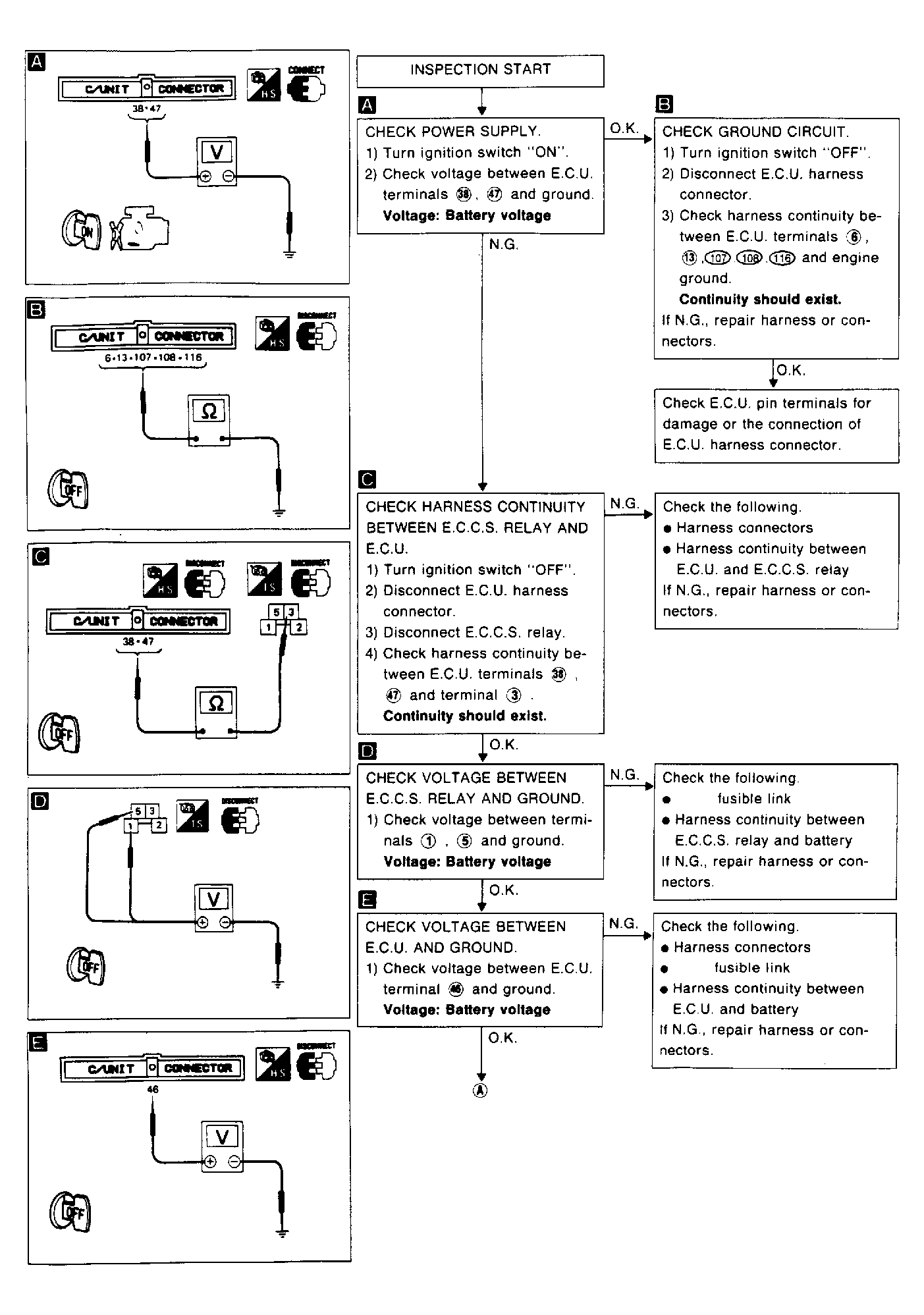

Fig 1: Neutral Switch & A/T Control Diagnostic Chart (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

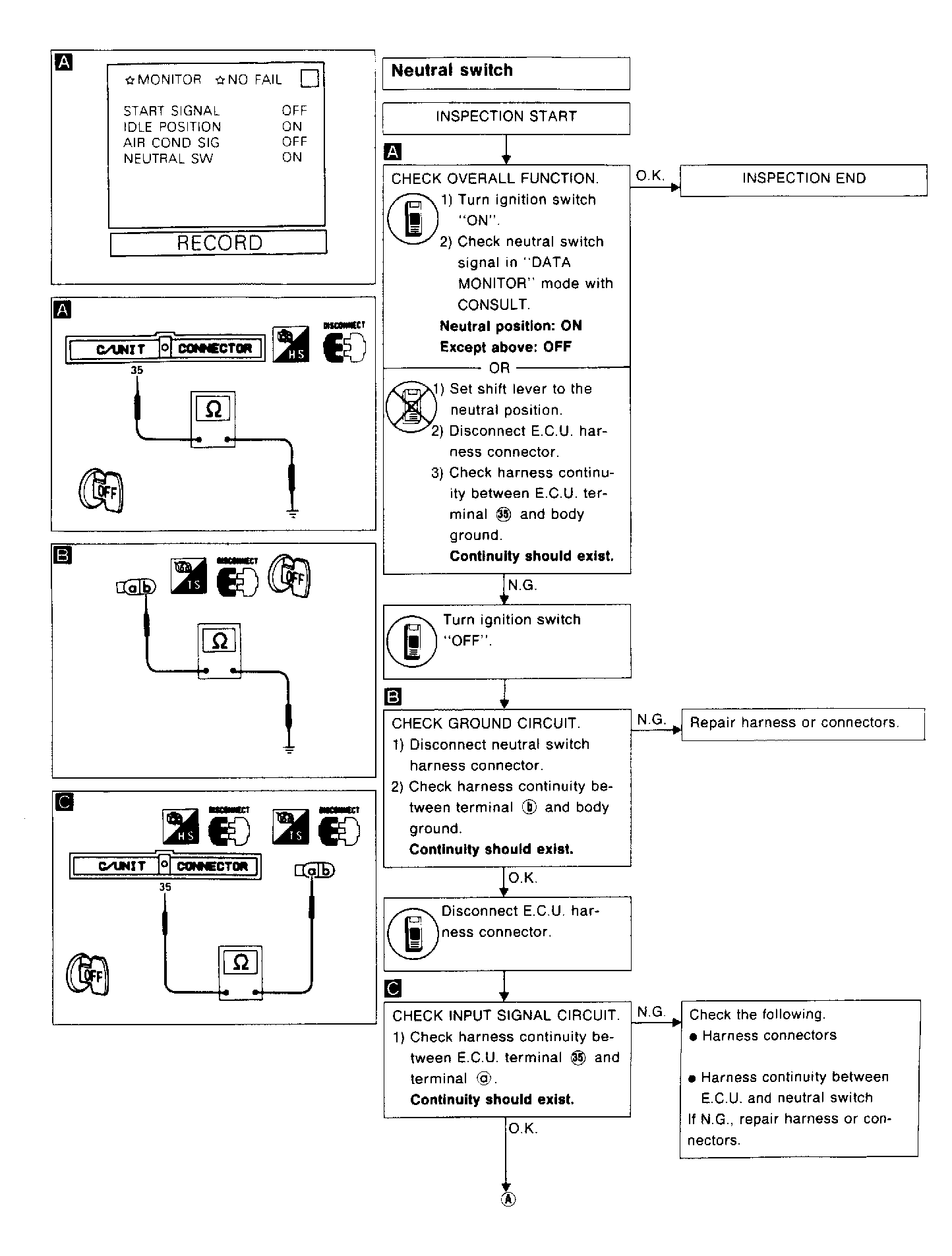

Fig 2: Neutral Switch & A/T Control Diagnostic Chart (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Neutral Switch & A/T Control Diagnostic Chart (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
