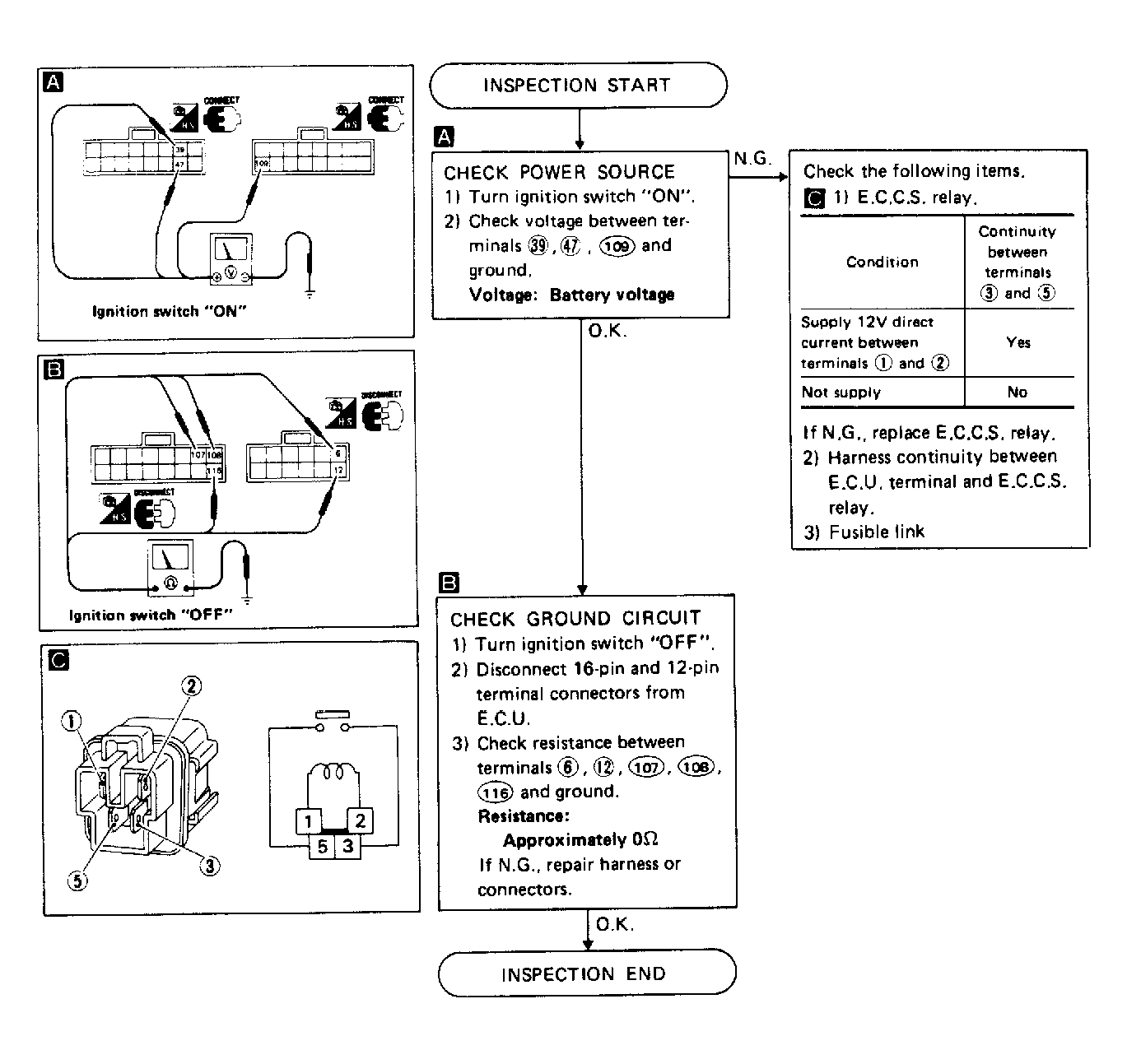

Home >> Nissan-Datsun >> 1990 >> Sentra SE, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - System/Component Tests >> Diagnostic Charts >> Ecu Power Source & Ground Chart
