Pulsar, SENTRA

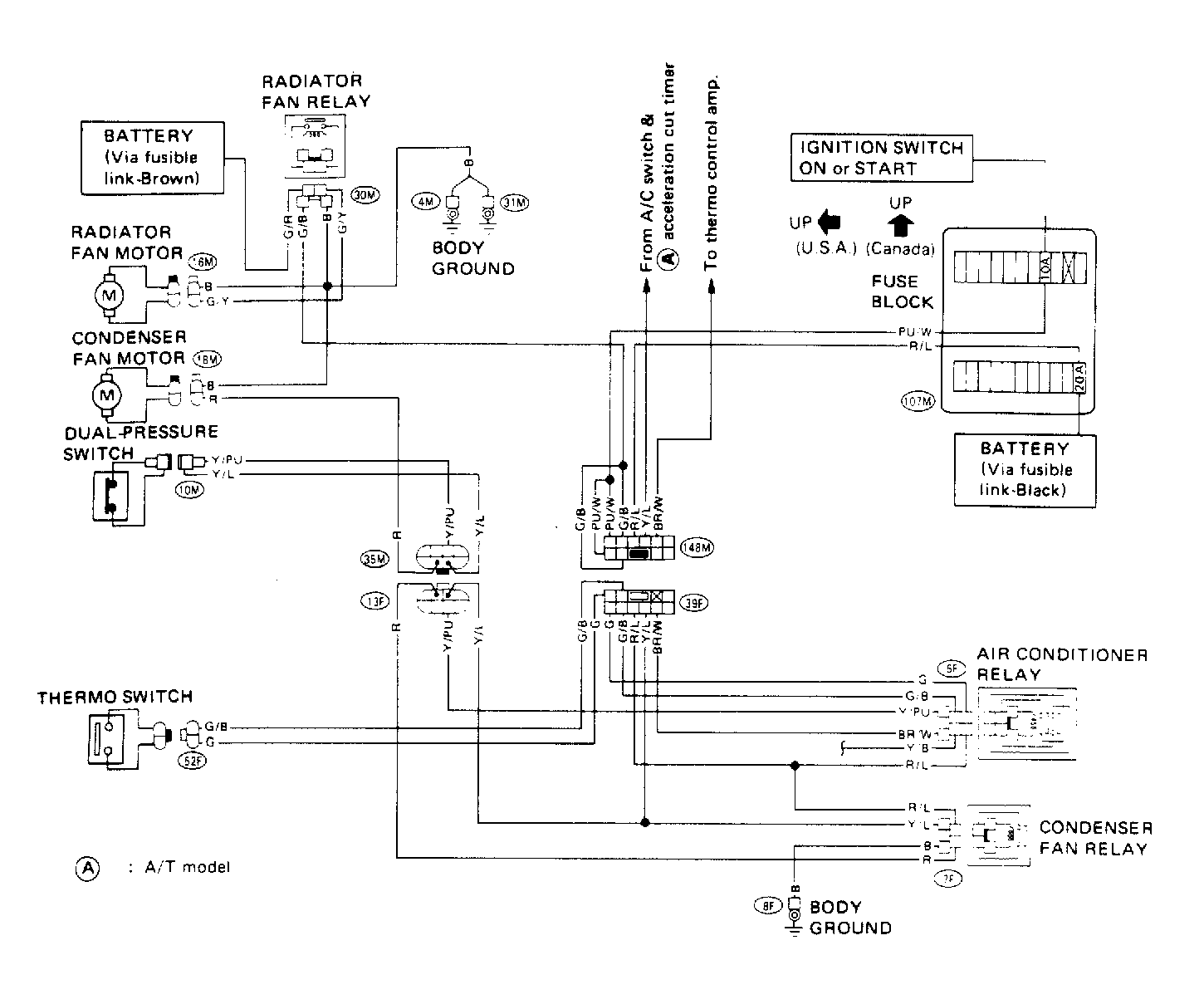

Warm engine to operating temperature. Cooling fan should come on. Engage A/C clutch using A/C switch in passenger compartment. Condenser cooling fan should come on. If not, check power supplies, grounds, relays, radiator fan switches and motors. If no faults are found, check component wiring. See Figure .
