System Testing: 240SX

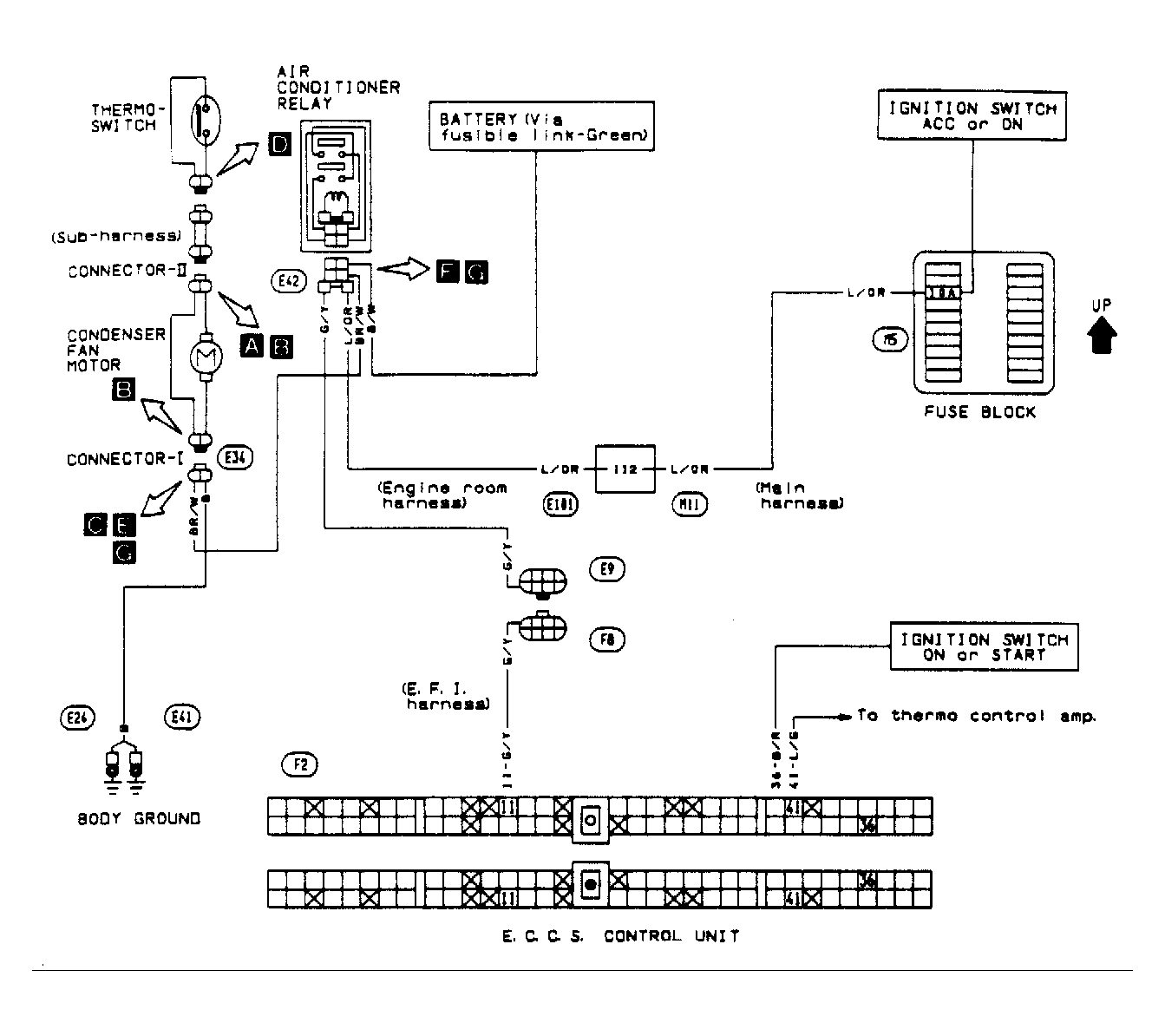

Warm engine to operating temperature. Engage A/C clutch using A/C switch in passenger compartment. Cooling fan should run. If not, check power supplies, grounds, relay, radiator fan switch and motor. If no faults are found, check component wiring. See Figure .
