Code 41: Air Temp. Sensor (4-CYL.)

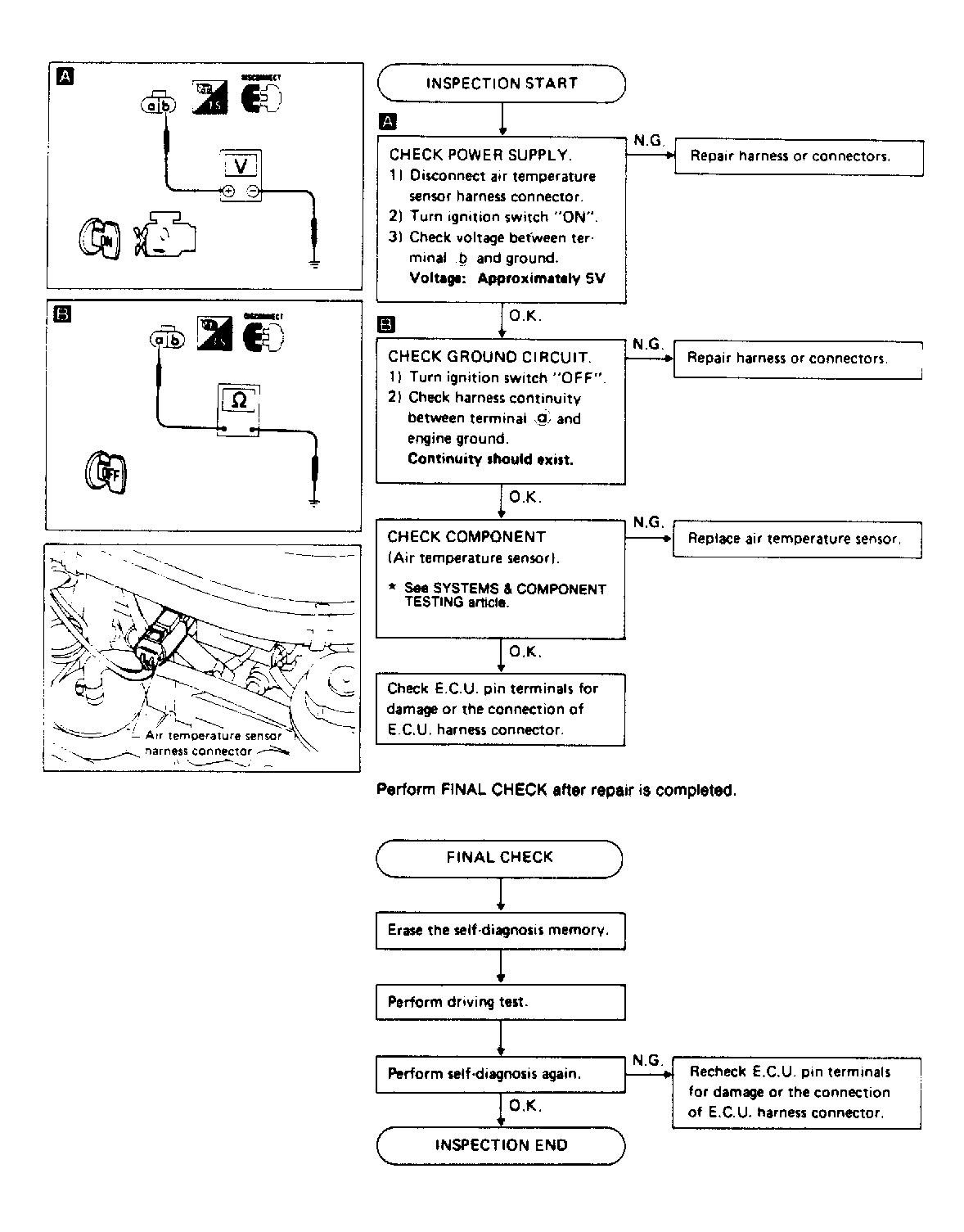

Fig 1: Code 41: Air Temp Sensor Test (4-Cyl)

G90J19710

Courtesy of NISSAN MOTOR CO., U.S.A.
