Code 35: EGR Temp. Sensor (CALIF. 4-CYL)

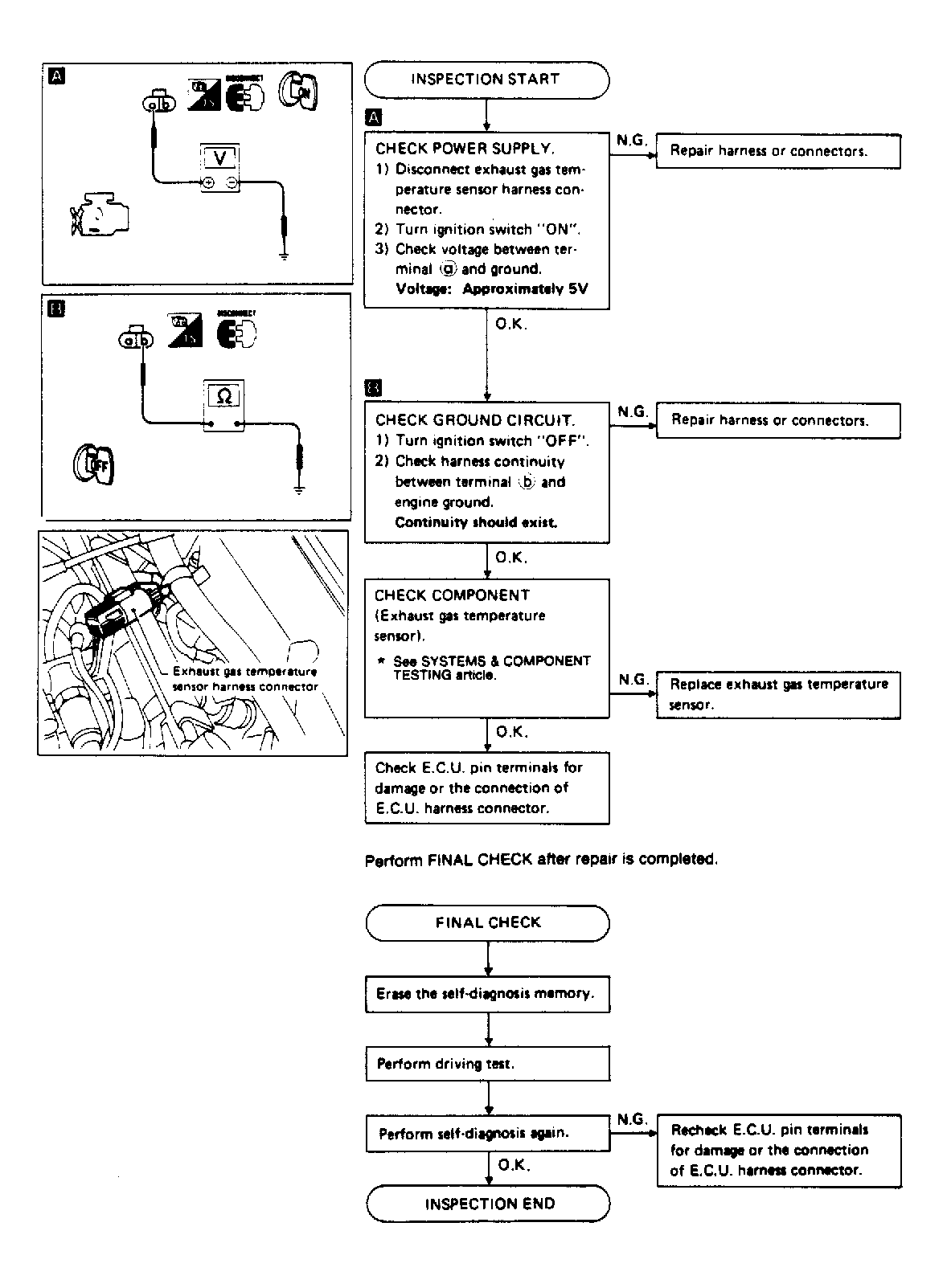

Fig 1: Code 35: EGR Temp Sensor Test (Calif 4-Cyl)

G90G19709

Courtesy of NISSAN MOTOR CO., U.S.A.
