Code 12: Mass Airflow Sensor

NOTE: On 4-cylinder Pickup, test between terminal "C" and ground in step "A". Test between terminal "A" and terminal No. 16 in step "C".

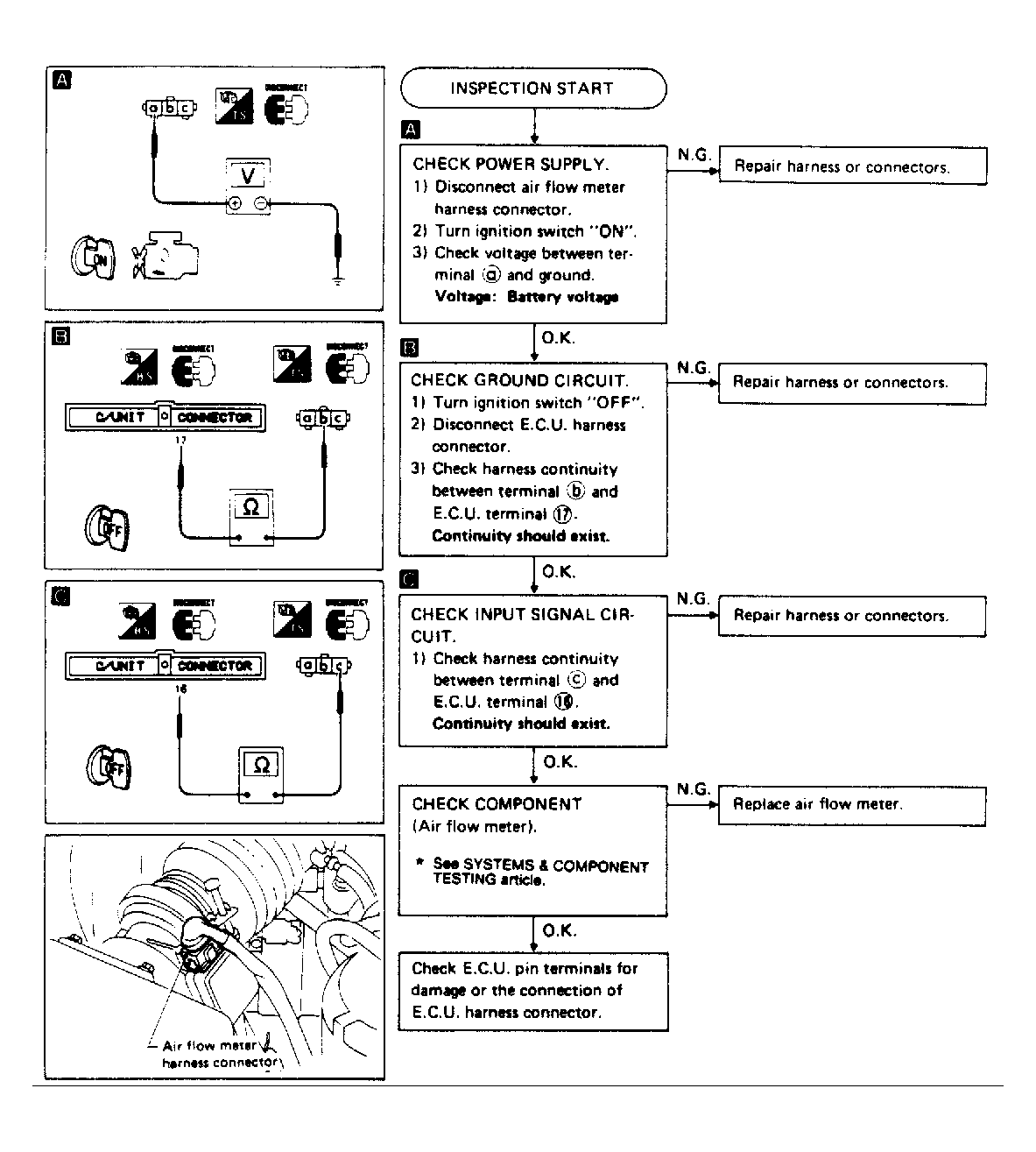

Fig 1: Code 12: Mass Airflow Sensor Test
G90B19696Courtesy of NISSAN MOTOR CO., U.S.A.
