Home
>>
Nissan-Datsun
>>
1990
>>
Pathfinder SE, 2D Utility, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes
>>
Code Charts
>>
Code 11: Crank Angle Sensor
Code 11: Crank Angle Sensor

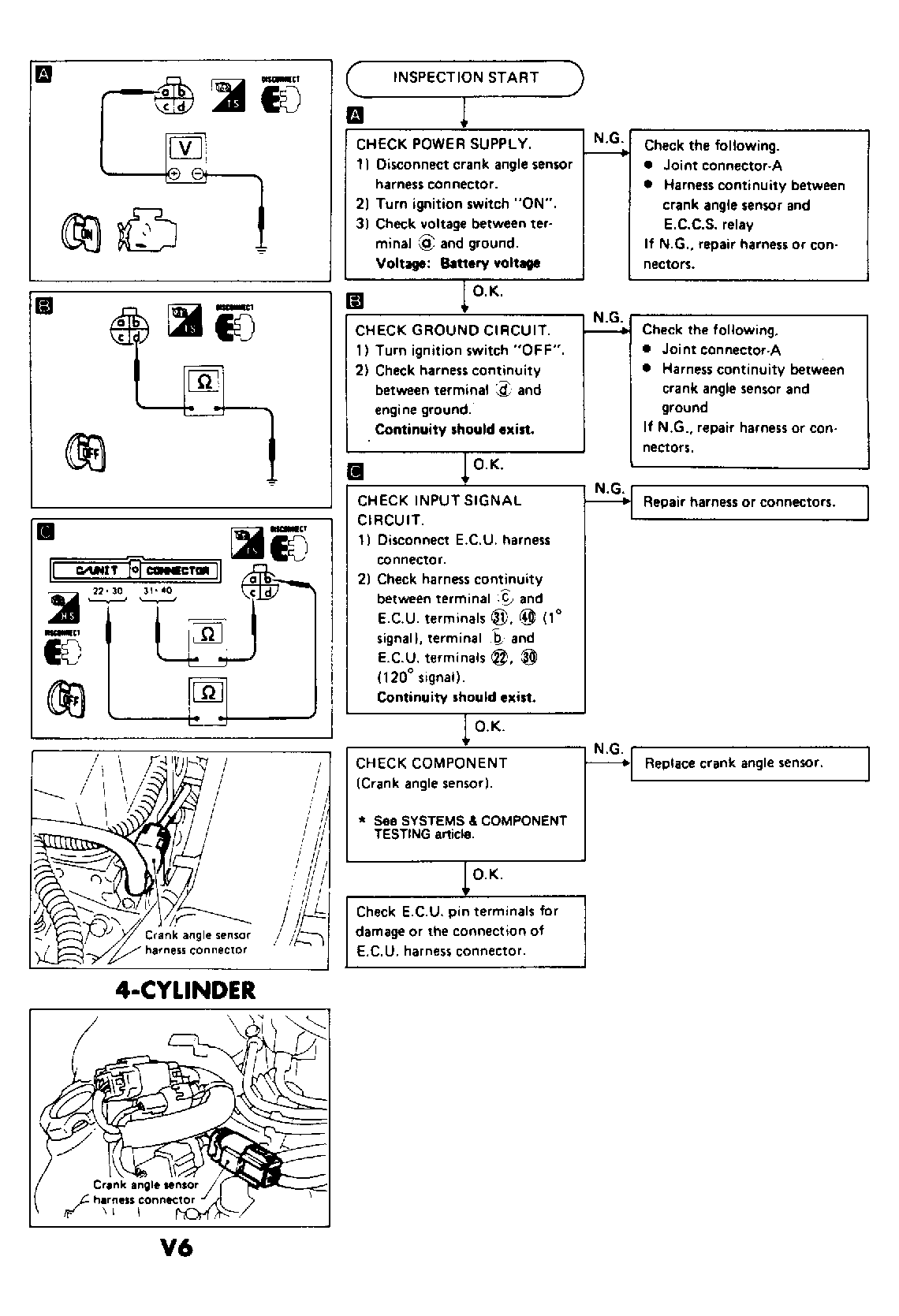

Fig 1: Code 11: Crank Angle Sensor Test
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
