EGR Control Chart
EGR Control Chart

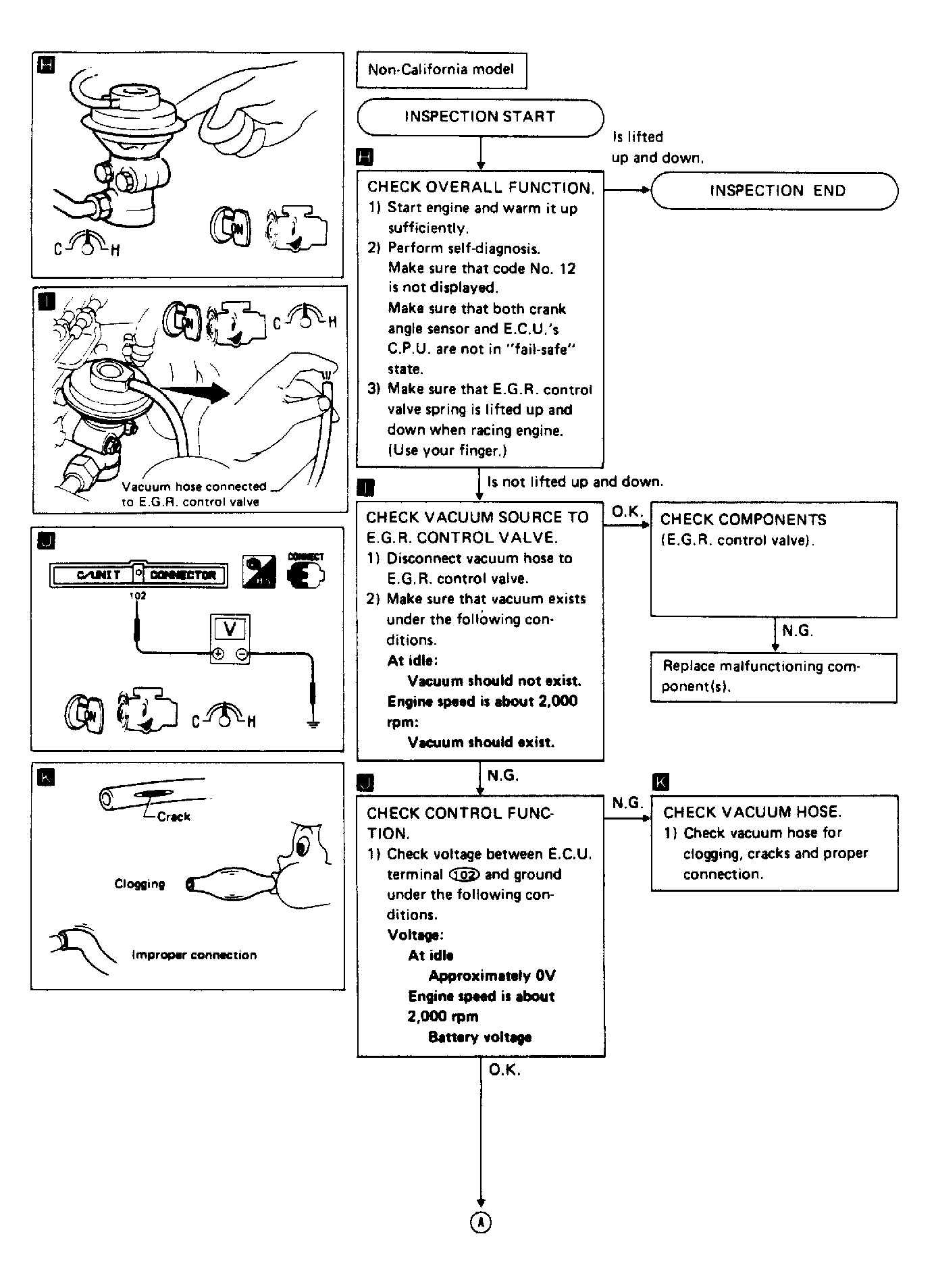

Fig 1: 4-Cyl EGR Control Diagnostic Chart (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

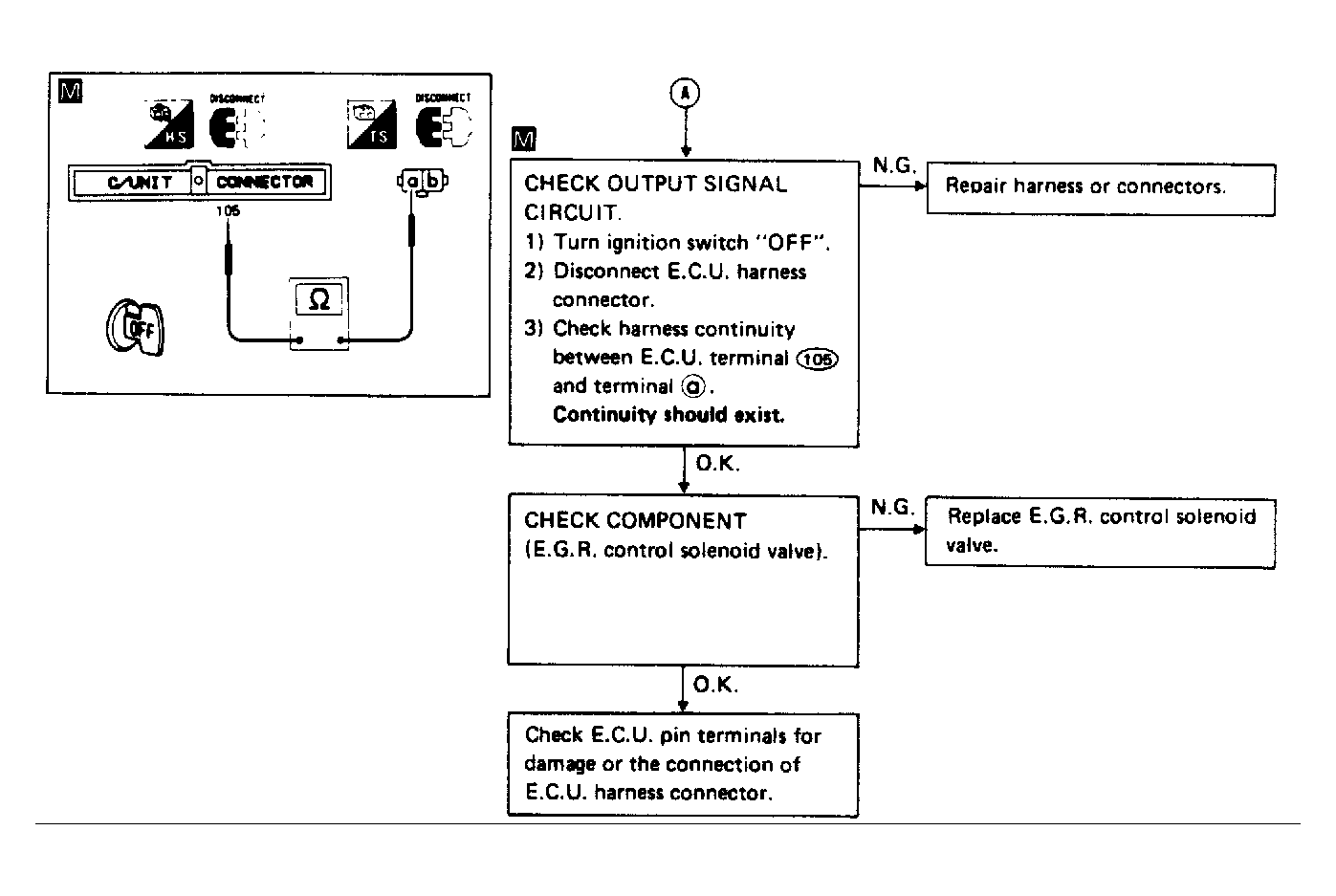

Fig 2: 4-Cyl EGR Control Diagnostic Chart (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

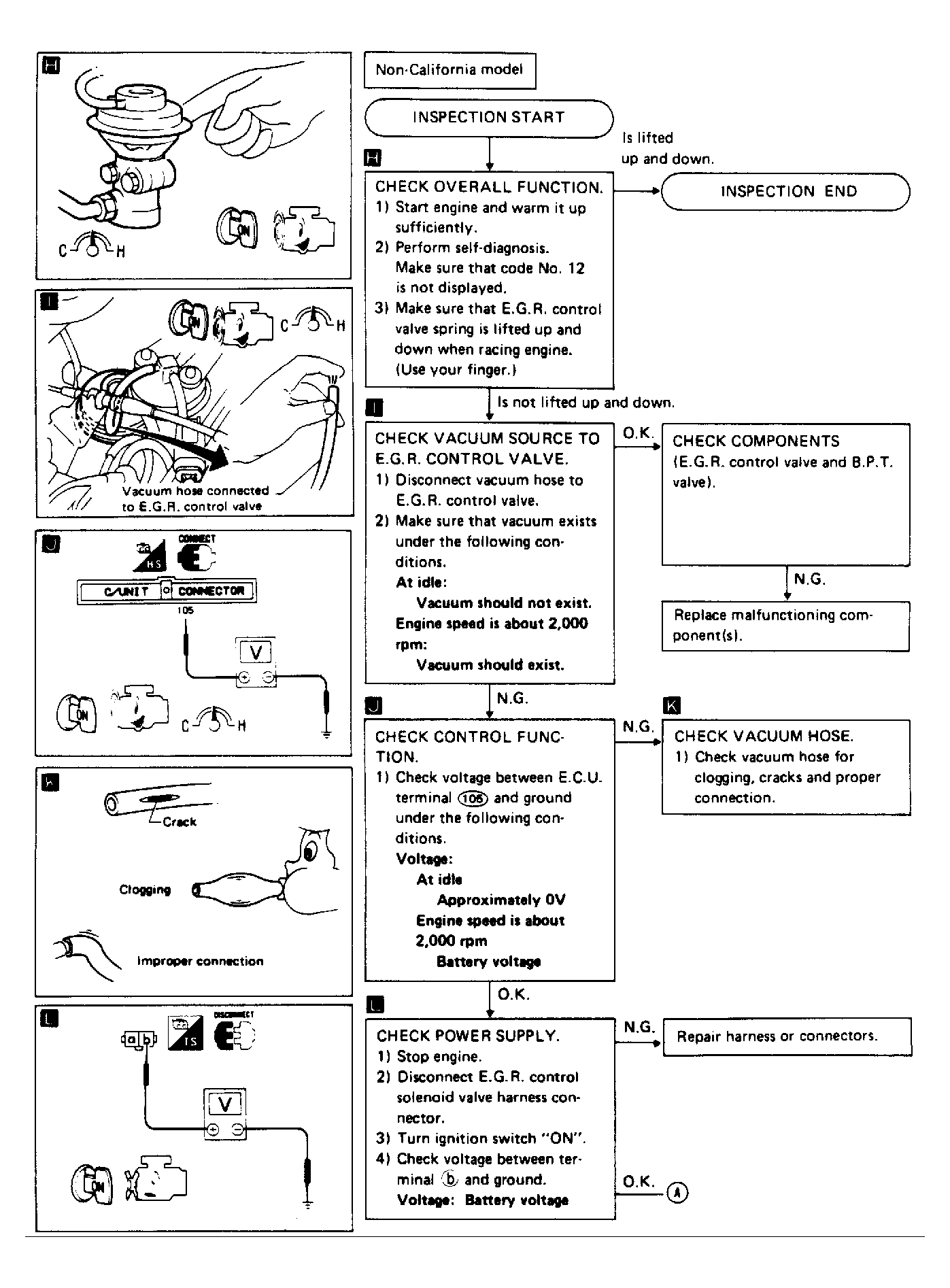

Fig 3: V6 EGR Control Diagnostic Chart (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

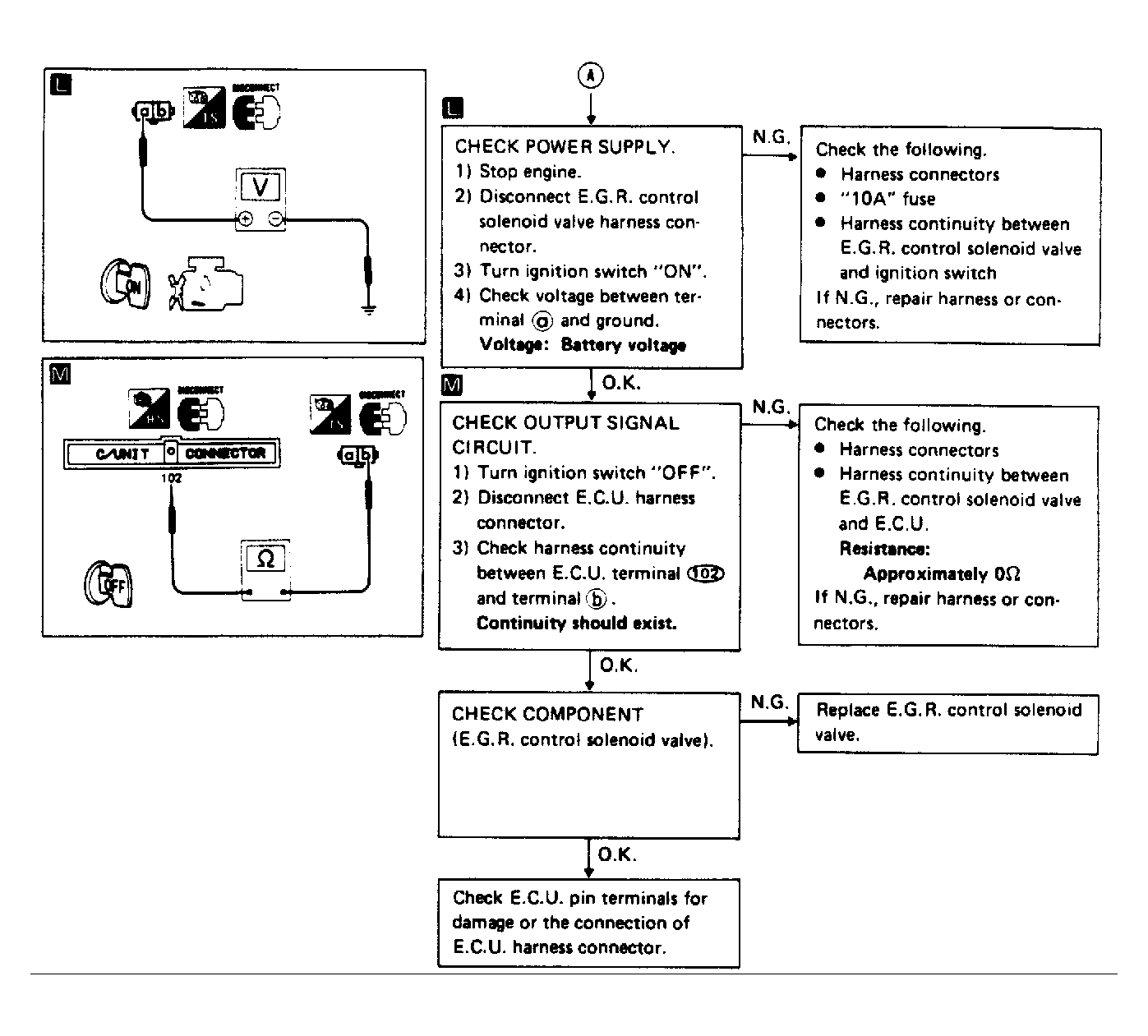

Fig 4: V6 EGR Control Diagnostic Chart (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
