Code 35: EGR Temp. Sensor (CALIF.)
Code 35: EGR Temp. Sensor (CALIF.)

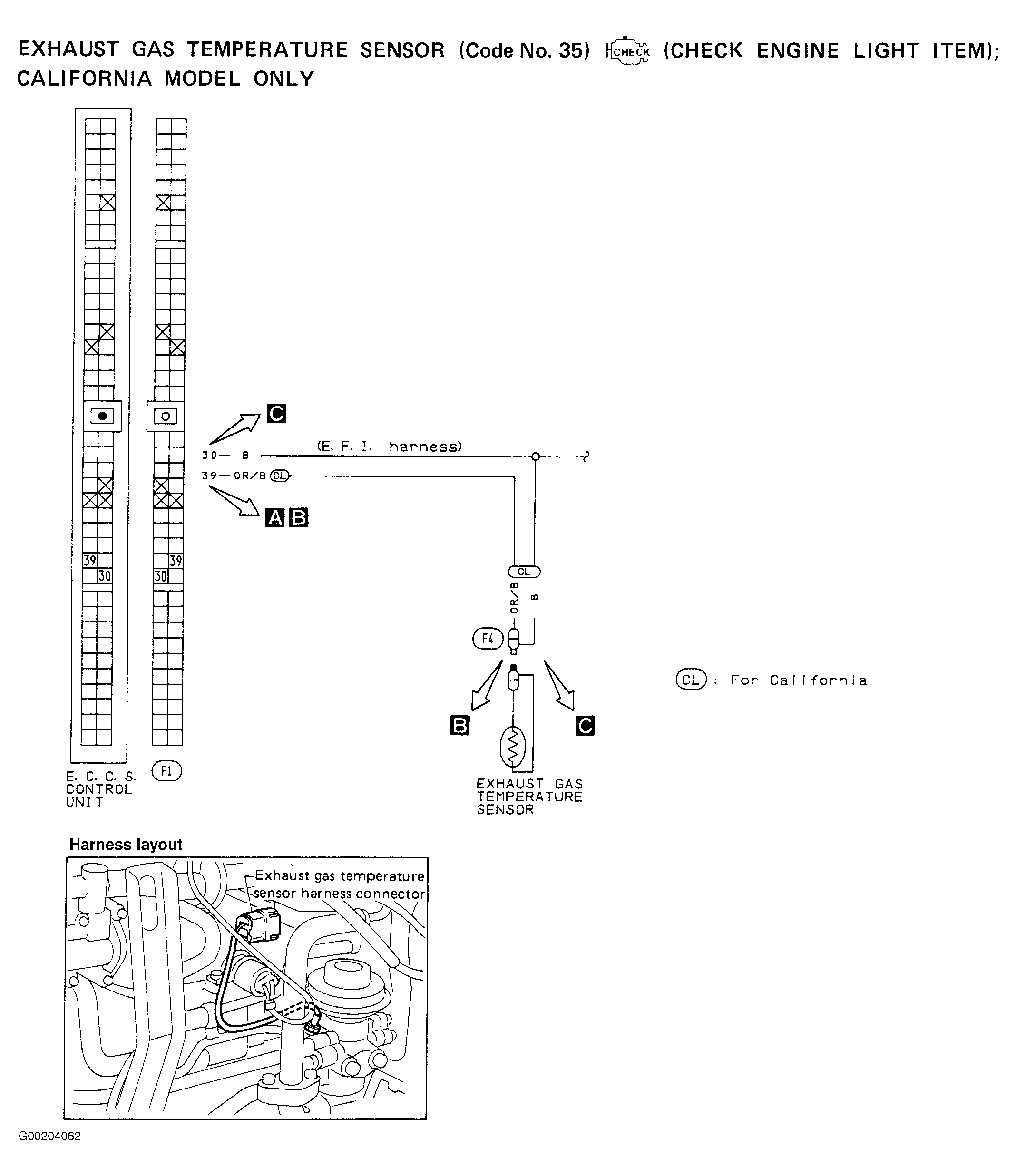

Fig 1: Code 35: EGR Temp Sensor Test - California (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Code 35: EGR Temp Sensor Test - California (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
