Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse/Relay Block

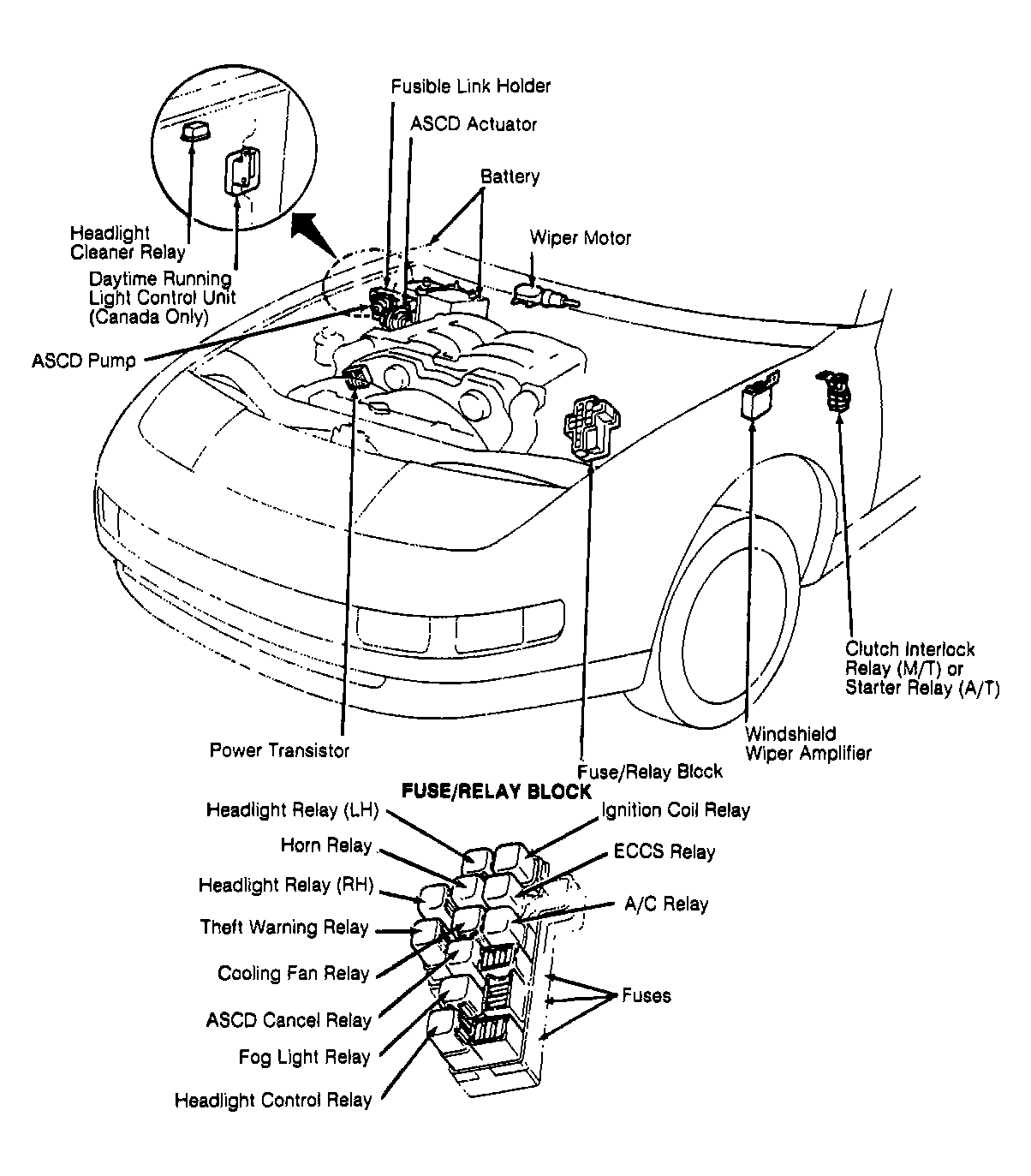

Engine Compartment On left front corner of engine compartment. See Figure.

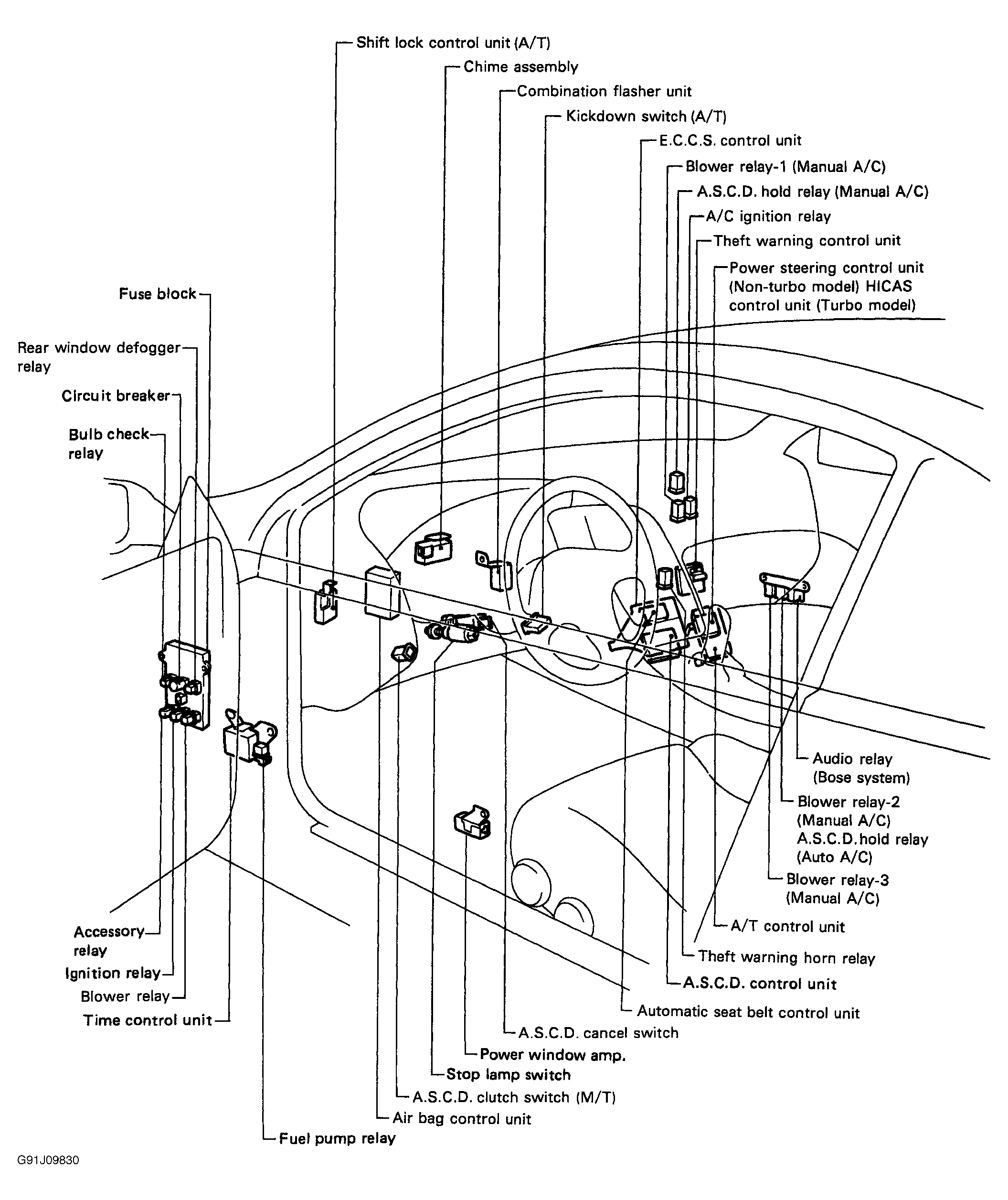

Passenger Compartment Behind left kick panel. See Figure.
Fusible Links On bracket, next to battery. See Figure.
