Code 32: EGR Sensor (CALIF)
Code 32: EGR Sensor (CALIF)

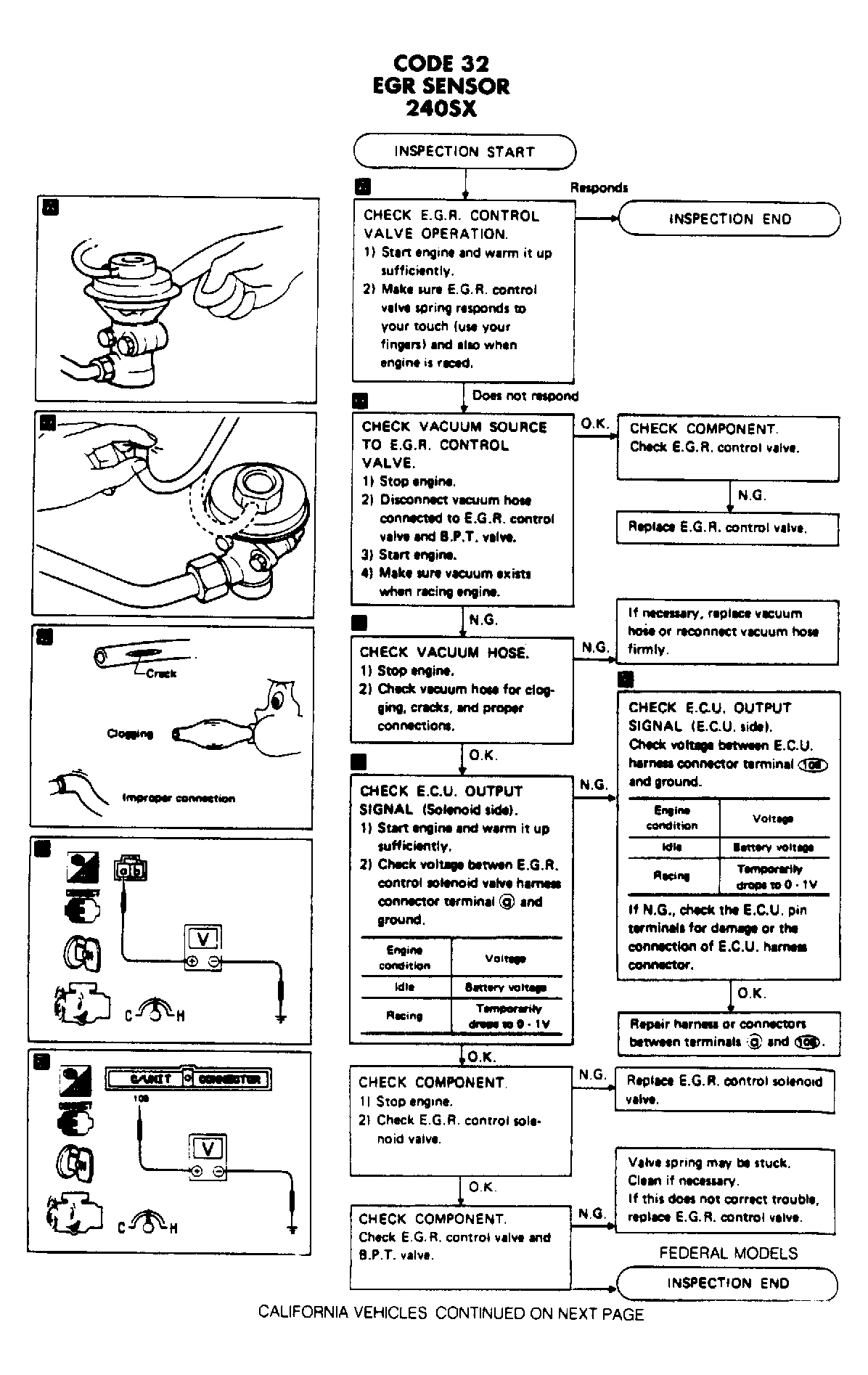

Fig 1: Code 32: EGR Sensor 240SX (Calif) (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

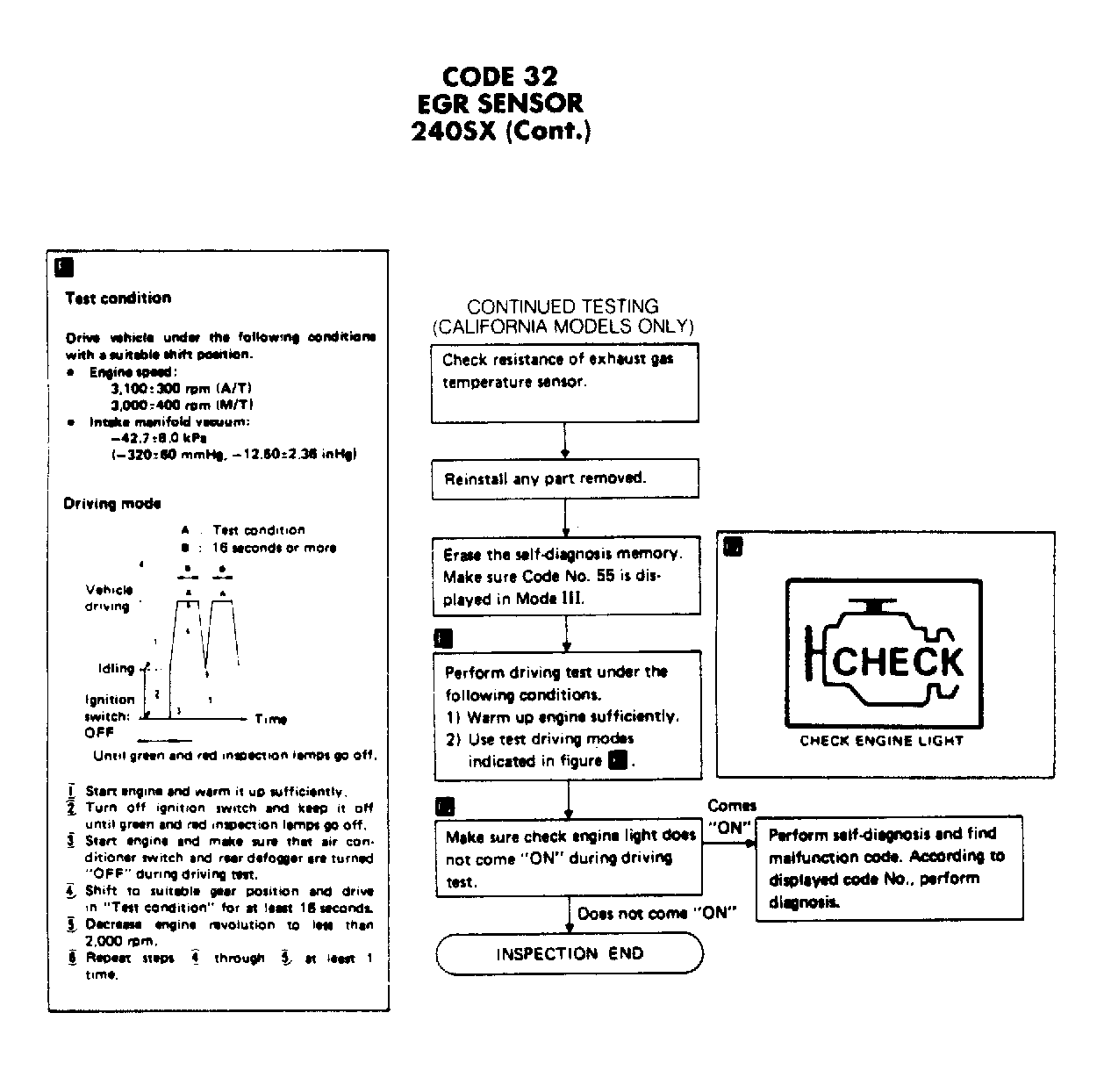

Fig 2: Code 32: EGR Sensor 240SX (Calif) (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

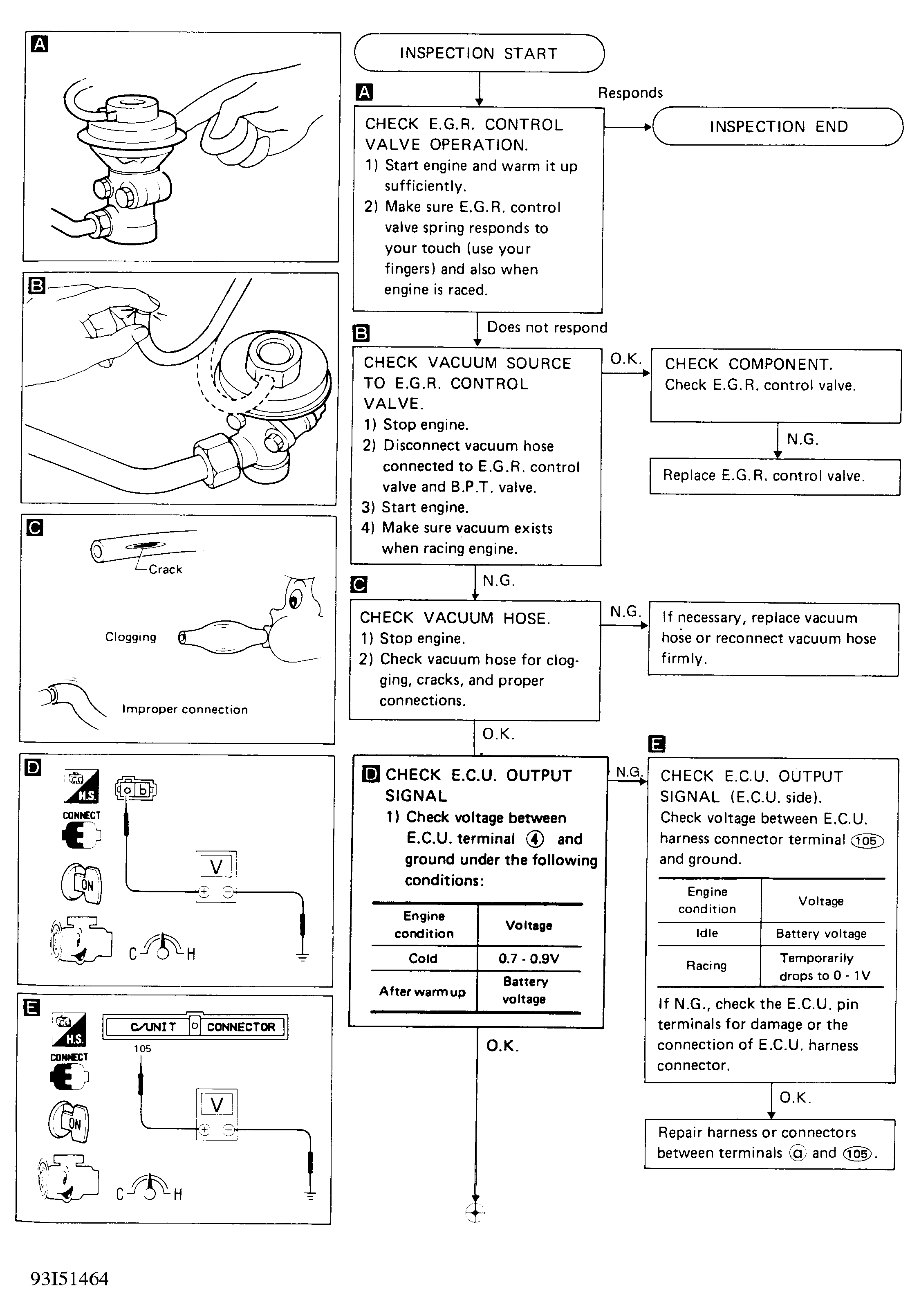

Fig 3: Code 32: EGR Sensor Axxess (Calif) (Revised per TS89-112) (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

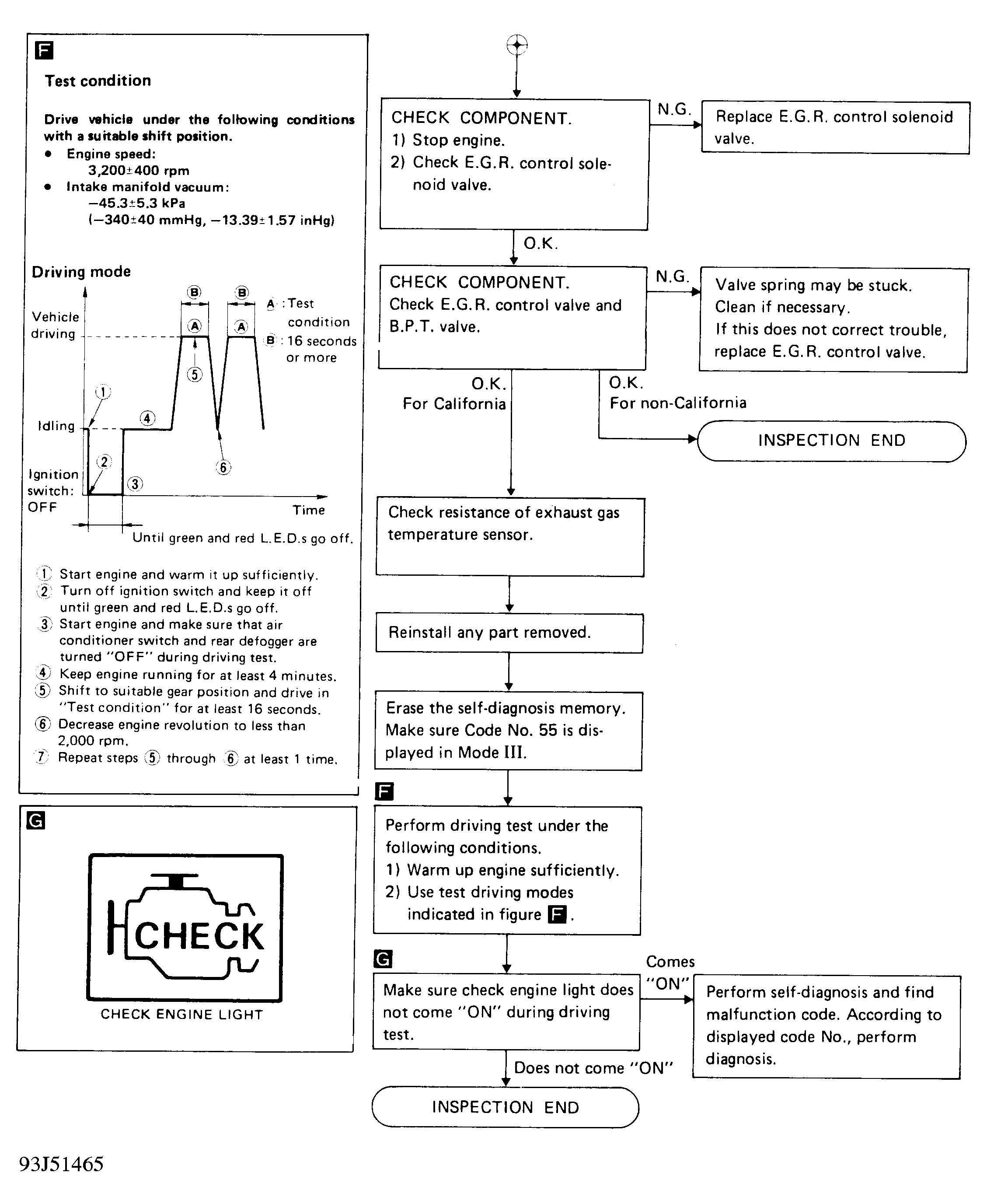

Fig 4: Code 32: EGR Sensor Axxess (Calif) (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
