Neutral/Inhibitor Switch Chart

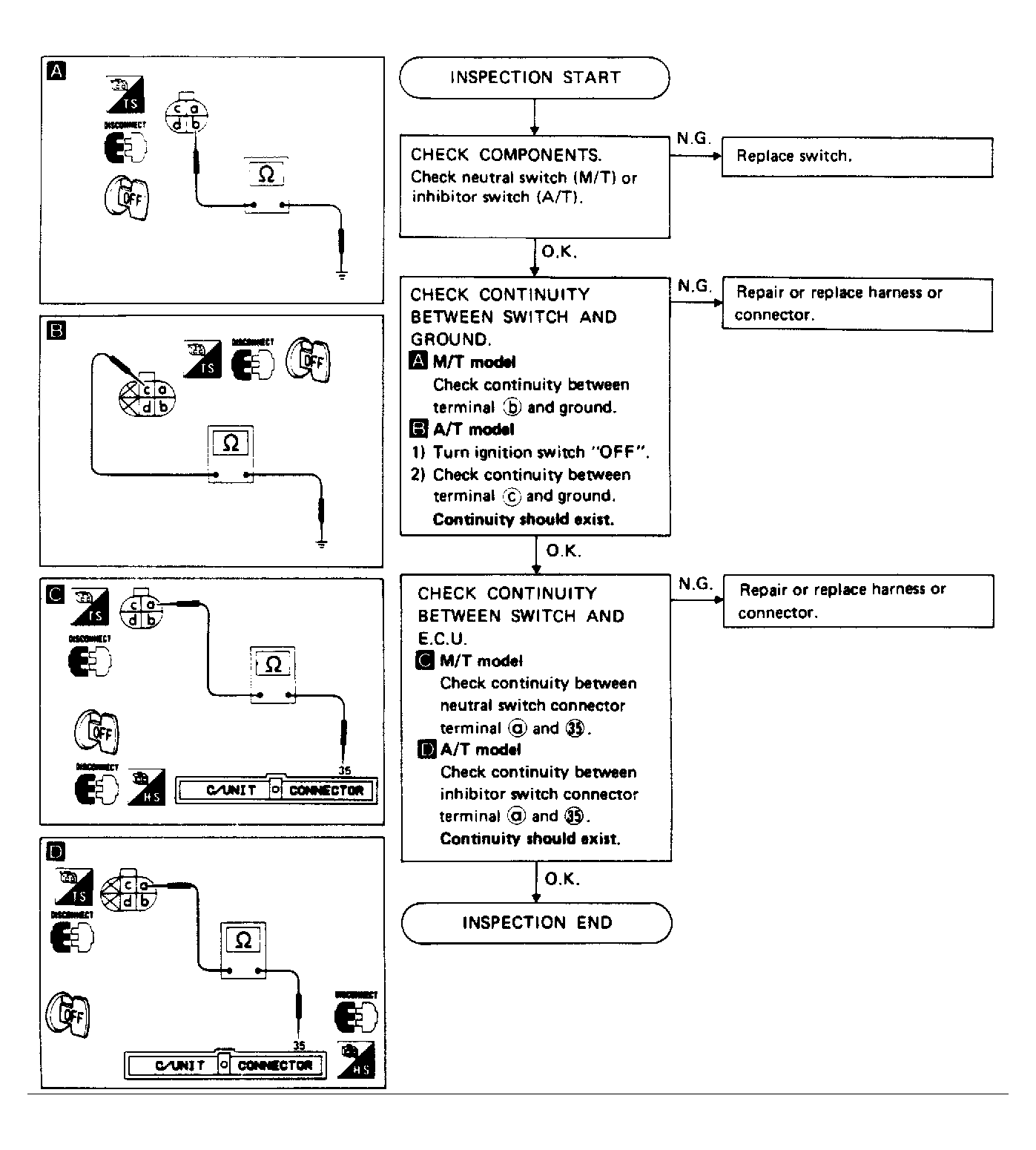

Fig 1: Axxess Neutral/Inhibitor Switch Diagnostic Chart
G90I20667Courtesy of NISSAN MOTOR CO., U.S.A.

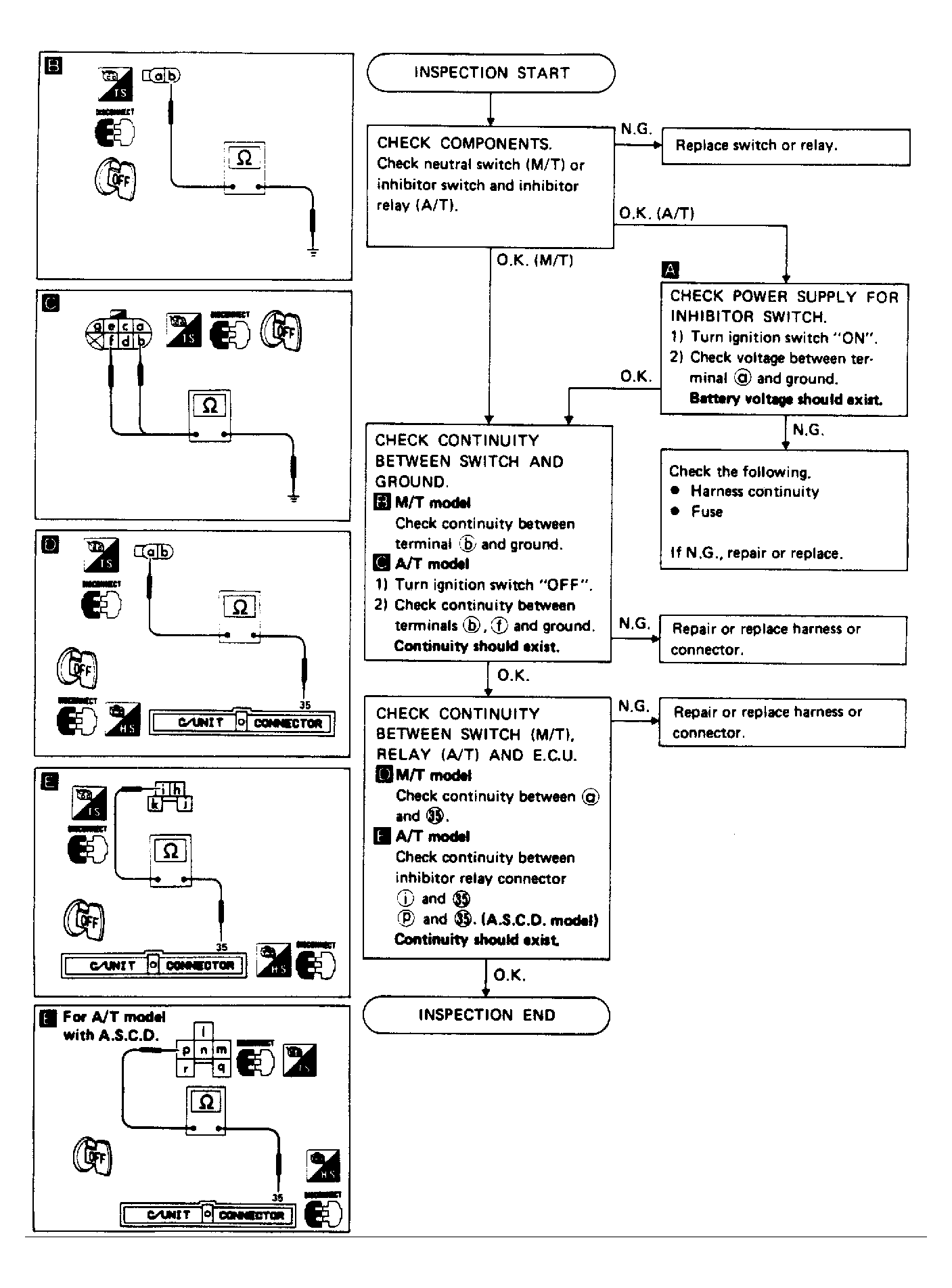

Fig 2: 240SX Neutral/Inhibitor Switch & Relay Diagnostic Chart
G90A20677Courtesy of NISSAN MOTOR CO., U.S.A.
