System
>>
Engine Controls - System/Component Tests
>>
Diagnostic Charts
>>
EGR Function Chart
EGR Function Chart

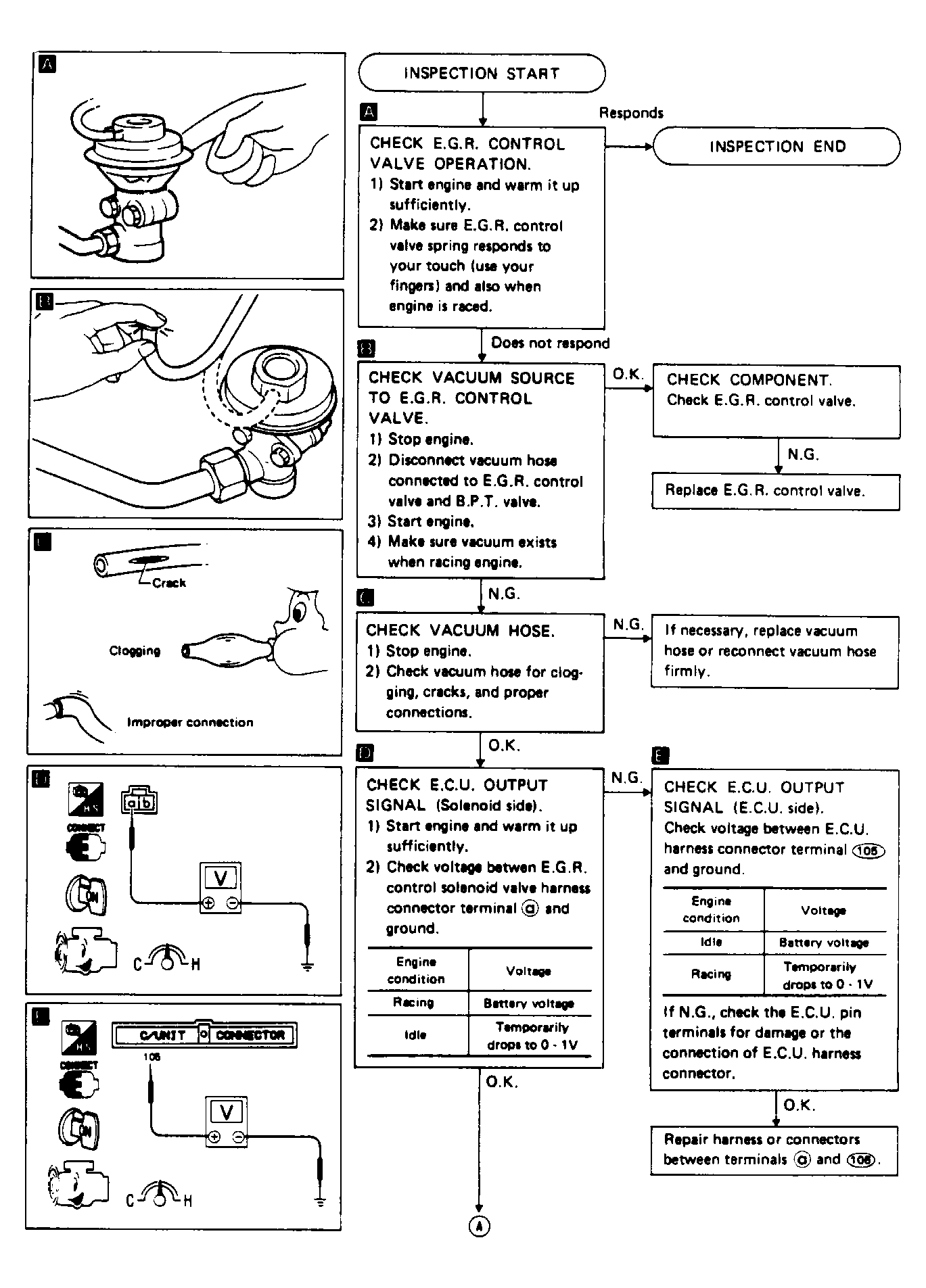

Fig 1: EGR Function Diagnostic Chart (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

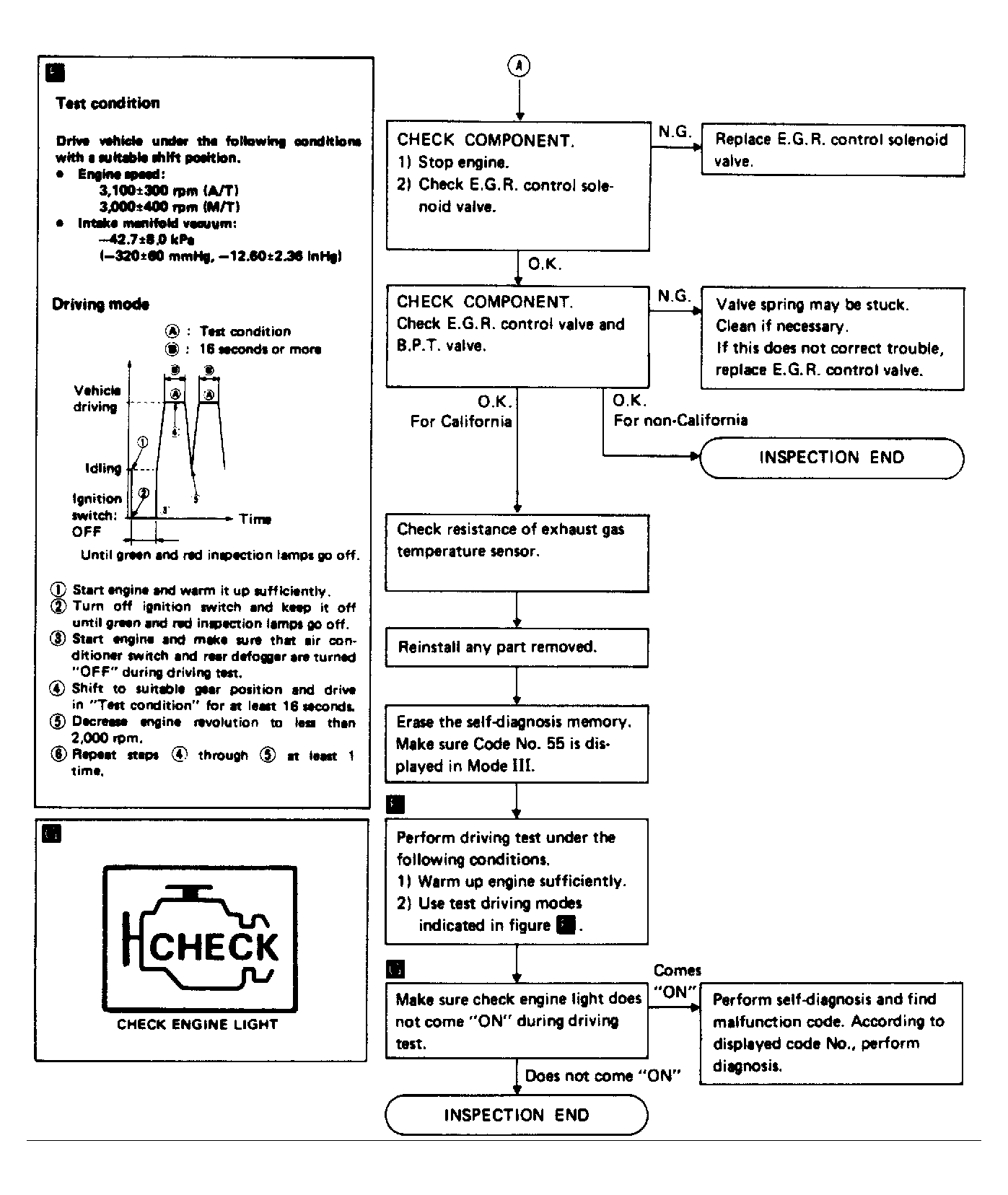

Fig 2: EGR Function Diagnostic Chart (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
