Fast Idle Control (With A/C) Chart (AXXESS)

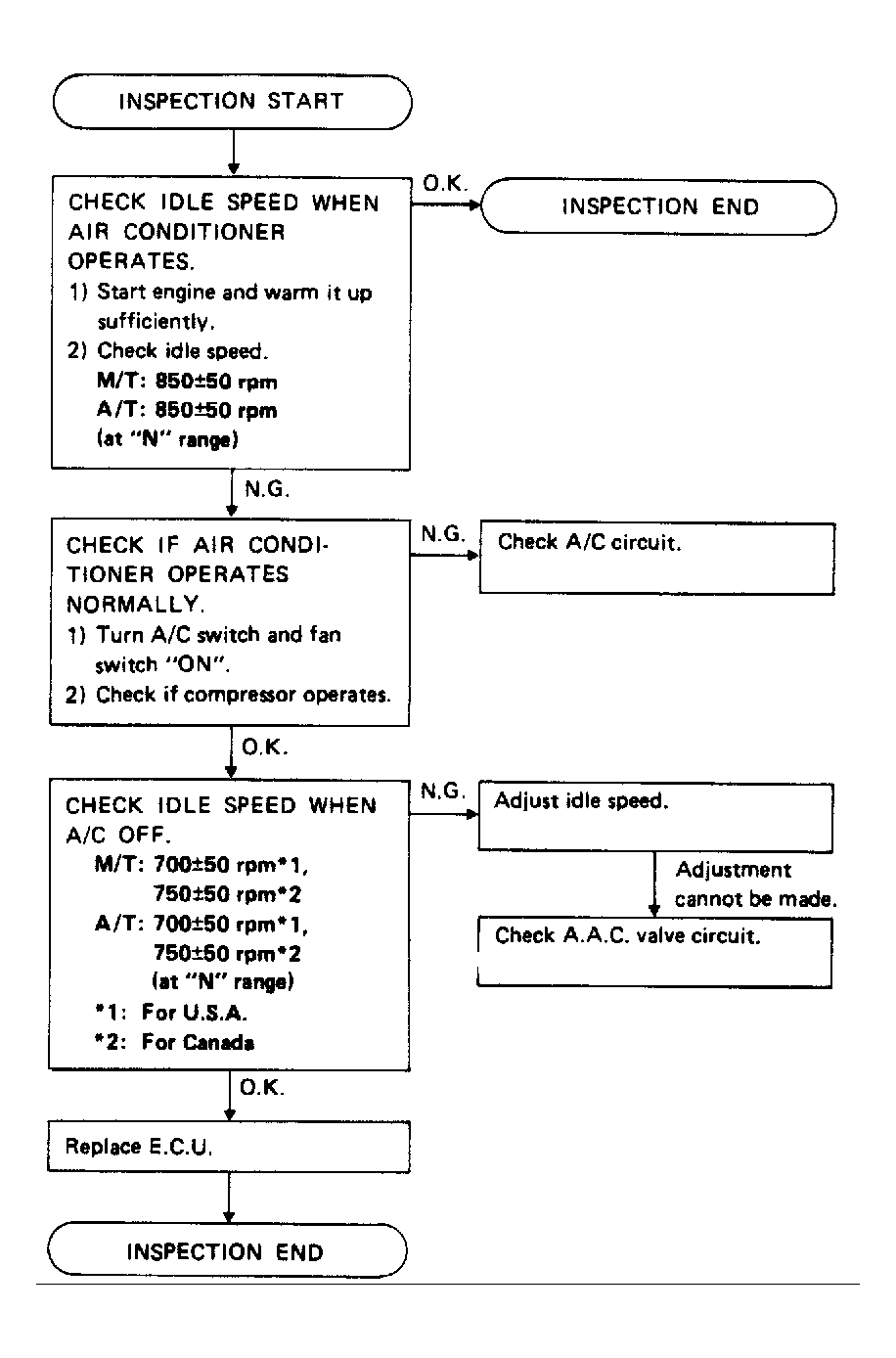

Fig 1: Fast Idle Control (With A/C) Diagnostic Chart

G90F20631

Courtesy of NISSAN MOTOR CO., U.S.A.
