240SX SE, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - System/Component Tests
>>
Diagnostic Charts
>>
Ecu Power Source & Ground Chart
Ecu Power Source & Ground Chart

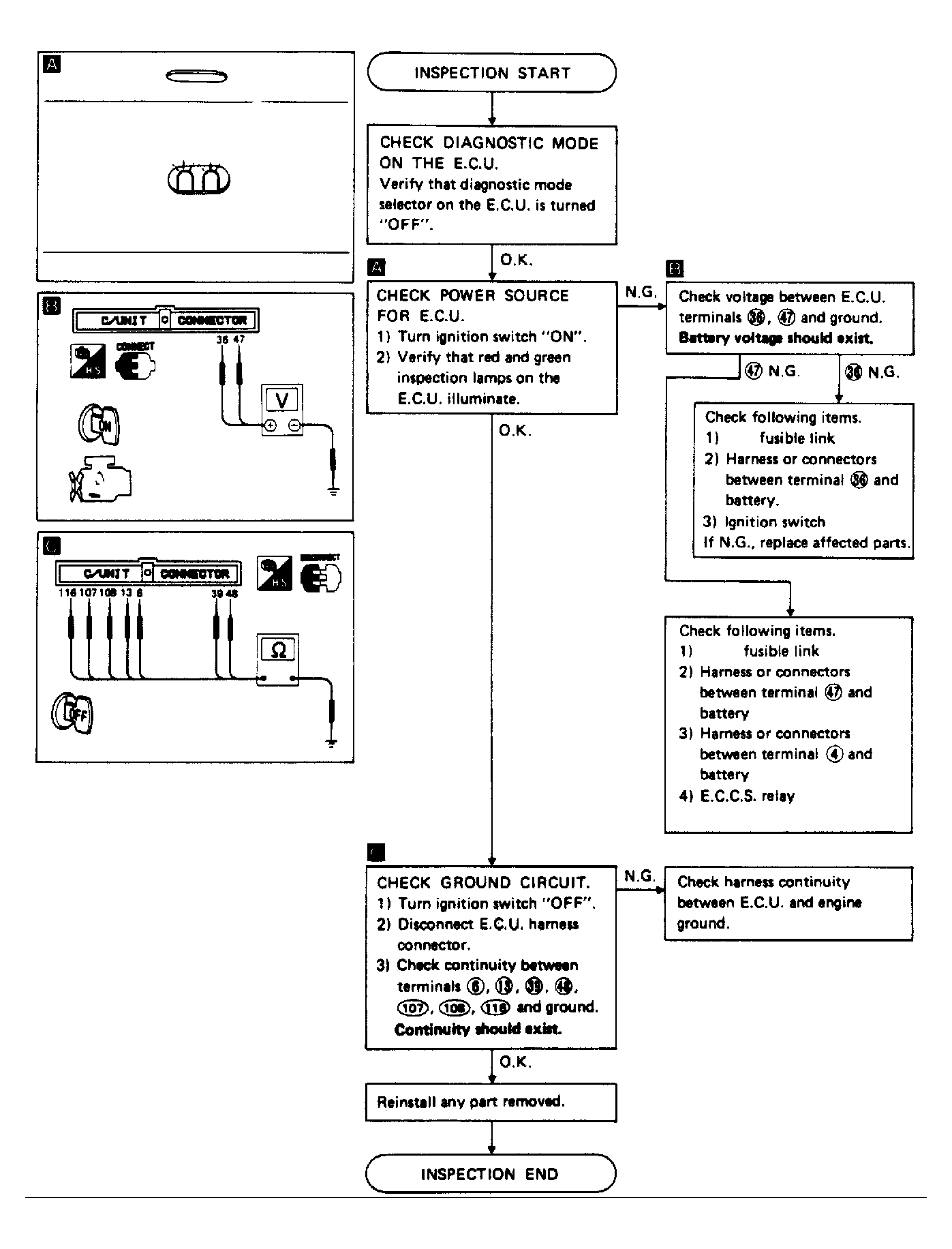

Fig 1: Axxess ECU Power Source & Ground Diagnostic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

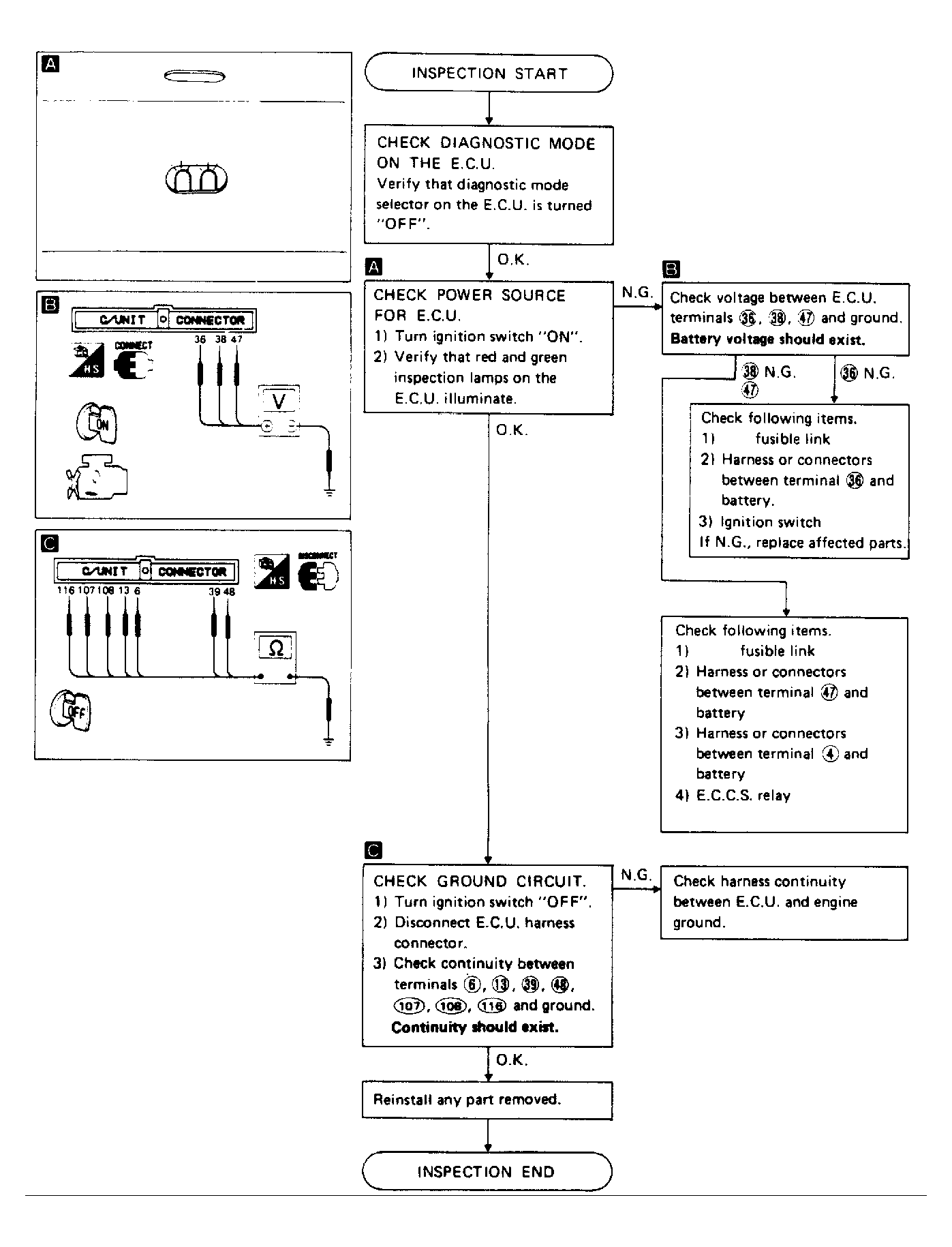

Fig 2: 240SX ECU Power Source & Ground Diagnostic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
