Code & Check Charts

WARNING: This page is about a different car, the 1989 Nissan Pulsar NX. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Pulsar NX SE, Pulsar NX XE Air Injection Valve Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

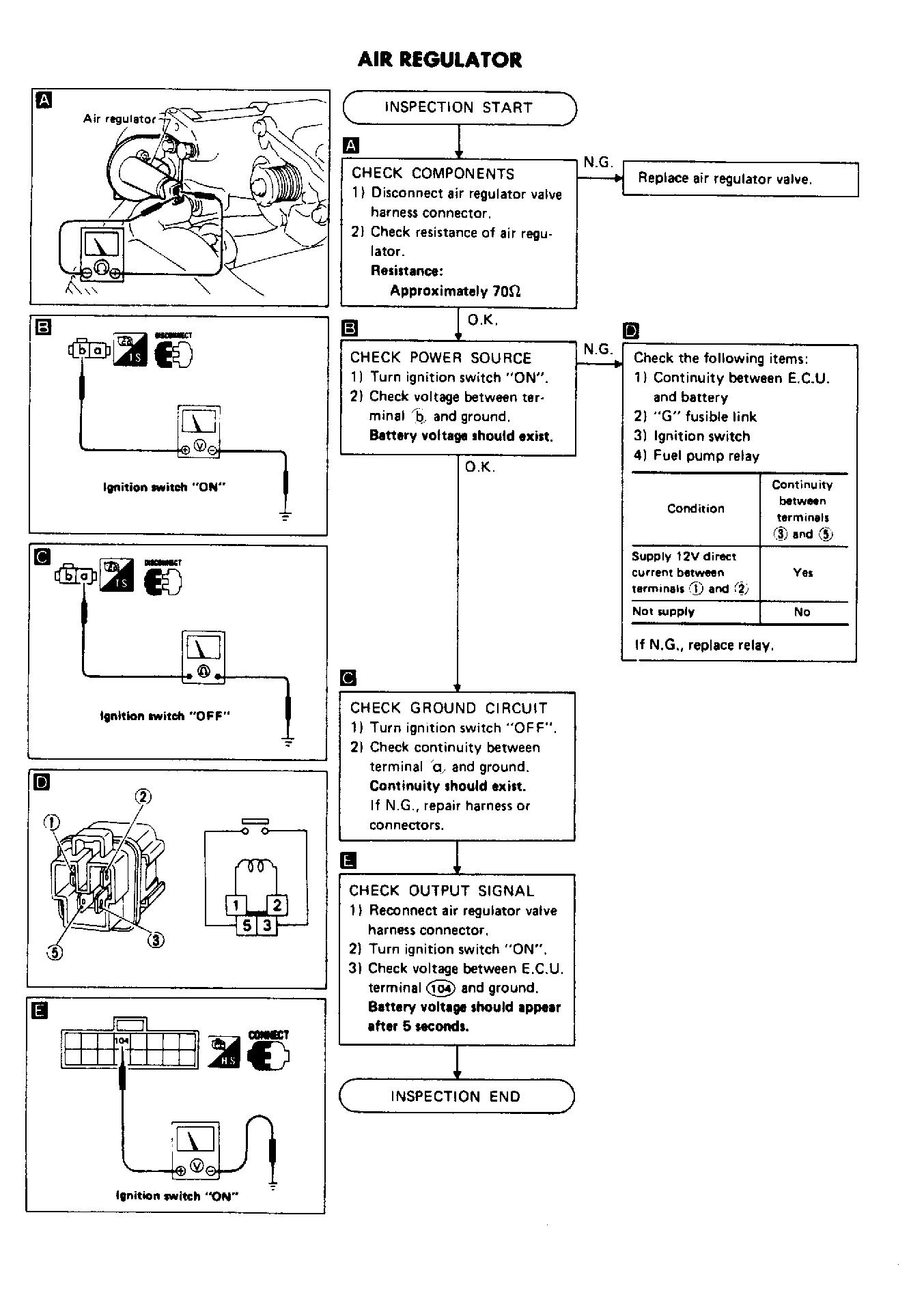

Fig 2: Pulsar NX SE Air Regulator Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

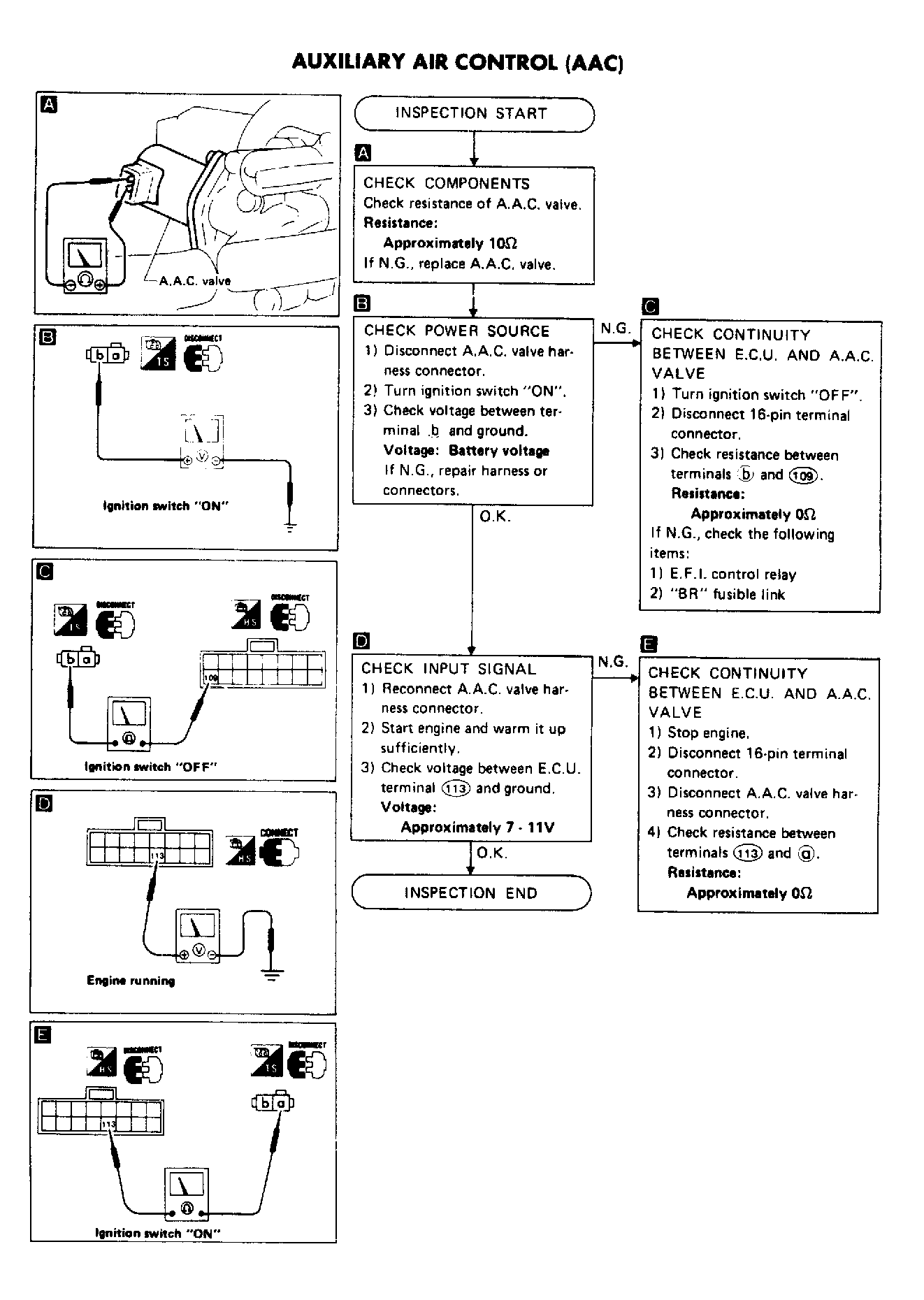

Fig 3: Pulsar NX SE Auxiliary Air Control (AAC) Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Pulsar NX SE, Pulsar NX XE FIDC Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Pulsar NX SE, Pulsar NX XE Fuel Pump Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Pulsar NX XE Idle-Up Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Pulsar NX SE Injector Malfunction Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

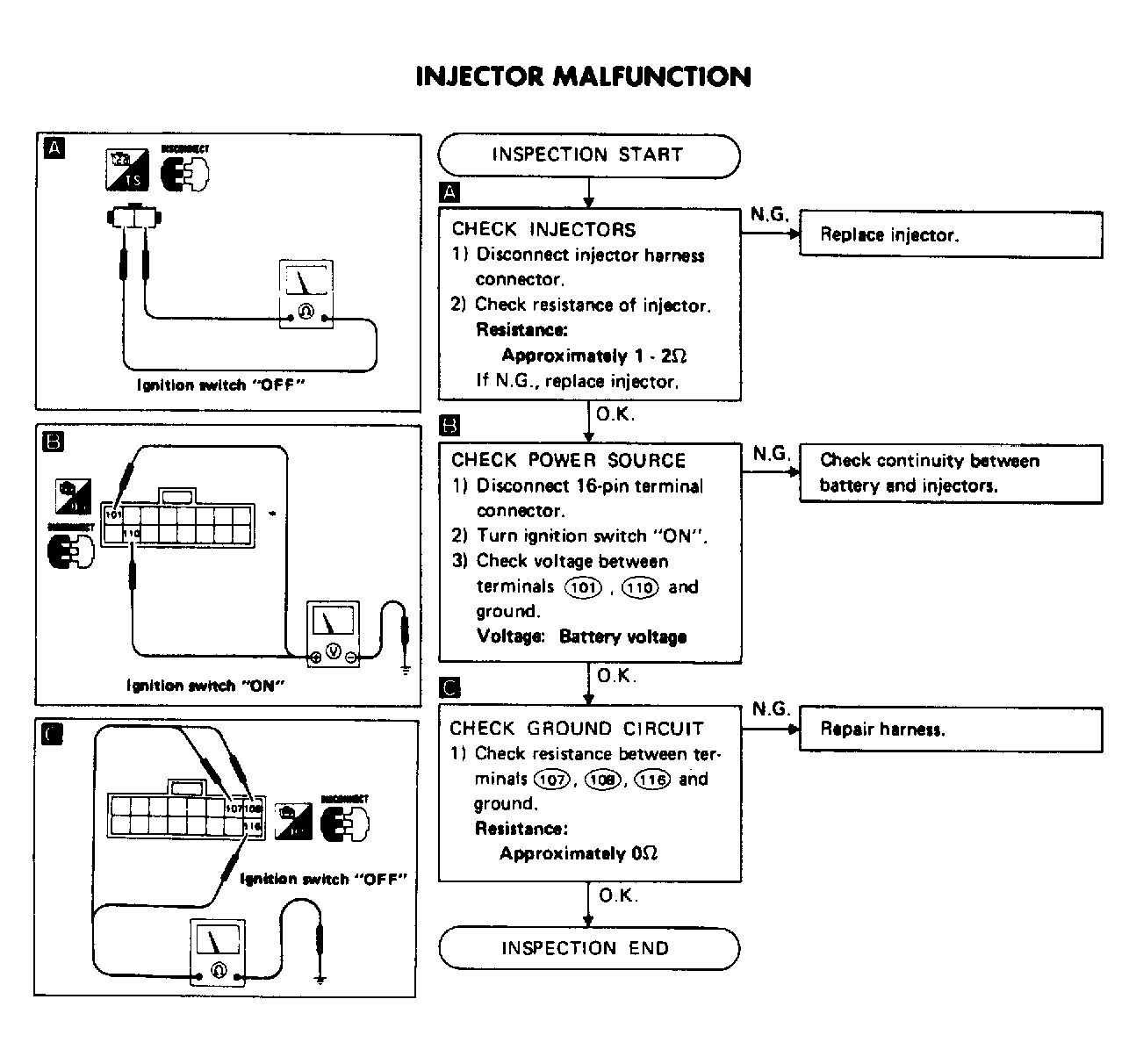

Fig 8: Pulsar NX XE Injector Malfunction Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Pulsar NX SE, Pulsar NX XE Neutral/Inhibitor Switch Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

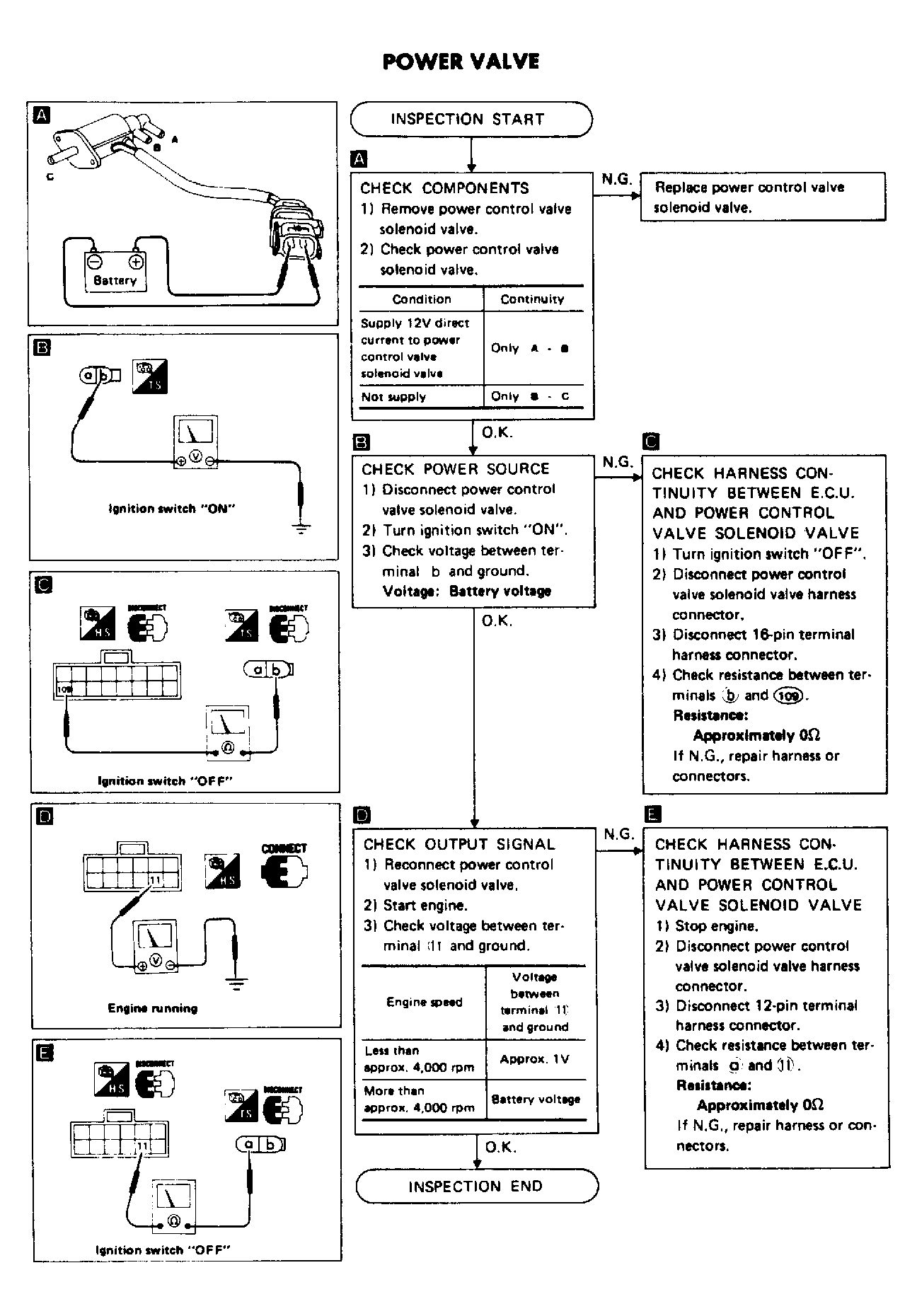

Fig 10: Pulsar SE Power Valve Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

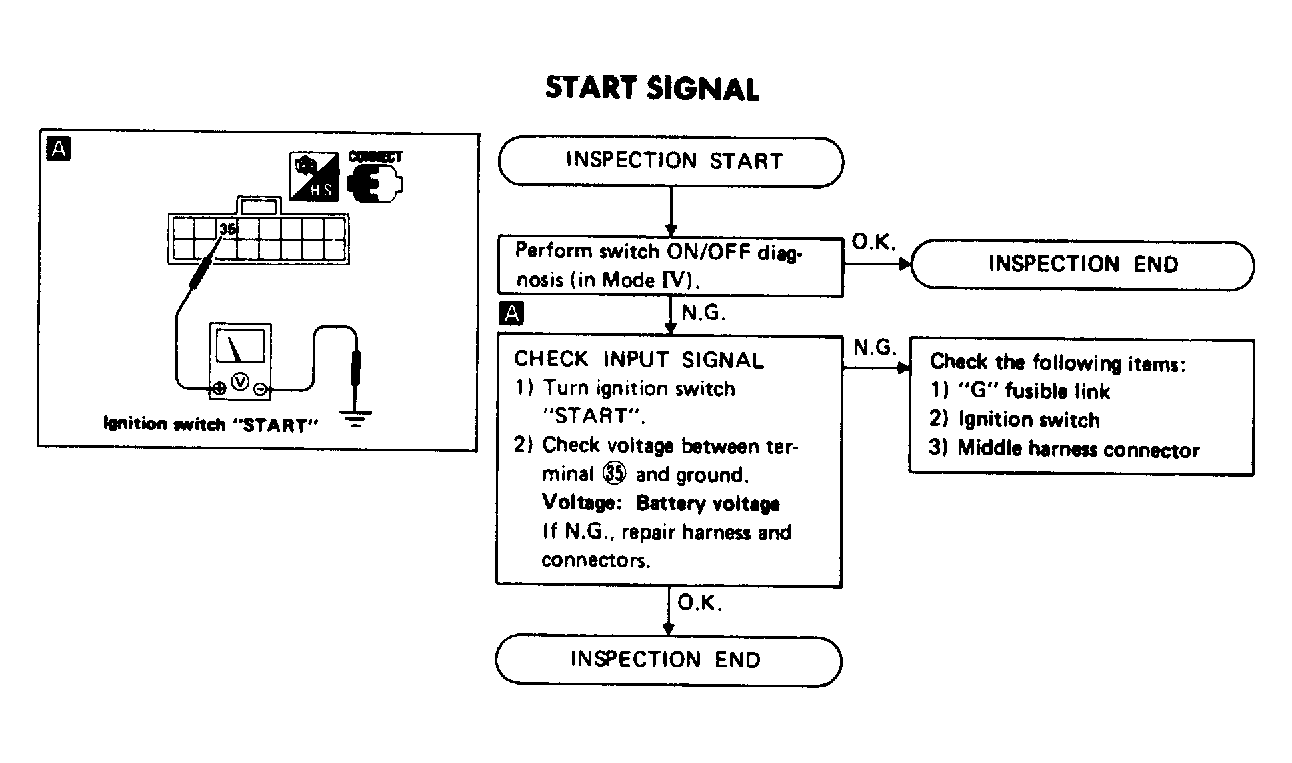

Fig 11: Pulsar NX SE Start Signal Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Pulsar NX XE Start Signal Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
