Code 43 Throttle Position Sensor

WARNING: This page is about a different car, the 1989 Nissan Pulsar NX. However, it is still accessible from the selected car via links, so may be relevant.

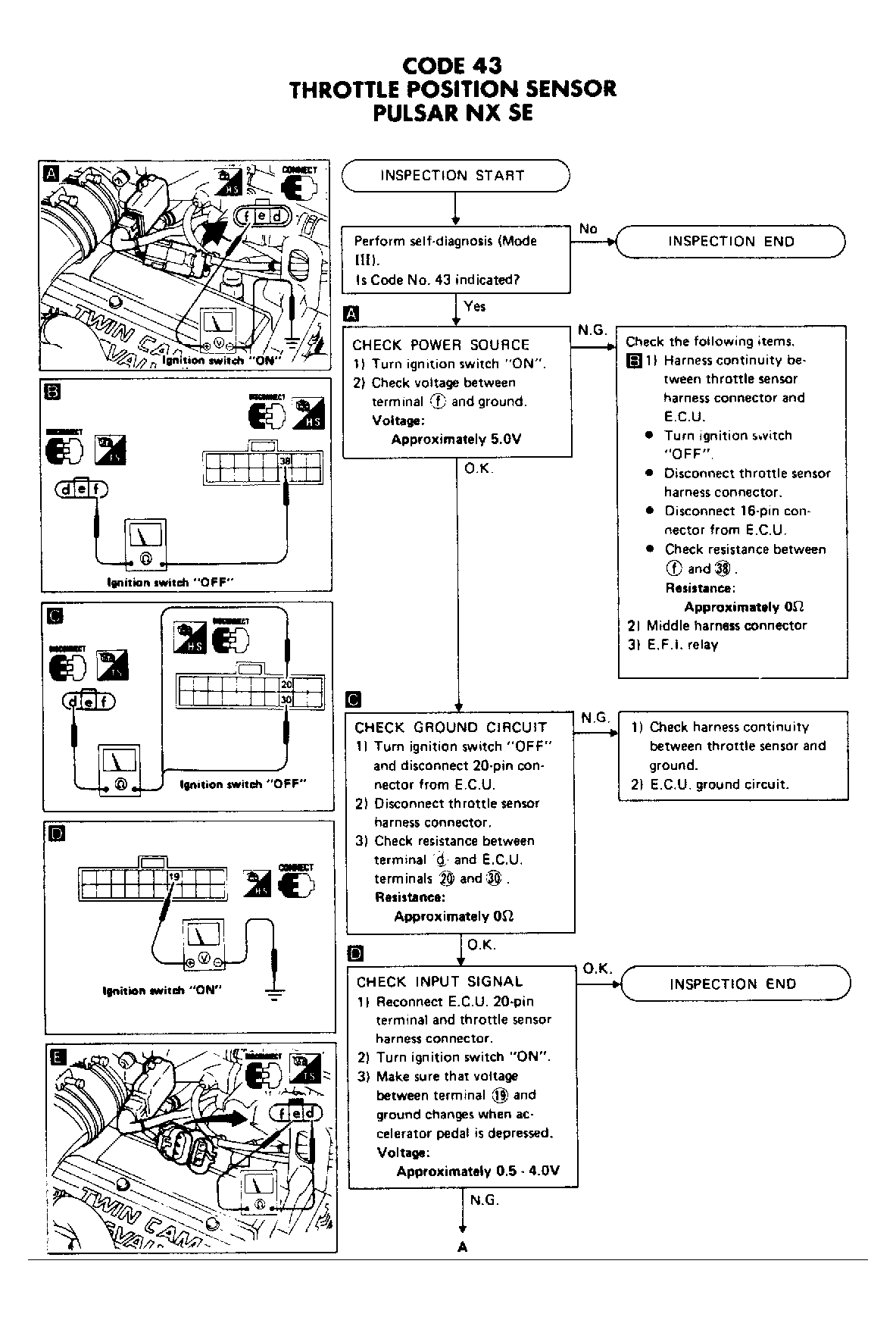

Fig 1: Code 43, Pulsar NX SE (1 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Code 43, Pulsar NX SE (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Code 43, Pulsar NX XE (1 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Code 43, Pulsar NX XE (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
