Code 32, EGR Sensor

WARNING: This page is about a different car, the 1989 Nissan Pulsar NX. However, it is still accessible from the selected car via links, so may be relevant.

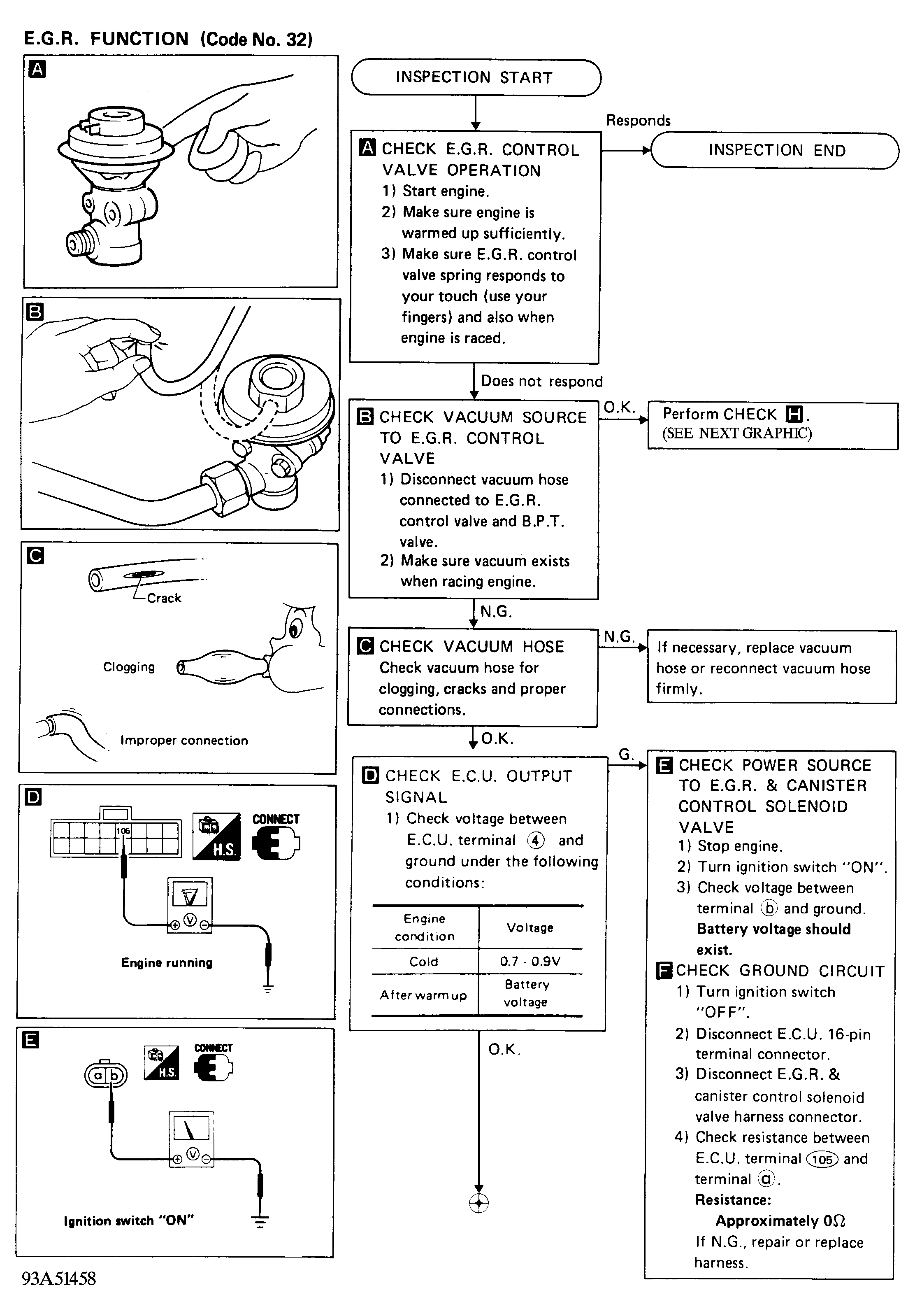

Fig 1: Code 32, Pulsar NX XE (Revised per TS89-112)(1 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

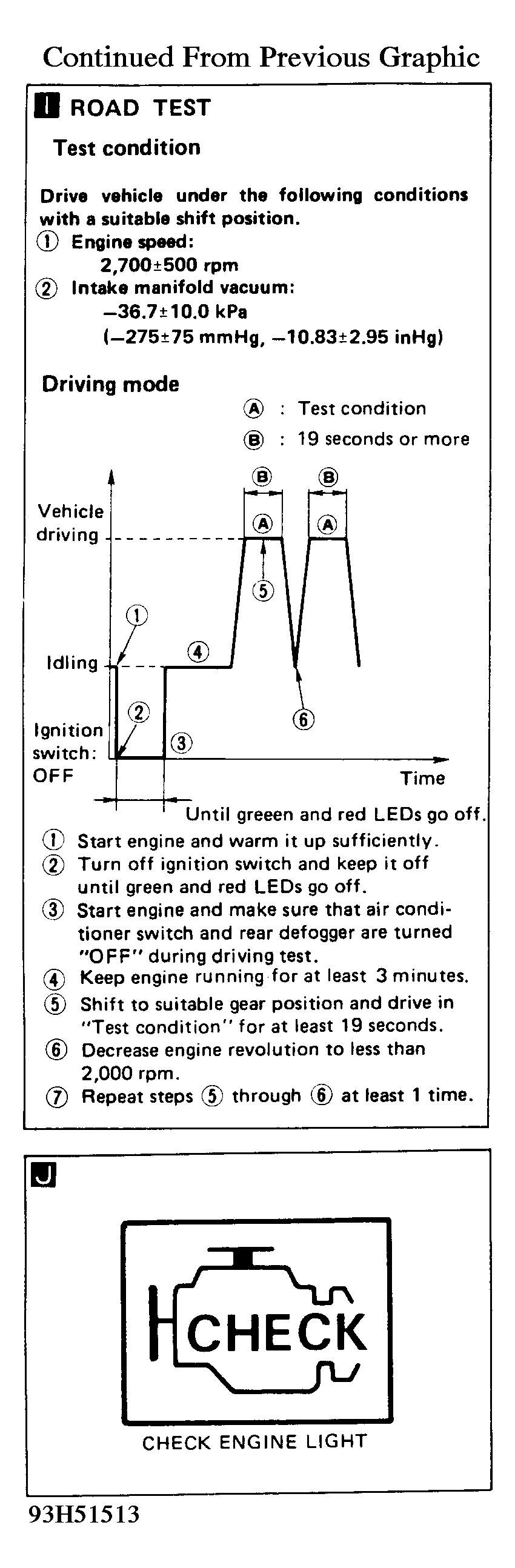

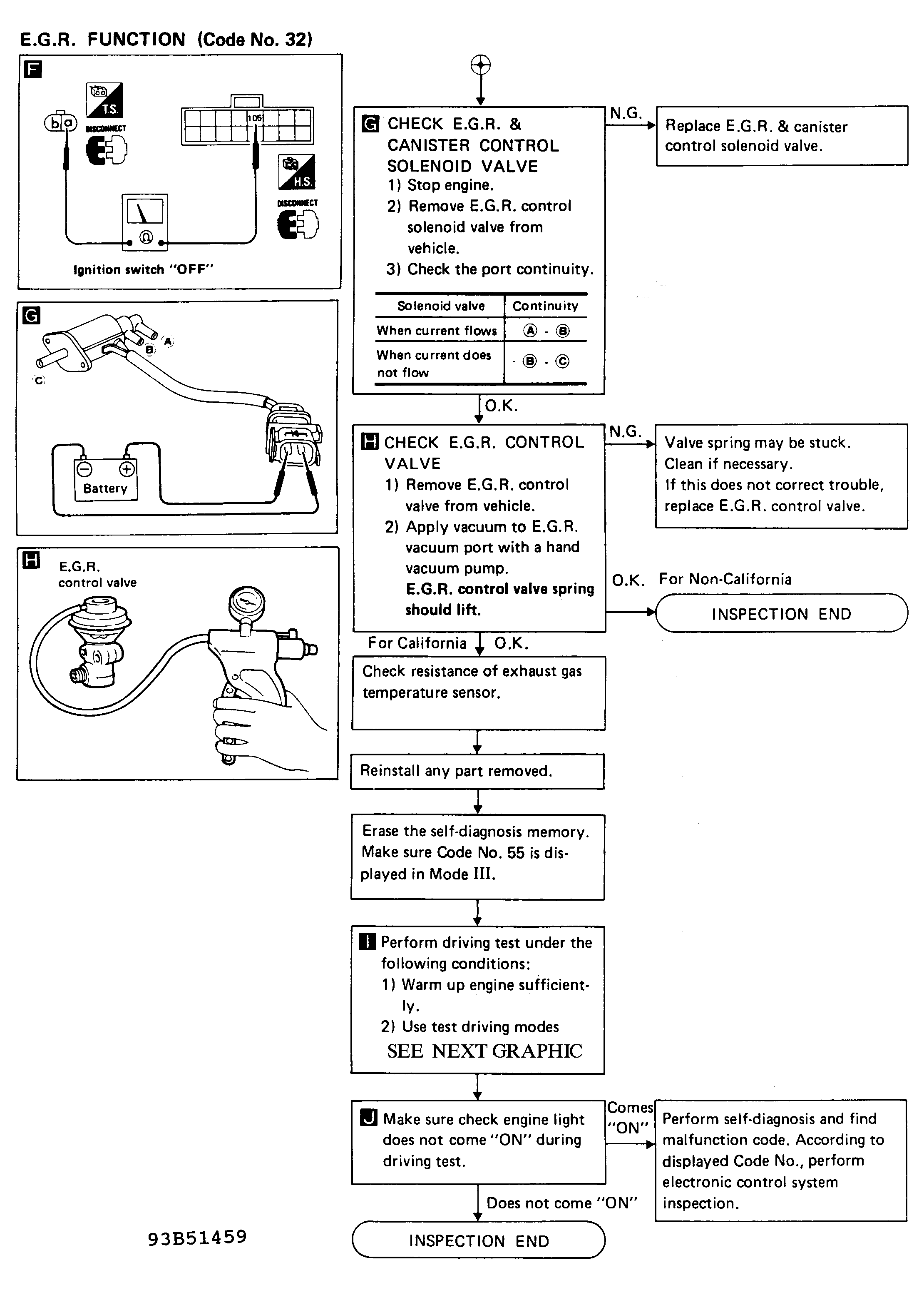

Fig 2: Code 32, Pulsar NX XE (2 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Code 32, Pulsar NX XE (3 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

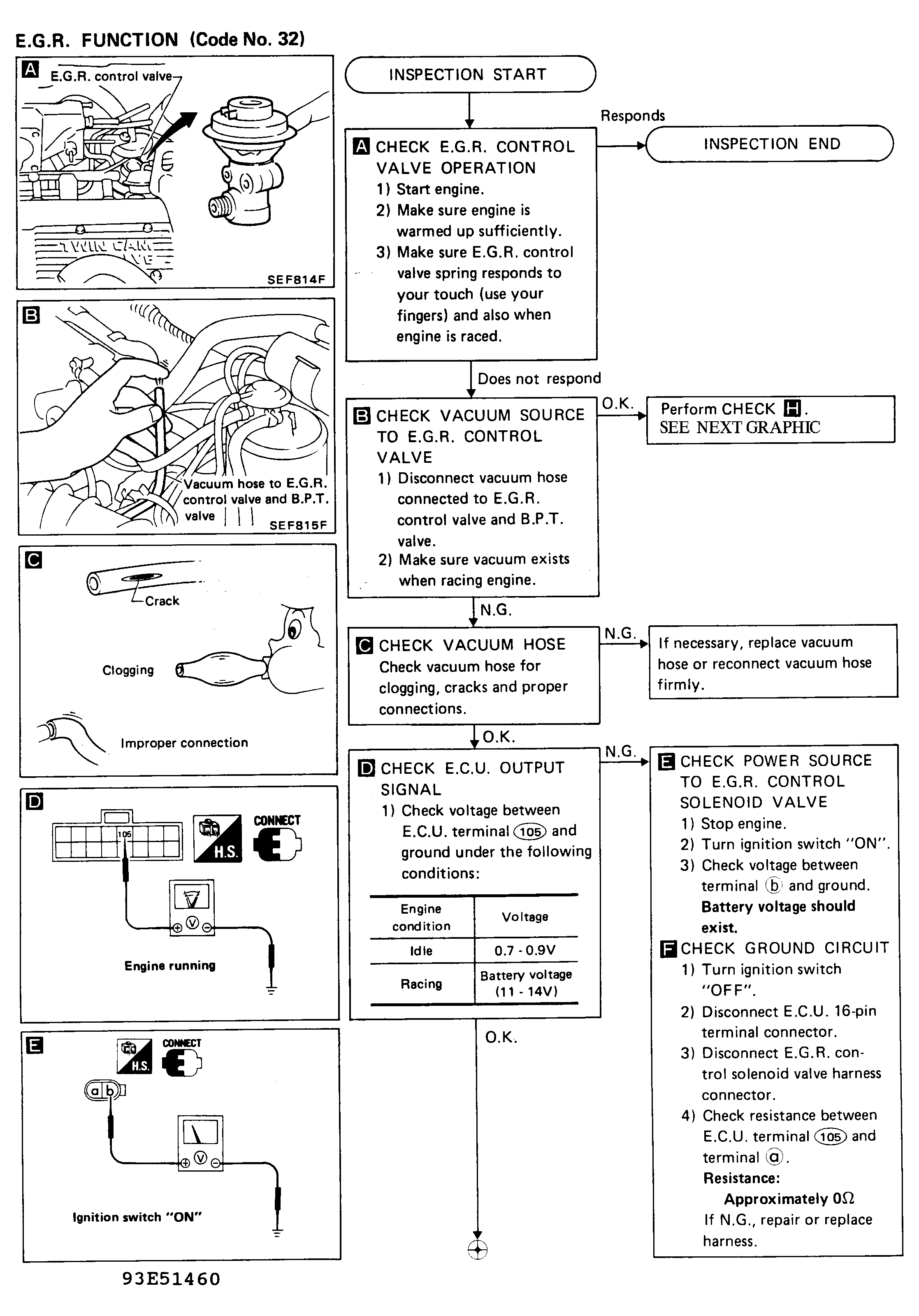

Fig 4: Code 32, Pulsar NX SE (Revised per TS89-112) (1 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

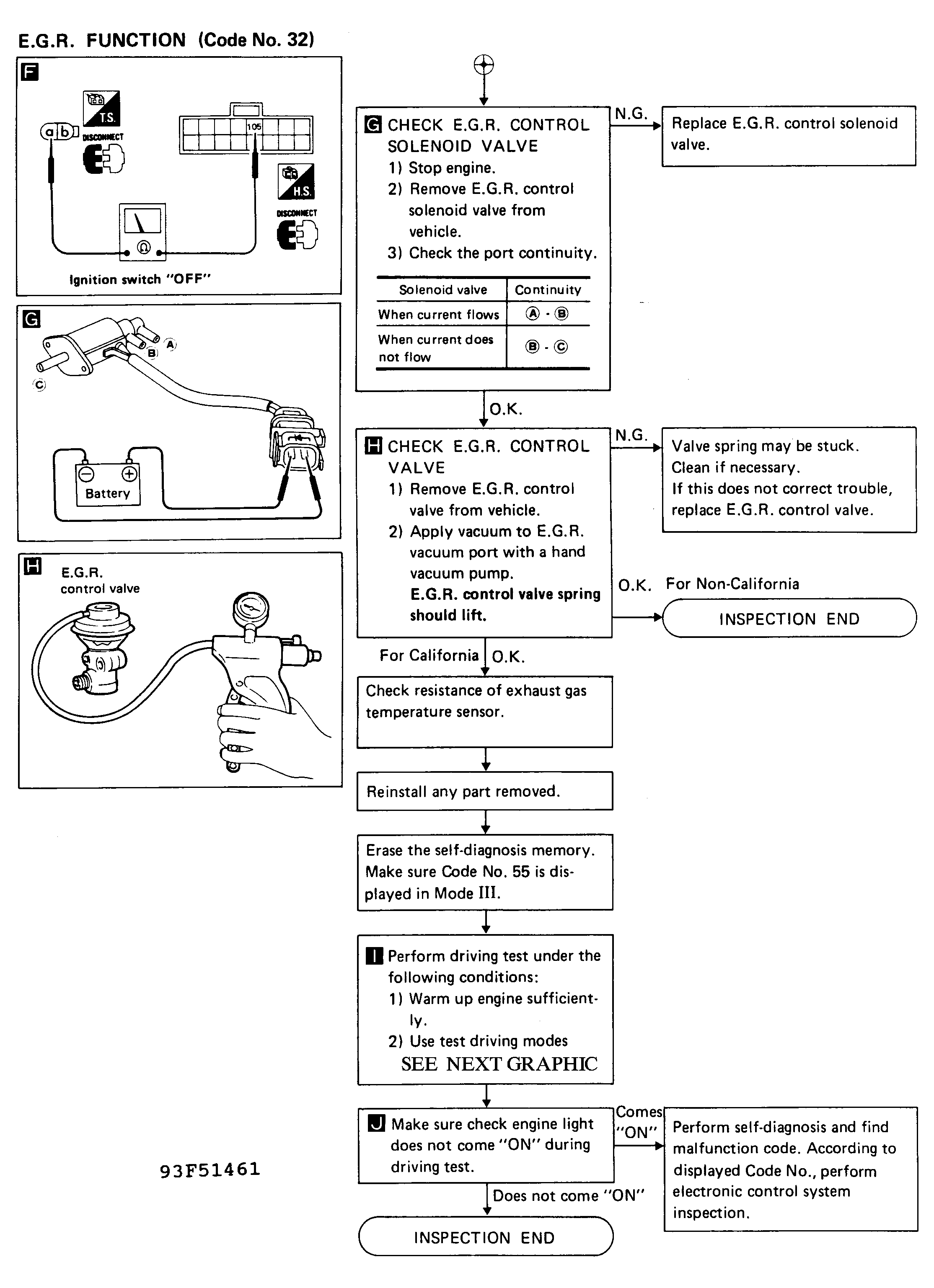

Fig 5: Code 32, Pulsar NX SE (2 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

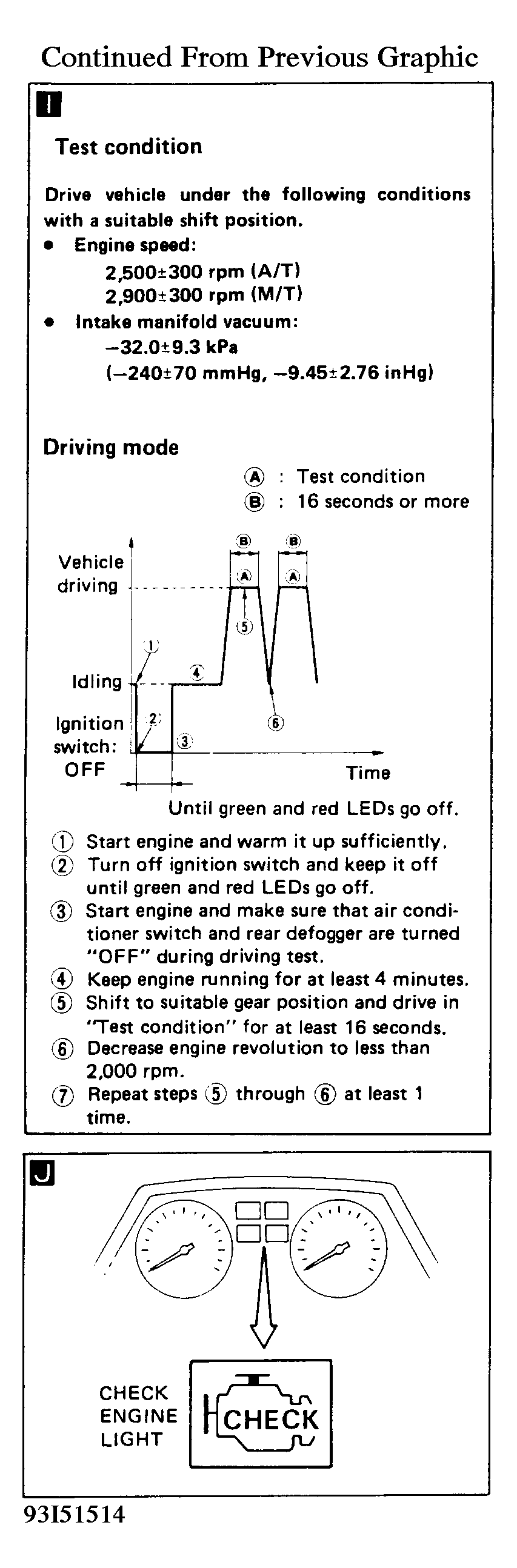

Fig 6: Code 32, Pulsar NX SE (3 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
