Code 21 No Ignition Reference

WARNING: This page is about a different car, the 1989 Nissan Pulsar NX. However, it is still accessible from the selected car via links, so may be relevant.

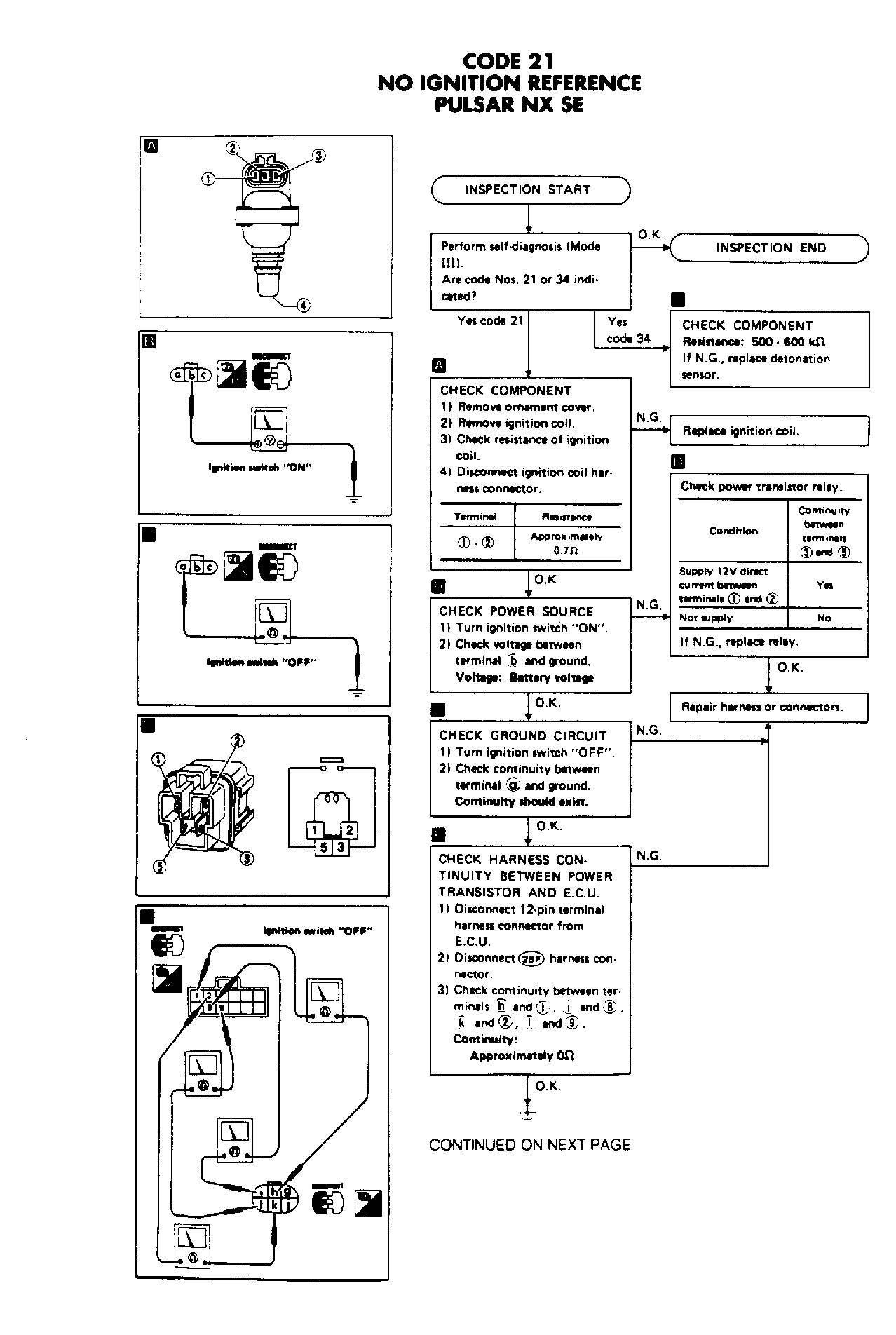

Fig 1: Code 21, Pulsar NX SE (1 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

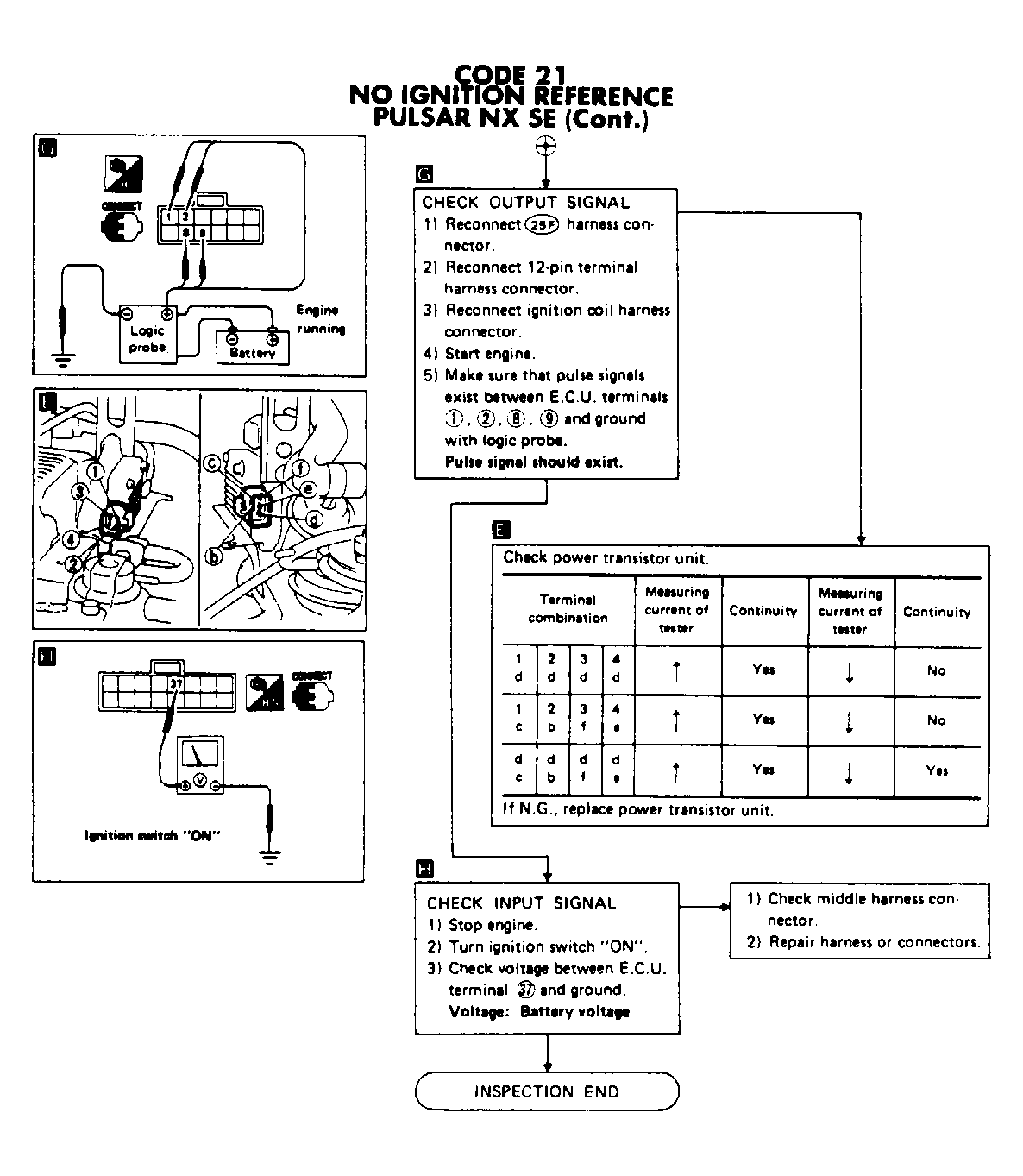

Fig 2: Code 21, Pulsar NX SE (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Code 21, Pulsar NX XE

Courtesy of NISSAN MOTOR CO., U.S.A.
