Firing Order & Distributor Rotation

WARNING: This page is about a different car, the 1989 Nissan Pickup, 1989 Nissan Pathfinder, 1989 Nissan Maxima, and 1989 Nissan 300ZX. However, it is still accessible from the selected car via links, so may be relevant.

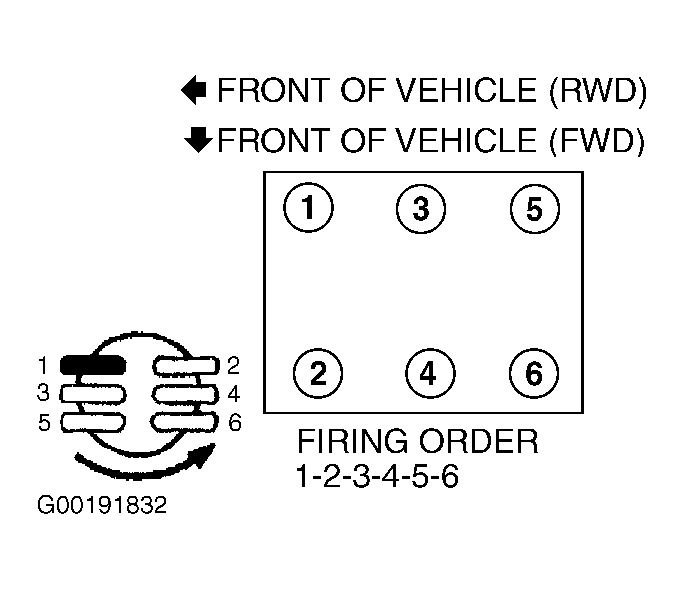

Fig 1: Firing Order & Distributor Rotation
G00191832
