Nissan-Datsun
>>
1989
>>
Sentra Base
>>
Repair and Diagnosis
>>
Engine Performance
>>
Pin Voltage Charts
>>
Pin Voltages
Pin Voltages

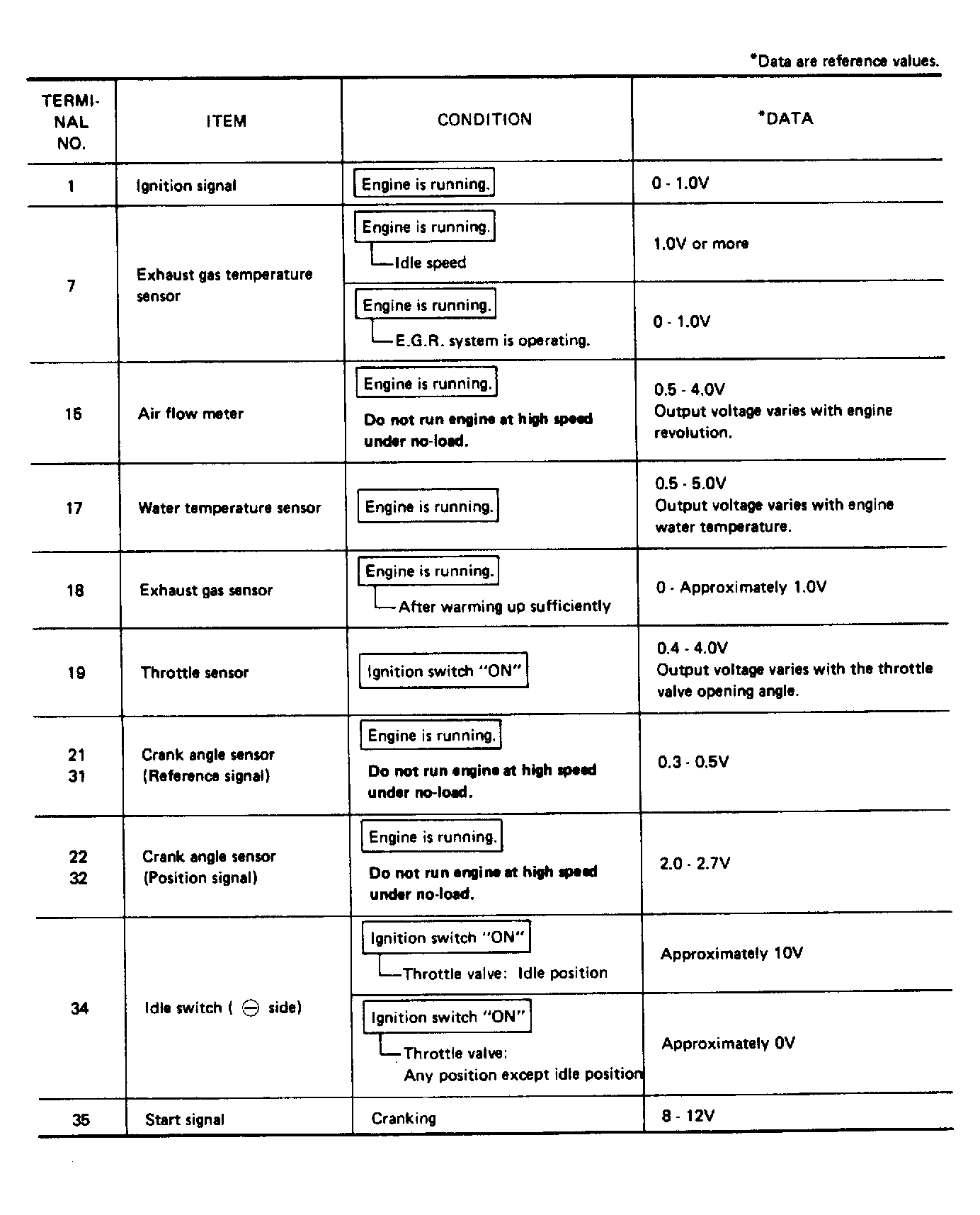

Fig 1: Sentra ECU Pin Voltage Charts
Courtesy of NISSAN MOTOR CO., U.S.A.

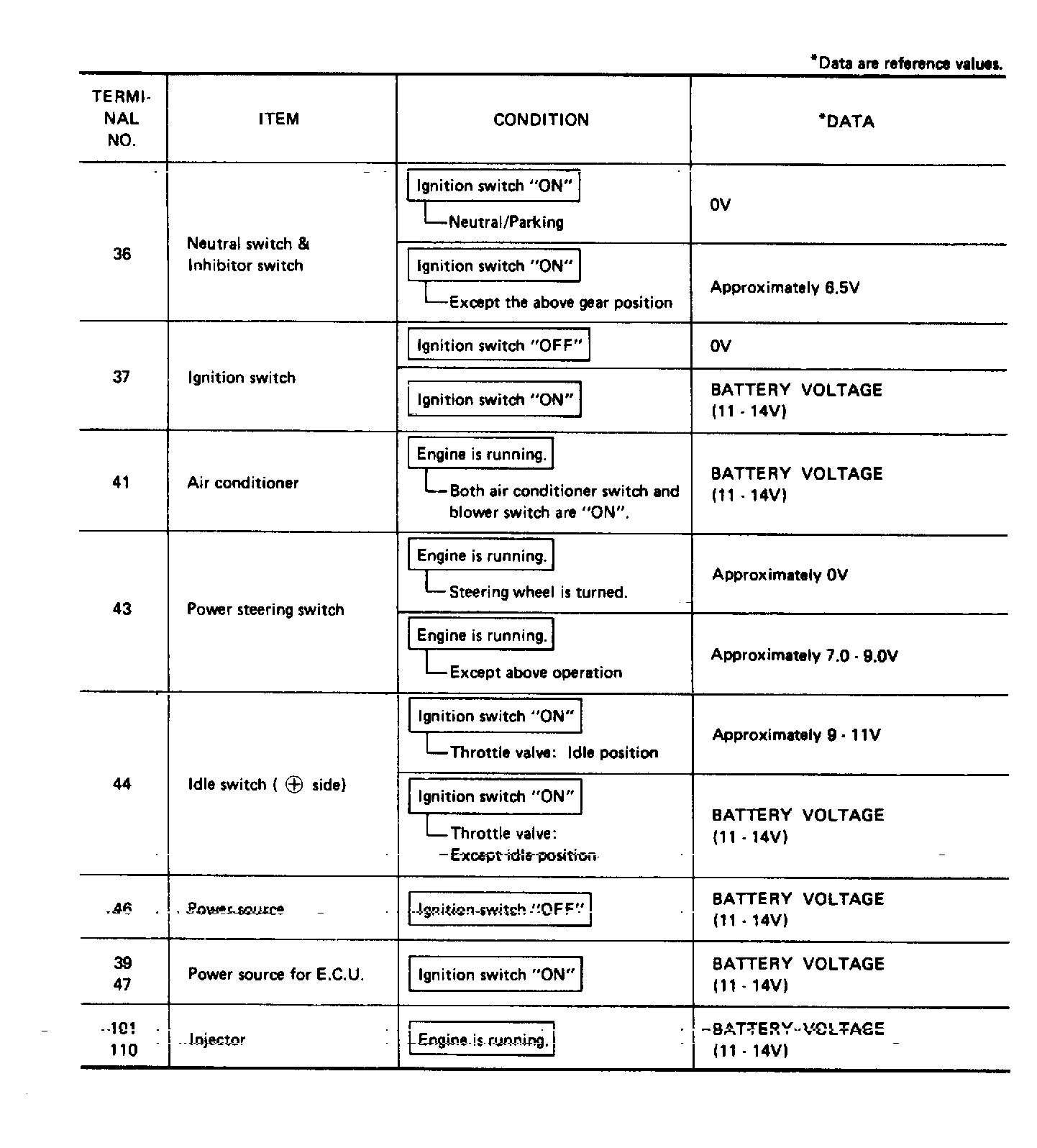

Fig 2: Sentra ECU Pin Voltage Charts (Cont.)
Courtesy of NISSAN MOTOR CO., U.S.A.

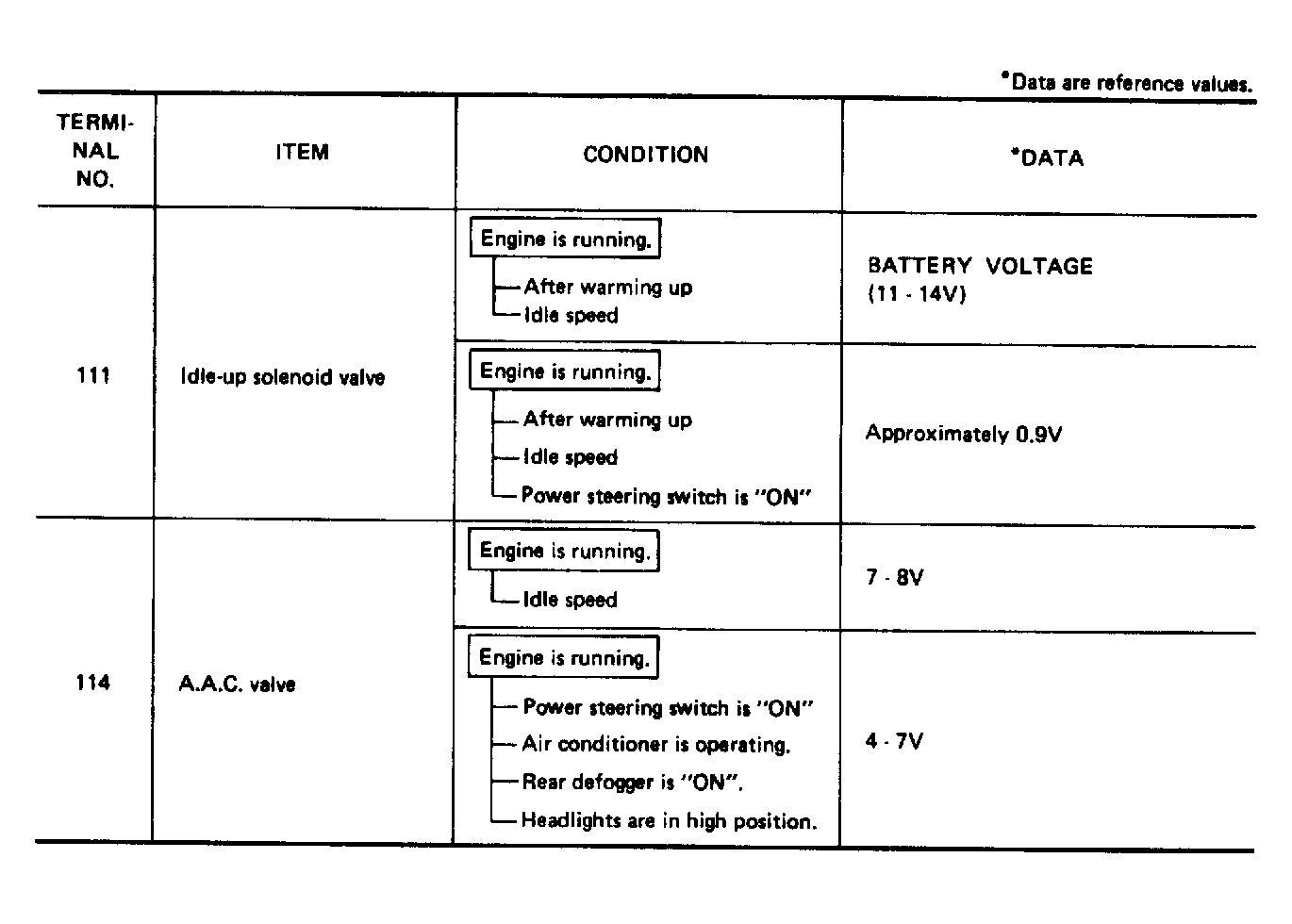

Fig 3: Sentra ECU Pin Voltage Charts (Cont.)
Courtesy of NISSAN MOTOR CO., U.S.A.

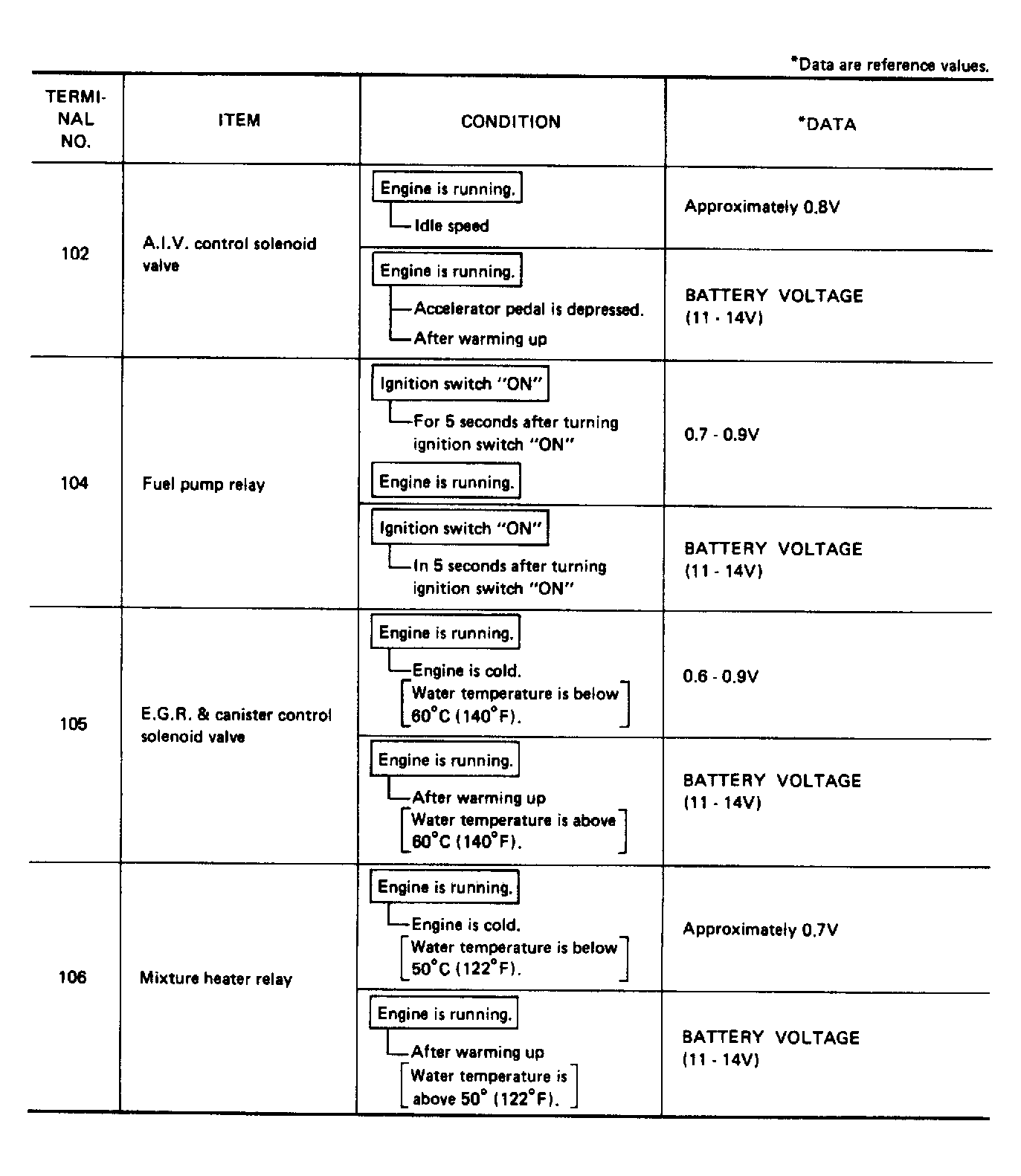

Fig 4: Pulsar NX XE & Sentra ECU Pin Voltage Charts (Cont.)
Courtesy of NISSAN MOTOR CO., U.S.A.
