Code 43 Throttle Position Sensor

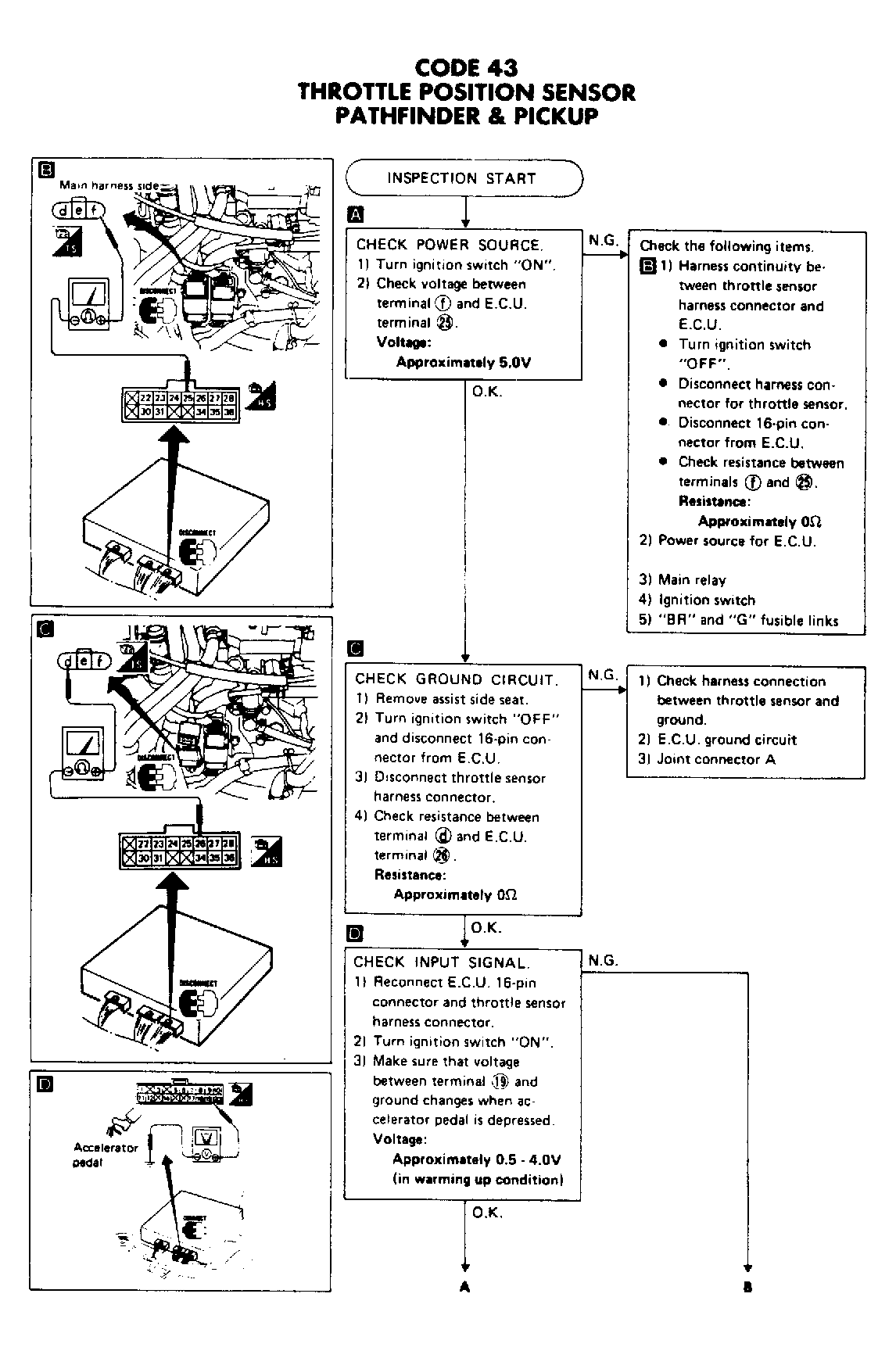

Fig 1: Code 43 Pathfinder, Pickup (1 of 2)

G121274

Courtesy of NISSAN MOTOR CO., U.S.A.

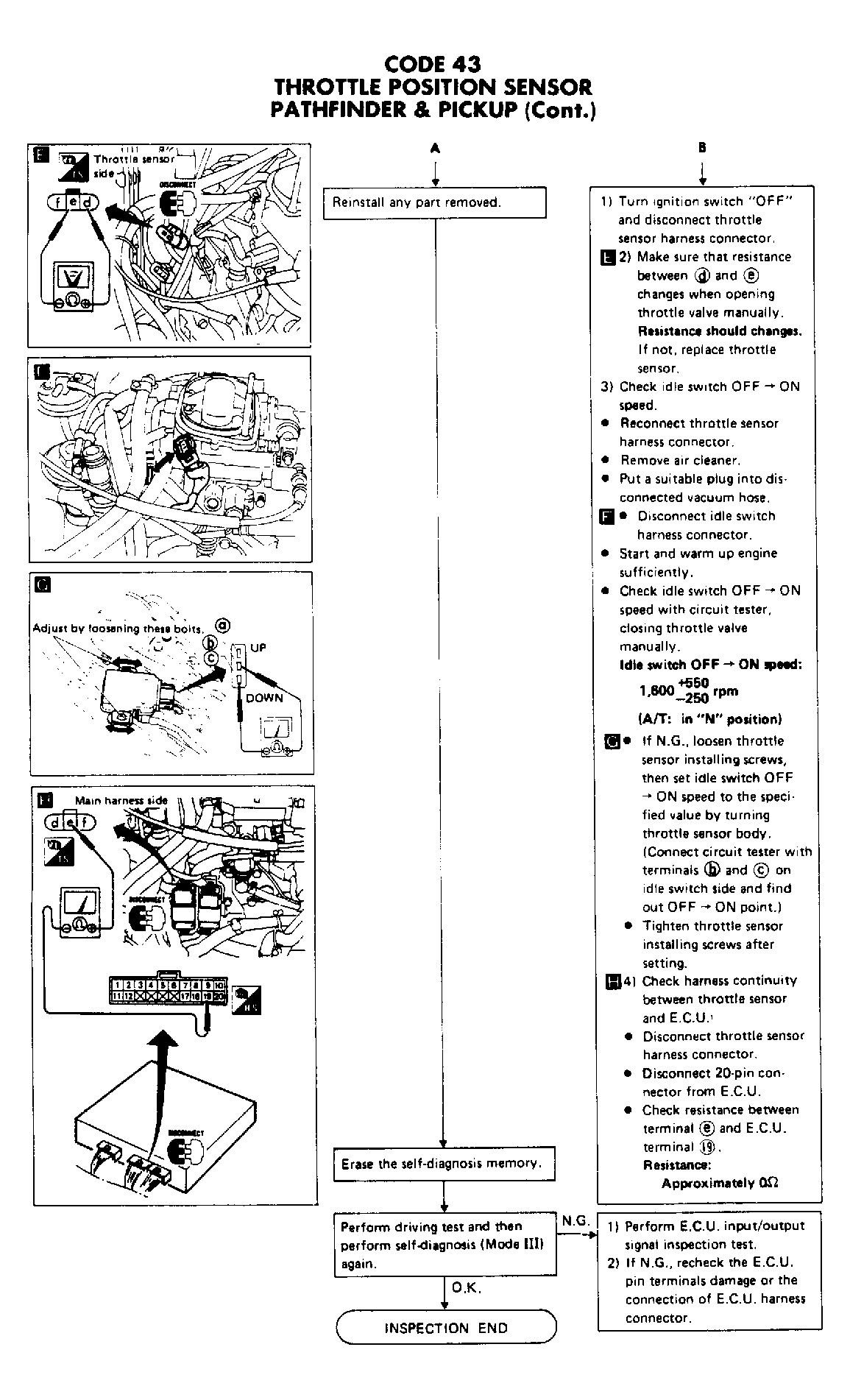

Fig 2: Code 43 Pathfinder, Pickup (2 of 2)

G121275

Courtesy of NISSAN MOTOR CO., U.S.A.
