Code 45, Injection Leak

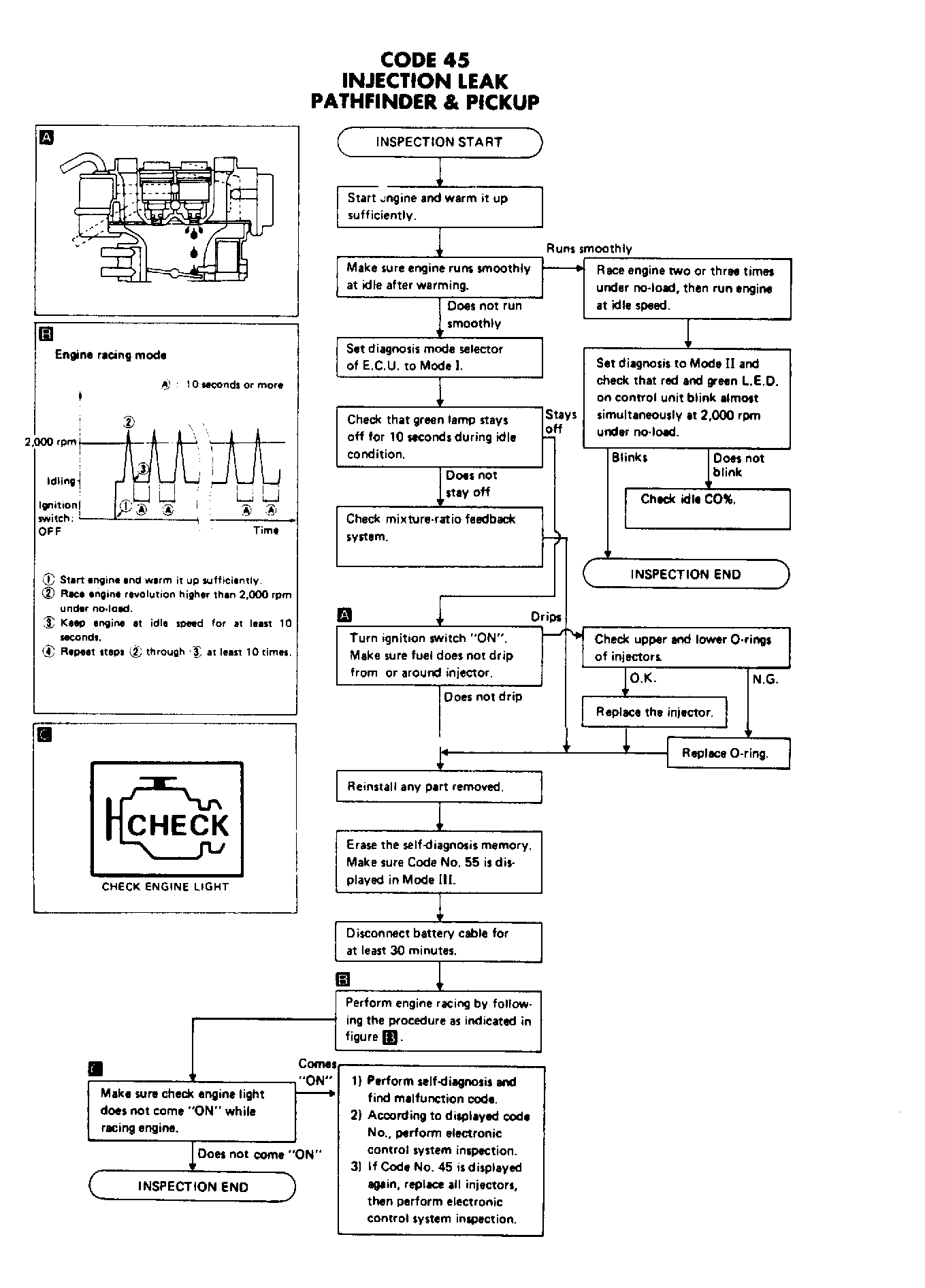

Fig 1: Code 45 Pathfinder & Pickup

G121283

Courtesy of NISSAN MOTOR CO., U.S.A.
