Home >> Nissan-Datsun >> 1989 >> Pathfinder SE, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Tests W/Codes >> Code Charts >> Code 33, 4-CYL O2 Sensor

Code 33, 4-CYL O2 Sensor

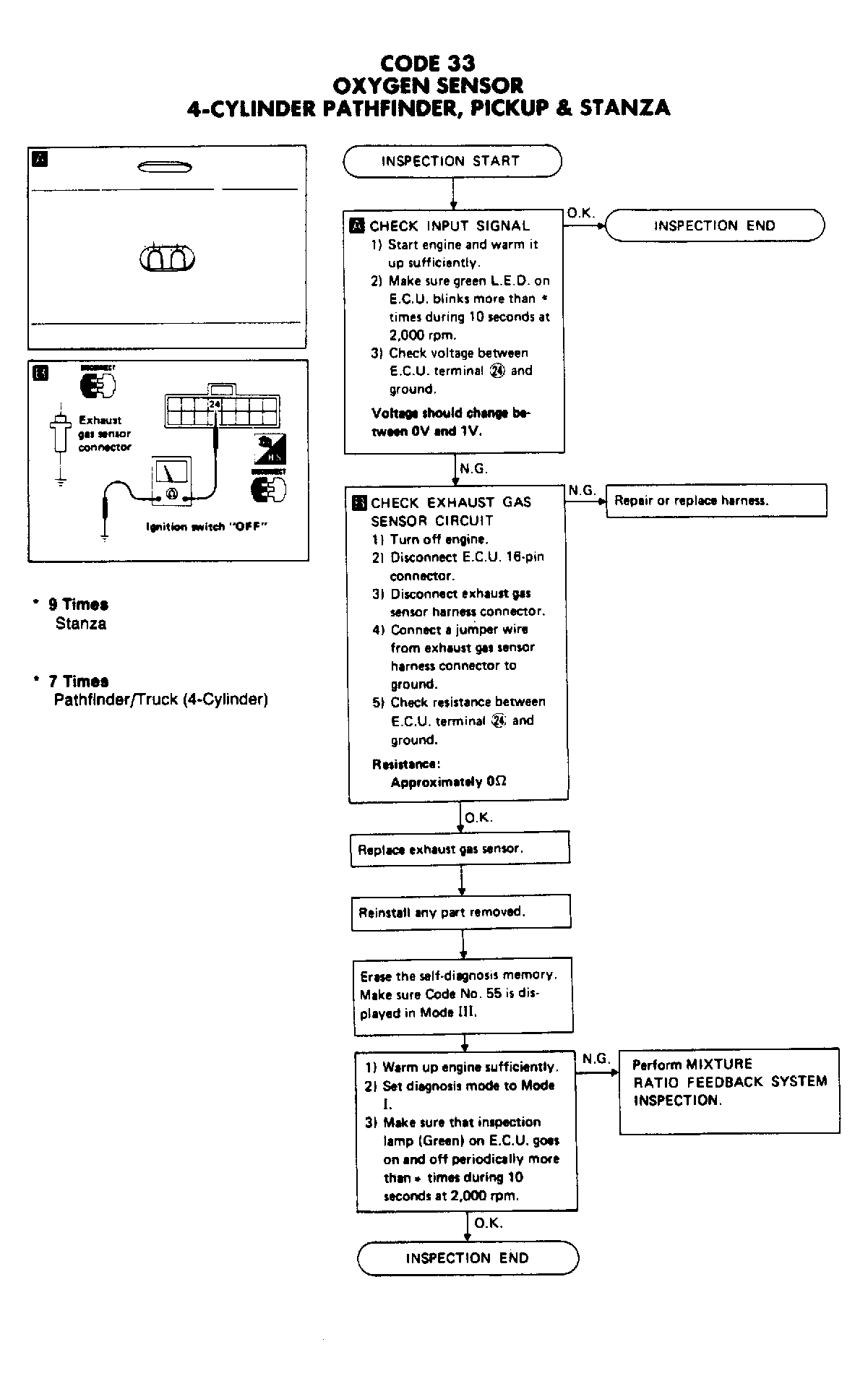

Fig 1: Code 33 Pathfinder, Pickup 4-Cylinder

G121260

Courtesy of NISSAN MOTOR CO., U.S.A.
