Code 32 EGR Sensor

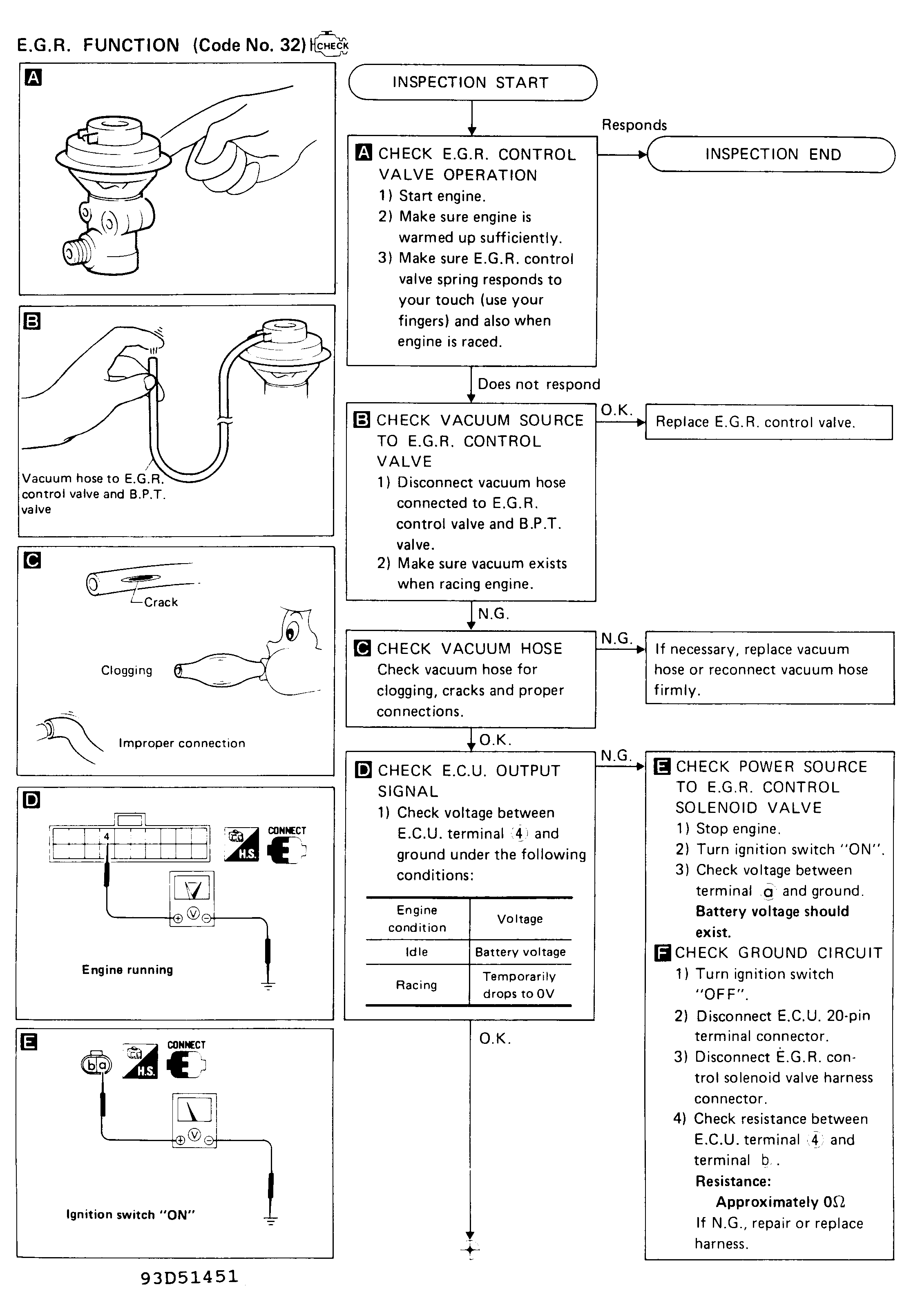

Fig 1: Code 32 V6 Pathfinder, Pickup (1 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

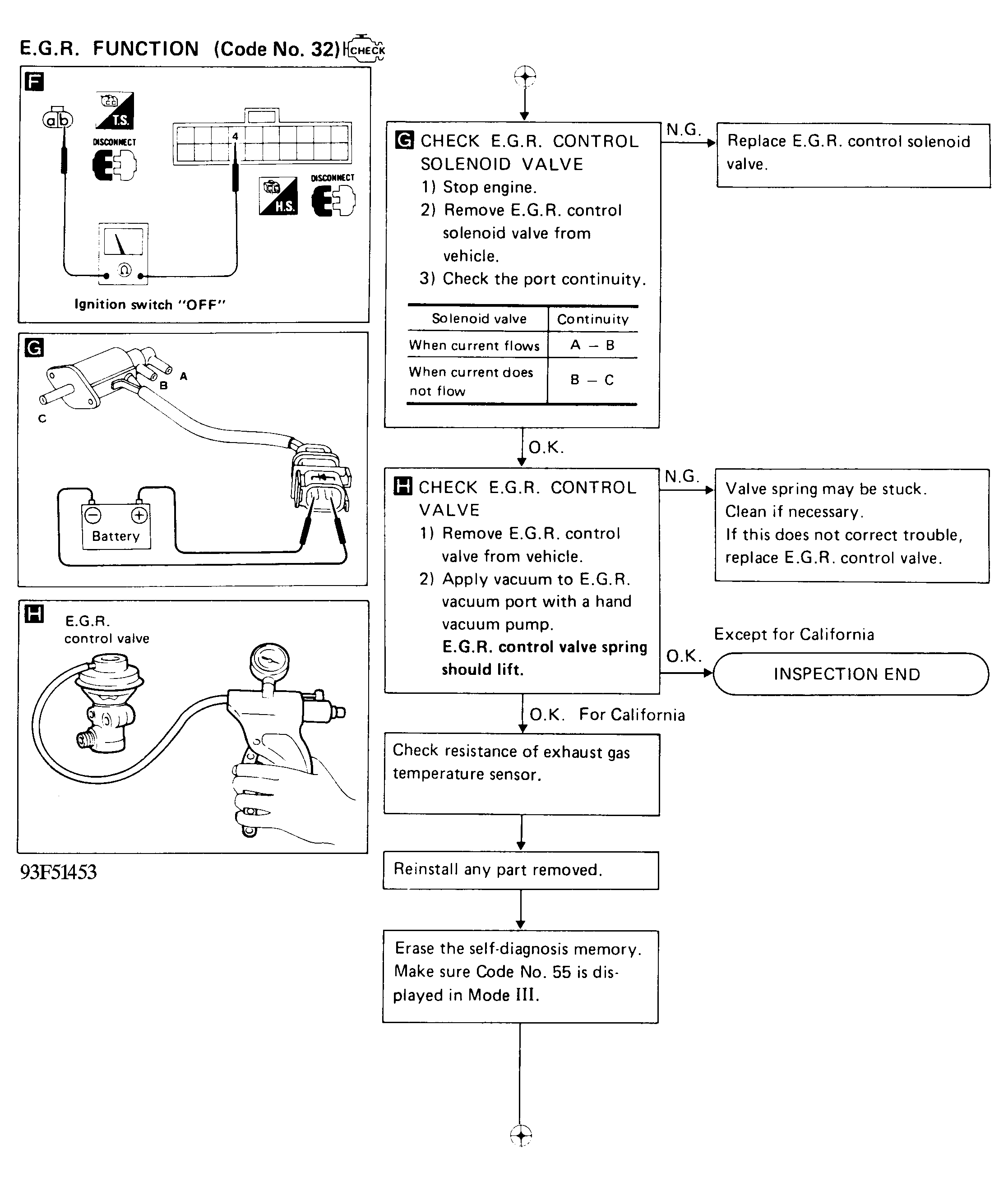

Fig 2: Code 32 V6 Pathfinder, Pickup (2 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

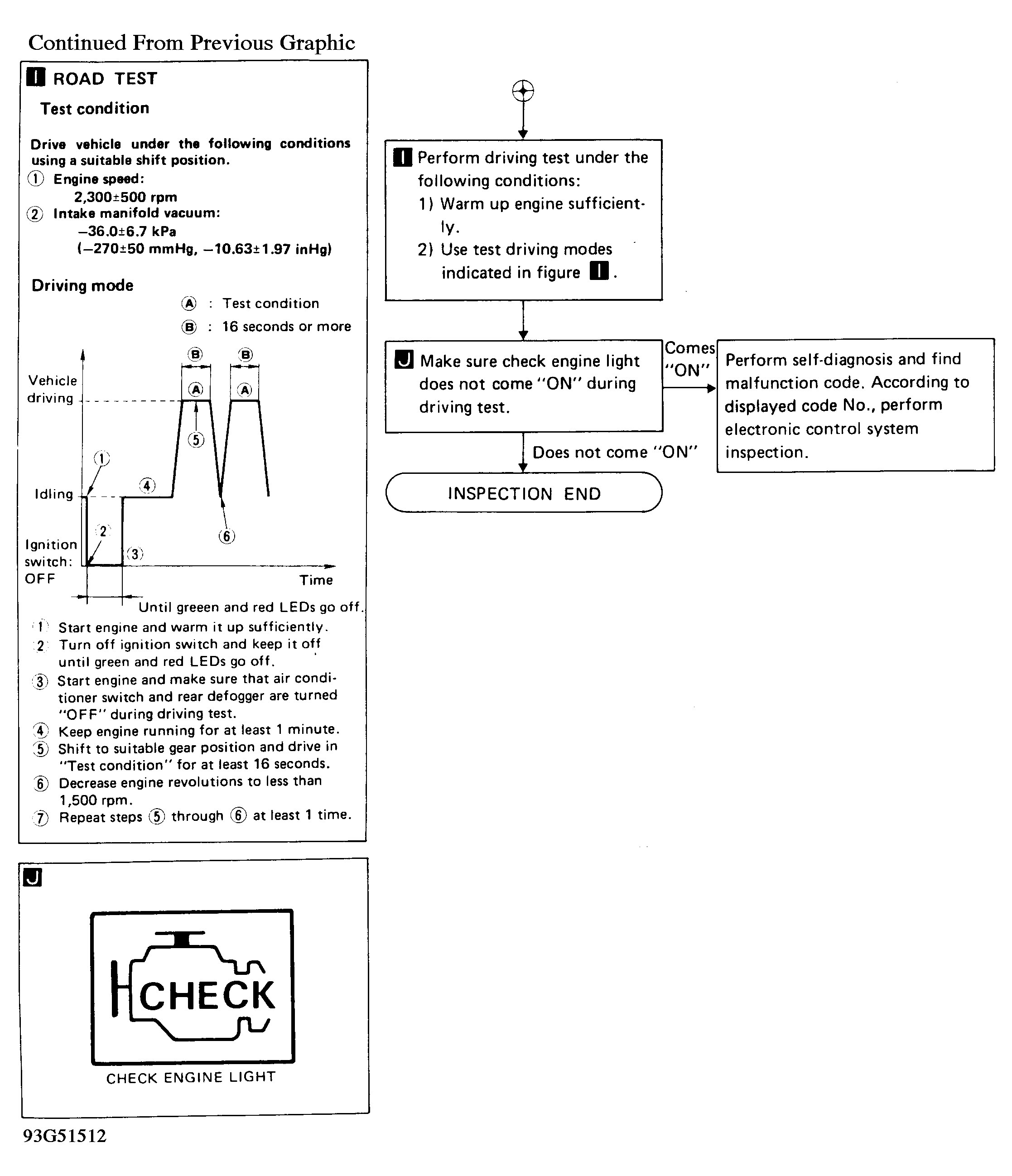

Fig 3: Code 32 V6 Pathfinder, Pickup (3 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

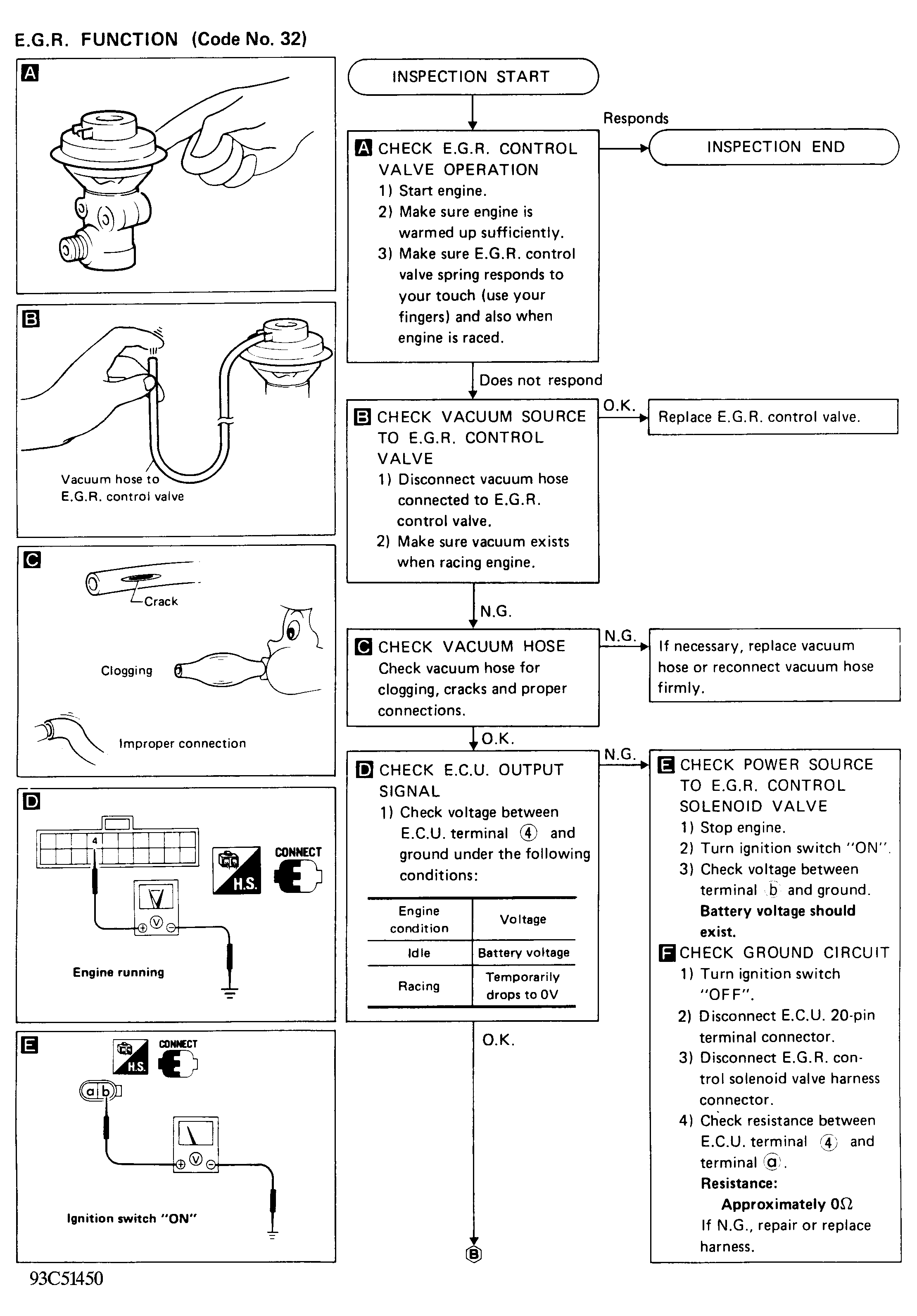

Fig 4: Code 32 4-CYL Pathfinder, Pickup (1 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

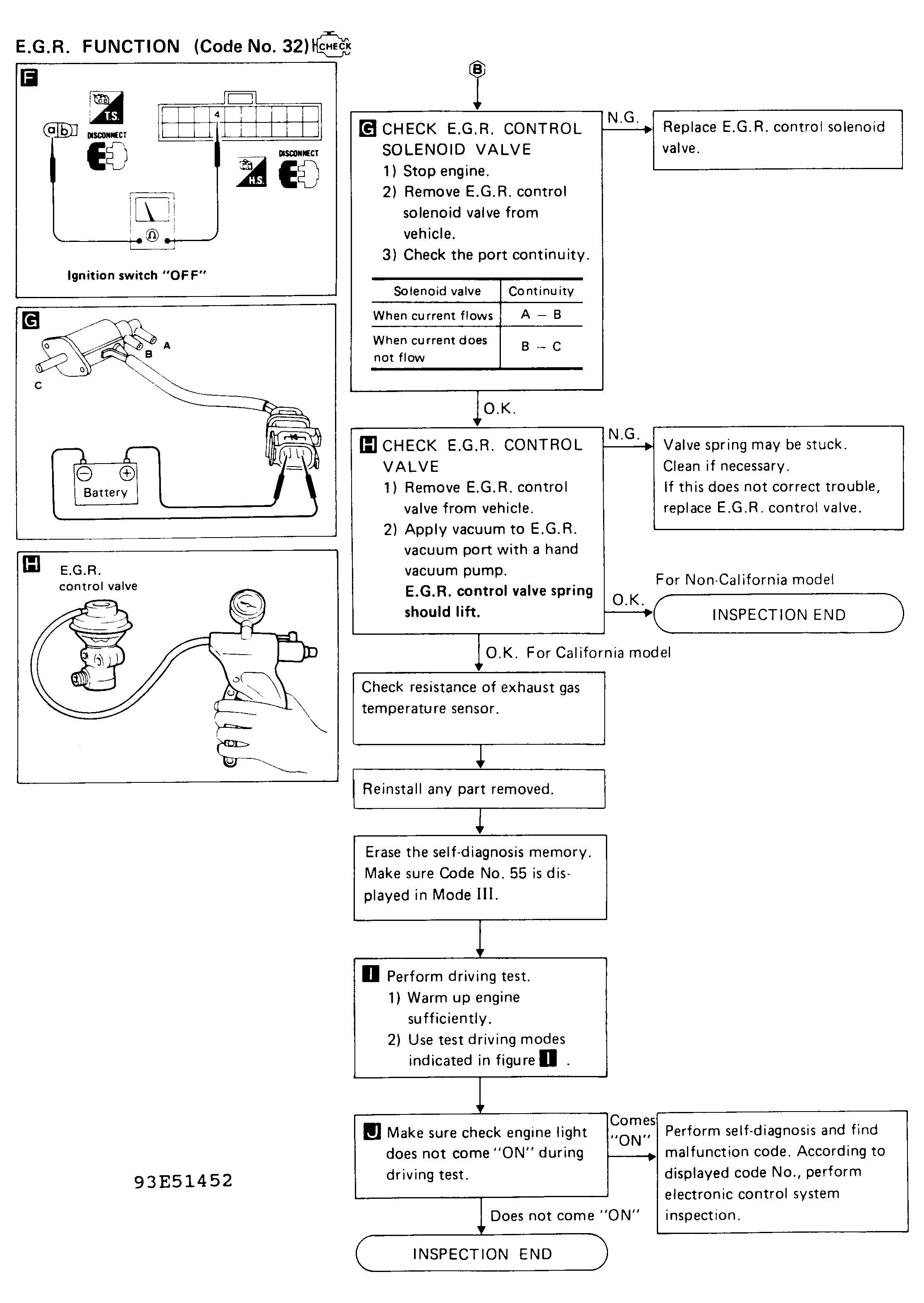

Fig 5: Code 32 4-CYL Pathfinder, Pickup (2 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

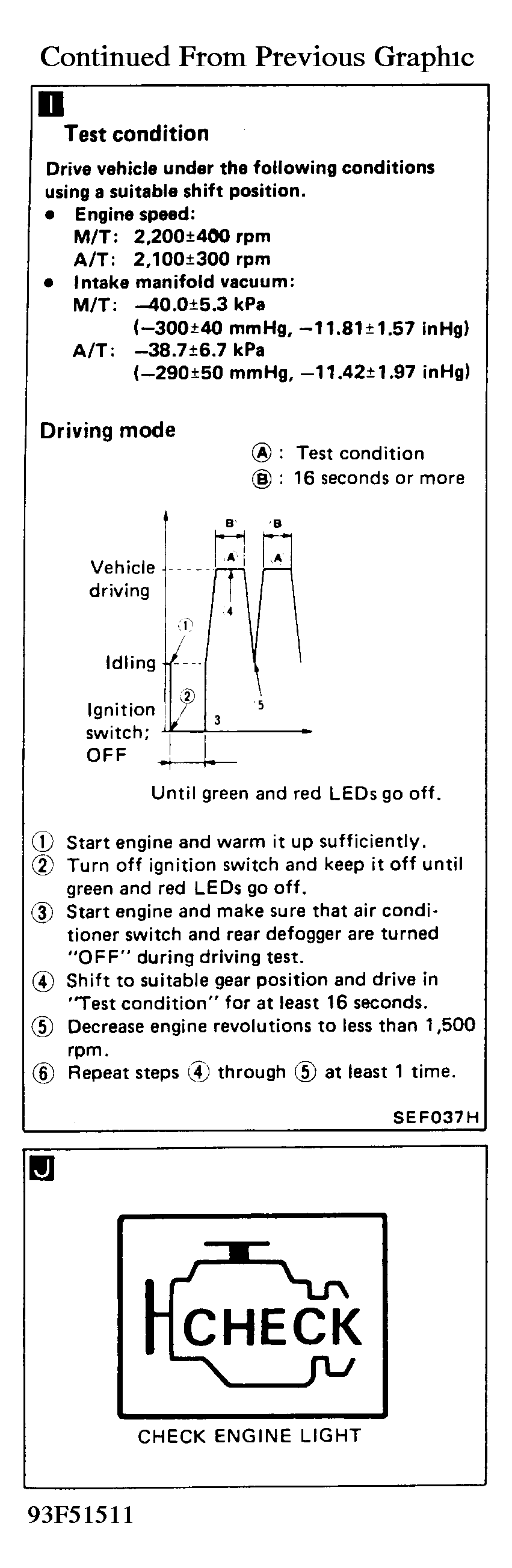

Fig 6: Code 32 4-CYL Pathfinder, Pickup (3 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
